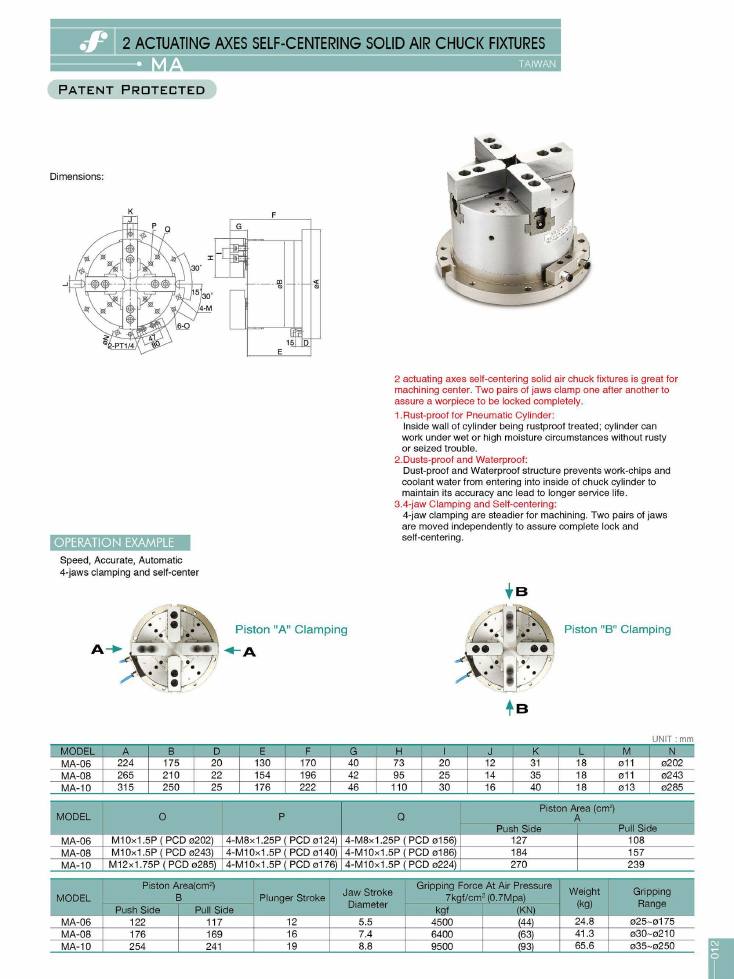

Frejoth accessory catalogue · Page 12
2 Actuating Axes Self-Centering Solid Air Chuck Fixtures
Models on this page
MA-06MA-08MA-10
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
2 Actuating Axes Self-Centering Solid Air Chuck Fixtures
MA · Taiwan
- Patent protected.
- 2 actuating axes self-centering solid air chuck fixtures is great for machining center. Two pairs of jaws clamp one after another to assure a workpiece to be locked completely.
- 1. Rust-proof for Pneumatic Cylinder: Inside wall of cylinder being rustproof treated; cylinder can work under wet or high moisture circumstances without rusty or seized trouble.
- 2. Dusts-proof and Waterproof: Dust-proof and Waterproof structure prevents work-chips and coolant water from entering into inside of chuck cylinder to maintain its accuracy and lead to longer service life.
- 3. 4-jaw Clamping and Self-centering: 4-jaw clamping are steadier for machining. Two pairs of jaws are moved independently to assure complete lock and self-centering.
| model | a | b | d | e | f | g | h | i | j | k | l | m | n |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MA-06 | 224 | 175 | 20 | 130 | 170 | 40 | 73 | 20 | 12 | 31 | 18 | ø11 | ø202 |
| MA-08 | 265 | 210 | 22 | 154 | 196 | 42 | 95 | 25 | 14 | 35 | 18 | ø11 | ø243 |
| MA-10 | 315 | 250 | 25 | 176 | 222 | 46 | 110 | 30 | 16 | 40 | 18 | ø13 | ø285 |
| model | o | p | q | piston_area_a_push_side_cm2 | piston_area_a_pull_side_cm2 |
|---|---|---|---|---|---|
| MA-06 | M10×1.5P ( PCD ø202) | 4-M8×1.25P ( PCD ø124) | 4-M8×1.25P ( PCD ø156) | 127 | 108 |
| MA-08 | M10×1.5P ( PCD ø243) | 4-M10×1.5P ( PCD ø140) | 4-M10×1.5P ( PCD ø186) | 184 | 157 |
| MA-10 | M12×1.75P ( PCD ø285) | 4-M10×1.5P ( PCD ø176) | 4-M10×1.5P ( PCD ø224) | 270 | 239 |
| model | piston_area_b_push_side_cm2 | piston_area_b_pull_side_cm2 | plunger_stroke | jaw_stroke_diameter | gripping_force_at_7kgf_cm2_kgf | gripping_force_at_7kgf_cm2_kn | weight_kg | gripping_range |
|---|---|---|---|---|---|---|---|---|
| MA-06 | 122 | 117 | 12 | 5.5 | 4500 | 44 | 24.8 | ø25~ø175 |
| MA-08 | 176 | 169 | 16 | 7.4 | 6400 | 63 | 41.3 | ø30~ø210 |
| MA-10 | 254 | 241 | 19 | 8.8 | 9500 | 93 | 65.6 | ø35~ø250 |
| Code | Model |
|---|---|
| on request | MA-06 |
| on request | MA-08 |
| on request | MA-10 |
Operation example panel: 'Speed, Accurate, Automatic / 4-jaws clamping and self-center', illustrating Piston "A" Clamping and Piston "B" Clamping. Dimension drawing is annotated 2-PT1/4, 4-M, 6-O, 47, 80, 15, 30°.
