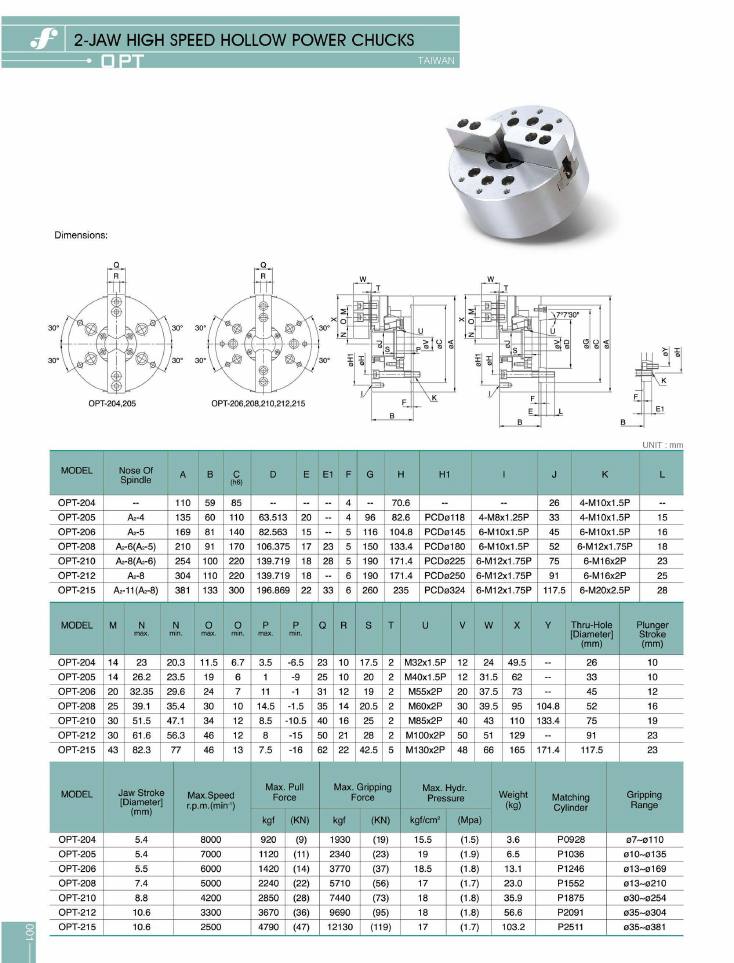

Frejoth accessory catalogue · Page 1
2-Jaw High Speed Hollow Power Chucks
Models on this page
OPT-204OPT-205OPT-206OPT-208OPT-210OPT-212OPT-215
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
2-Jaw High Speed Hollow Power Chucks
OPT · Taiwan
| model | nose_of_spindle | a | b | c_h6 | d | e | e1 | f | g | h | h1 | i | j | k | l |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPT-204 | — | 110 | 59 | 85 | — | — | — | 4 | — | 70.6 | — | — | 26 | 4-M10x1.5P | — |
| OPT-205 | A2-4 | 135 | 60 | 110 | 63.513 | 20 | — | 4 | 96 | 82.6 | PCDø118 | 4-M8x1.25P | 33 | 4-M10x1.5P | 15 |
| OPT-206 | A2-5 | 169 | 81 | 140 | 82.563 | 15 | — | 5 | 116 | 104.8 | PCDø145 | 6-M10x1.5P | 45 | 6-M10x1.5P | 16 |
| OPT-208 | A2-6(A2-5) | 210 | 91 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | PCDø180 | 6-M10x1.5P | 52 | 6-M12x1.75P | 18 |
| OPT-210 | A2-8(A2-6) | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | PCDø225 | 6-M12x1.75P | 75 | 6-M16x2P | 23 |
| OPT-212 | A2-8 | 304 | 110 | 220 | 139.719 | 18 | — | 6 | 190 | 171.4 | PCDø250 | 6-M12x1.75P | 91 | 6-M16x2P | 25 |
| OPT-215 | A2-11(A2-8) | 381 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | PCDø324 | 6-M12x1.75P | 117.5 | 6-M20x2.5P | 28 |
| model | m | n_max | n_min | o_max | o_min | p_max | p_min | q | r | s | t | u | v | w | x | y | thru_hole_diameter | plunger_stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPT-204 | 14 | 23 | 20.3 | 11.5 | 6.7 | 3.5 | -6.5 | 23 | 10 | 17.5 | 2 | M32x1.5P | 12 | 24 | 49.5 | — | 26 | 10 |
| OPT-205 | 14 | 26.2 | 23.5 | 19 | 6 | 1 | -9 | 25 | 10 | 20 | 2 | M40x1.5P | 12 | 31.5 | 62 | — | 33 | 10 |
| OPT-206 | 20 | 32.35 | 29.6 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | 2 | M55x2P | 20 | 37.5 | 73 | — | 45 | 12 |
| OPT-208 | 25 | 39.1 | 35.4 | 30 | 10 | 14.5 | -1.5 | 35 | 14 | 20.5 | 2 | M60x2P | 30 | 39.5 | 95 | 104.8 | 52 | 16 |
| OPT-210 | 30 | 51.5 | 47.1 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M85x2P | 40 | 43 | 110 | 133.4 | 75 | 19 |
| OPT-212 | 30 | 61.6 | 56.3 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | 2 | M100x2P | 50 | 51 | 129 | — | 91 | 23 |
| OPT-215 | 43 | 82.3 | 77 | 46 | 13 | 7.5 | -16 | 62 | 22 | 42.5 | 5 | M130x2P | 48 | 66 | 165 | 171.4 | 117.5 | 23 |
| model | jaw_stroke_diameter_mm | max_speed_rpm | max_pull_force_kgf | max_pull_force_kn | max_gripping_force_kgf | max_gripping_force_kn | max_hydr_pressure_kgf_cm2 | max_hydr_pressure_mpa | weight_kg | matching_cylinder | gripping_range |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OPT-204 | 5.4 | 8000 | 920 | 9 | 1930 | 19 | 15.5 | 1.5 | 3.6 | P0928 | ø7~ø110 |
| OPT-205 | 5.4 | 7000 | 1120 | 11 | 2340 | 23 | 19 | 1.9 | 6.5 | P1036 | ø10~ø135 |
| OPT-206 | 5.5 | 6000 | 1420 | 14 | 3770 | 37 | 18.5 | 1.8 | 13.1 | P1246 | ø13~ø169 |
| OPT-208 | 7.4 | 5000 | 2240 | 22 | 5710 | 56 | 17 | 1.7 | 23 | P1552 | ø13~ø210 |
| OPT-210 | 8.8 | 4200 | 2850 | 28 | 7440 | 73 | 18 | 1.8 | 35.9 | P1875 | ø30~ø254 |
| OPT-212 | 10.6 | 3300 | 3670 | 36 | 9690 | 95 | 18 | 1.8 | 56.6 | P2091 | ø35~ø304 |
| OPT-215 | 10.6 | 2500 | 4790 | 47 | 12130 | 119 | 17 | 1.7 | 103.2 | P2511 | ø35~ø381 |
| Code | Model |
|---|---|
| on request | OPT-204 |
| on request | OPT-205 |
| on request | OPT-206 |
| on request | OPT-208 |
| on request | OPT-210 |
| on request | OPT-212 |
| on request | OPT-215 |
Dimension drawings shown for two body styles: OPT-204,205 and OPT-206,208,210,212,215.
