2-Jaw Solid Power Chucks
Models on this page
CLT-06CLT-08CLT-10CLT-12
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
2-Jaw Solid Power Chucks
CLT · Taiwan
| model | nose_of_spindle | a | b | c_h6 | d | e | e1 | f | g | h | j |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CLT-06 | A2-5 | 165 | 74 | 140 | 82.563 | 15 | — | 5 | 116 | 104.8 | 21 |
| CLT-08 | A2-6(A2-5) | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 25 |
| CLT-10 | A2-8(A2-6) | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 |
| CLT-12 | A2-8 | 304 | 106 | 220 | 139.719 | 18 | — | 6 | 190 | 171.4 | 34 |
| model | k | l | m | n_max | n_min | o_max | o_min | p_max | p_min | q | r | s |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLT-06 | 6-M10x1.5P | 19 | 20 | 37.8 | 33.25 | 15.1 | 9.1 | 101.5 | 81.5 | 31 | 12 | 36 |
| CLT-08 | 6-M12x1.75P | 18 | 25 | 46.3 | 41.9 | 22.1 | 10.1 | 127 | 106 | 35 | 14 | 36 |
| CLT-10 | 6-M16x2P | 25 | 30 | 51.4 | 47 | 30.6 | 9.6 | 158 | 133 | 40 | 16 | 36 |
| CLT-12 | 6-M16x2P | 20 | 30 | 60.7 | 55.45 | 48.6 | 12.6 | 163 | 133 | 50 | 18 | 36 |
| model | t | u | v | w | x | y | plunger_stroke_mm | jaw_stroke_diameter_mm | max_speed_rpm |
|---|---|---|---|---|---|---|---|---|---|
| CLT-06 | 4 | M16x2P | 34 | 39 | 73 | — | 20 | 8.5 | 5000 |
| CLT-08 | 5 | M20x2.5P | 38 | 42 | 95 | 104.8 | 21 | 8.8 | 4000 |
| CLT-10 | 5 | M20x2.5P | 45 | 46 | 110 | 133.4 | 25 | 8.8 | 3500 |
| CLT-12 | 5 | M20x2.5P | 50 | 54 | 129 | — | 30 | 10.5 | 3000 |
| model | max_pull_force_kgf | max_pull_force_kn | max_gripping_force_kgf | max_gripping_force_kn | max_hydr_pressure_kgf_cm2 | max_hydr_pressure_mpa | weight_kg | matching_cylinder | gripping_range |
|---|---|---|---|---|---|---|---|---|---|
| CLT-06 | 1220 | 12 | 3460 | 34 | 17 | 1.7 | 11.1 | L1020(L1020R) | ø9~ø165 |
| CLT-08 | 1630 | 16 | 4990 | 49 | 16 | 1.6 | 21.3 | L1225(L1225R) | ø12~ø210 |
| CLT-10 | 1930 | 19 | 7140 | 70 | 19 | 1.9 | 32.6 | L1225(L1225R) | ø15~ø254 |
| CLT-12 | 2750 | 27 | 10300 | 101 | 20 | 2 | 57 | L1530(L1530R) | ø20~ø304 |
| Code | Model |
|---|---|
| on request | CLT-06 |
| on request | CLT-08 |
| on request | CLT-10 |
| on request | CLT-12 |

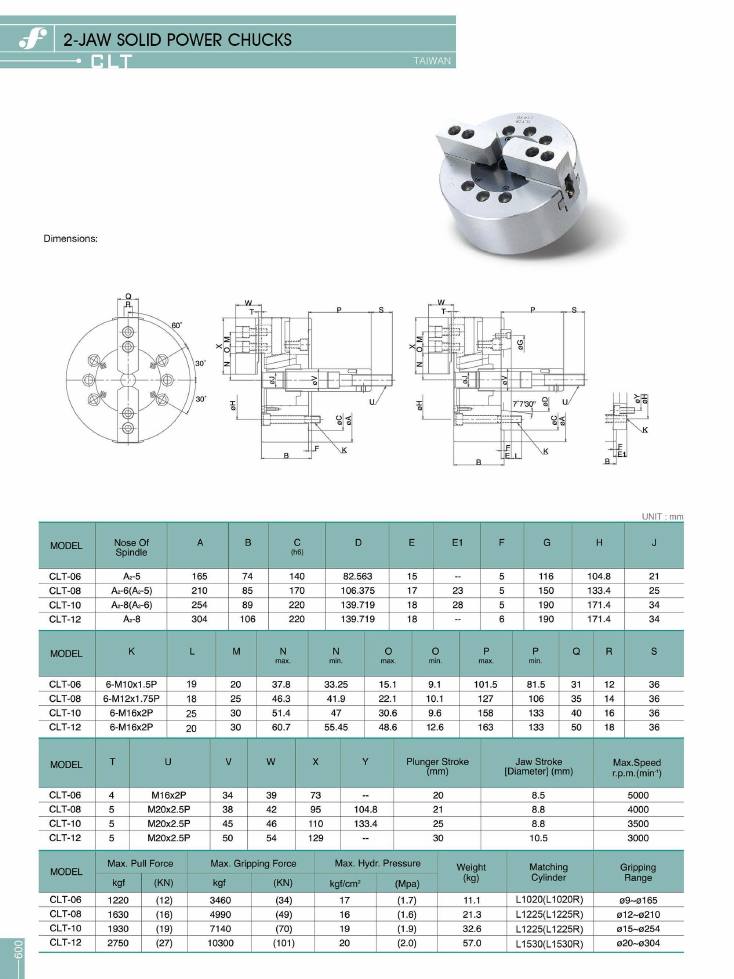

Dimension drawings show the chuck face plus two sectional body views and a jaw detail.
