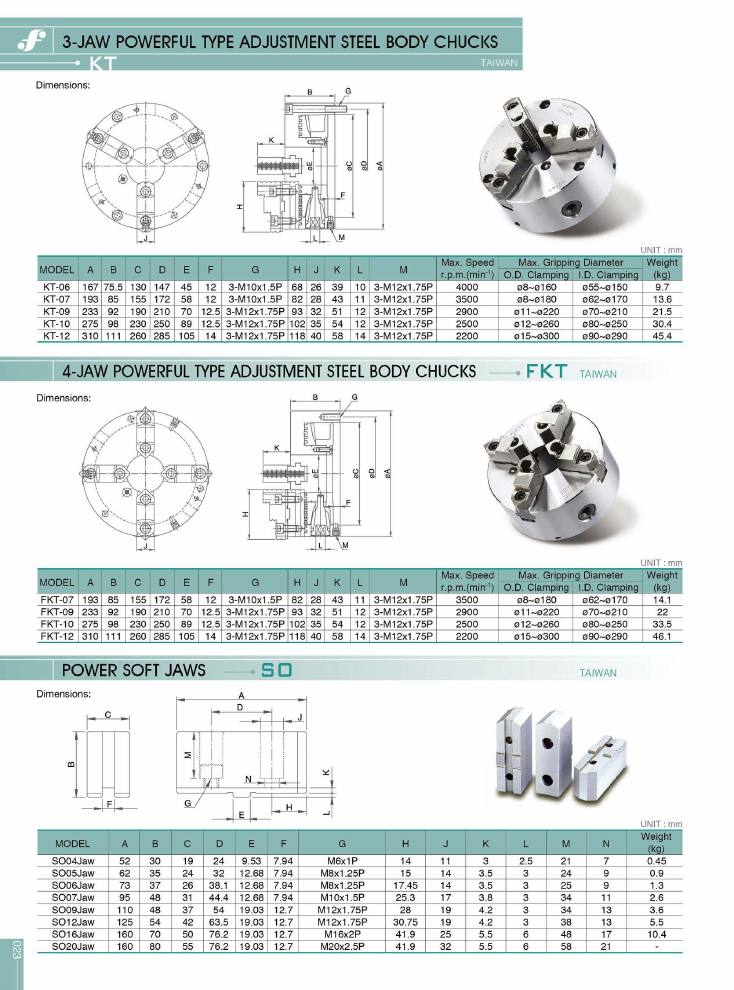

Frejoth accessory catalogue · Page 23
3-jaw / 4-jaw powerful type adjustment steel body chucks / Power soft jaws
Models on this page
FKT-07FKT-09FKT-10FKT-12KT-06KT-07KT-09KT-10KT-12SO04JawSO05JawSO06JawSO07JawSO09JawSO12JawSO16JawSO20Jaw
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
3-Jaw Powerful Type Adjustment Steel Body Chucks
KT · Taiwan
| model | a | b | c | d | e | f | g | h | j | k | l | m | max_speed_rpm_min_1 | max_gripping_diameter_od_clamping | max_gripping_diameter_id_clamping | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KT-06 | 167 | 75.5 | 130 | 147 | 45 | 12 | 3-M10x1.5P | 68 | 26 | 39 | 10 | 3-M12x1.75P | 4000 | ø8~ø160 | ø55~ø150 | 9.7 |
| KT-07 | 193 | 85 | 155 | 172 | 58 | 12 | 3-M10x1.5P | 82 | 28 | 43 | 11 | 3-M12x1.75P | 3500 | ø8~ø180 | ø62~ø170 | 13.6 |
| KT-09 | 233 | 92 | 190 | 210 | 70 | 12.5 | 3-M12x1.75P | 93 | 32 | 51 | 12 | 3-M12x1.75P | 2900 | ø11~ø220 | ø70~ø210 | 21.5 |
| KT-10 | 275 | 98 | 230 | 250 | 89 | 12.5 | 3-M12x1.75P | 102 | 35 | 54 | 12 | 3-M12x1.75P | 2500 | ø12~ø260 | ø80~ø250 | 30.4 |
| KT-12 | 310 | 111 | 260 | 285 | 105 | 14 | 3-M12x1.75P | 118 | 40 | 58 | 14 | 3-M12x1.75P | 2200 | ø15~ø300 | ø90~ø290 | 45.4 |
| Code | Model |
|---|---|
| on request | KT-06 |
| on request | KT-07 |
| on request | KT-09 |
| on request | KT-10 |
| on request | KT-12 |
4-Jaw Powerful Type Adjustment Steel Body Chucks
FKT · Taiwan
| model | a | b | c | d | e | f | g | h | j | k | l | m | max_speed_rpm_min_1 | max_gripping_diameter_od_clamping | max_gripping_diameter_id_clamping | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FKT-07 | 193 | 85 | 155 | 172 | 58 | 12 | 3-M10x1.5P | 82 | 28 | 43 | 11 | 3-M12x1.75P | 3500 | ø8~ø180 | ø62~ø170 | 14.1 |
| FKT-09 | 233 | 92 | 190 | 210 | 70 | 12.5 | 3-M12x1.75P | 93 | 32 | 51 | 12 | 3-M12x1.75P | 2900 | ø11~ø220 | ø70~ø210 | 22 |
| FKT-10 | 275 | 98 | 230 | 250 | 89 | 12.5 | 3-M12x1.75P | 102 | 35 | 54 | 12 | 3-M12x1.75P | 2500 | ø12~ø260 | ø80~ø250 | 33.5 |
| FKT-12 | 310 | 111 | 260 | 285 | 105 | 14 | 3-M12x1.75P | 118 | 40 | 58 | 14 | 3-M12x1.75P | 2200 | ø15~ø300 | ø90~ø290 | 46.1 |
| Code | Model |
|---|---|
| on request | FKT-07 |
| on request | FKT-09 |
| on request | FKT-10 |
| on request | FKT-12 |
Power Soft Jaws
SO · Taiwan
| model | a | b | c | d | e | f | g | h | j | k | l | m | n | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SO04Jaw | 52 | 30 | 19 | 24 | 9.53 | 7.94 | M6x1P | 14 | 11 | 3 | 2.5 | 21 | 7 | 0.45 |
| SO05Jaw | 62 | 35 | 24 | 32 | 12.68 | 7.94 | M8x1.25P | 15 | 14 | 3.5 | 3 | 24 | 9 | 0.9 |
| SO06Jaw | 73 | 37 | 26 | 38.1 | 12.68 | 7.94 | M8x1.25P | 17.45 | 14 | 3.5 | 3 | 25 | 9 | 1.3 |
| SO07Jaw | 95 | 48 | 31 | 44.4 | 12.68 | 7.94 | M10x1.5P | 25.3 | 17 | 3.8 | 3 | 34 | 11 | 2.6 |
| SO09Jaw | 110 | 48 | 37 | 54 | 19.03 | 12.7 | M12x1.75P | 28 | 19 | 4.2 | 3 | 34 | 13 | 3.6 |
| SO12Jaw | 125 | 54 | 42 | 63.5 | 19.03 | 12.7 | M12x1.75P | 30.75 | 19 | 4.2 | 3 | 38 | 13 | 5.5 |
| SO16Jaw | 160 | 70 | 50 | 76.2 | 19.03 | 12.7 | M16x2P | 41.9 | 25 | 5.5 | 6 | 48 | 17 | 10.4 |
| SO20Jaw | 160 | 80 | 55 | 76.2 | 19.03 | 12.7 | M20x2.5P | 41.9 | 32 | 5.5 | 6 | 58 | 21 | — |
| Code | Model |
|---|---|
| on request | SO04Jaw |
| on request | SO05Jaw |
| on request | SO06Jaw |
| on request | SO07Jaw |
| on request | SO09Jaw |
| on request | SO12Jaw |
| on request | SO16Jaw |
| on request | SO20Jaw |
