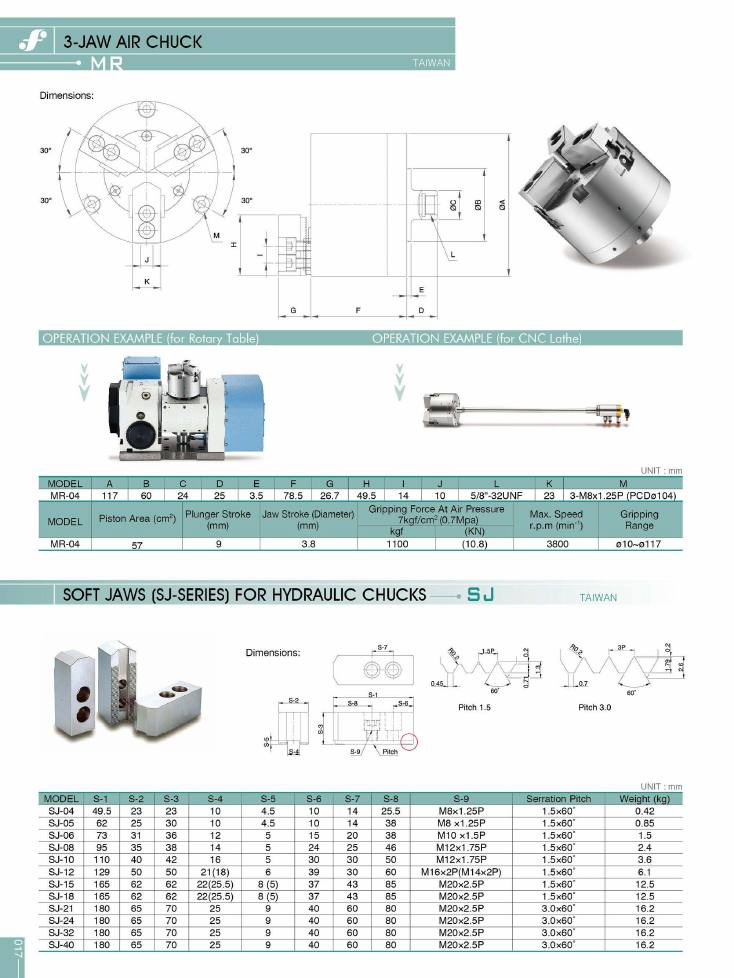

3-Jaw Air Chuck
Models on this page
MR-04SJ-04SJ-05SJ-06SJ-08SJ-10SJ-12SJ-15SJ-18SJ-21SJ-24SJ-32SJ-40
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
3-Jaw Air Chuck
MR · Taiwan
| model | a | b | c | d | e | f | g | h | i | j | l | k | m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MR-04 | 117 | 60 | 24 | 25 | 3.5 | 78.5 | 26.7 | 49.5 | 14 | 10 | 5/8"-32UNF | 23 | 3-M8x1.25P (PCDø104) |
| model | piston_area_cm2 | plunger_stroke_mm | jaw_stroke_diameter_mm | gripping_force_at_air_pressure_7kgf_cm2_kgf | gripping_force_at_air_pressure_7kgf_cm2_kn | max_speed_rpm | gripping_range |
|---|---|---|---|---|---|---|---|
| MR-04 | 57 | 9 | 3.8 | 1100 | 10.8 | 3800 | ø10~ø117 |
| Code | Model |
|---|---|
| on request | MR-04 |
Operation example panels show use on a rotary table and on a CNC lathe.
Soft Jaws (SJ-Series) for Hydraulic Chucks
SJ · Taiwan
| model | s_1 | s_2 | s_3 | s_4 | s_5 | s_6 | s_7 | s_8 | s_9 | serration_pitch | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SJ-04 | 49.5 | 23 | 23 | 10 | 4.5 | 10 | 14 | 25.5 | M8x1.25P | 1.5x60° | 0.42 |
| SJ-05 | 62 | 25 | 30 | 10 | 4.5 | 10 | 14 | 38 | M8x1.25P | 1.5x60° | 0.85 |
| SJ-06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | M10x1.5P | 1.5x60° | 1.5 |
| SJ-08 | 95 | 35 | 38 | 14 | 5 | 24 | 25 | 46 | M12x1.75P | 1.5x60° | 2.4 |
| SJ-10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | M12x1.75P | 1.5x60° | 3.6 |
| SJ-12 | 129 | 50 | 50 | 21(18) | 6 | 39 | 30 | 60 | M16x2P(M14x2P) | 1.5x60° | 6.1 |
| SJ-15 | 165 | 62 | 62 | 22(25.5) | 8 (5) | 37 | 43 | 85 | M20x2.5P | 1.5x60° | 12.5 |
| SJ-18 | 165 | 62 | 62 | 22(25.5) | 8 (5) | 37 | 43 | 85 | M20x2.5P | 1.5x60° | 12.5 |
| SJ-21 | 180 | 65 | 70 | 25 | 9 | 40 | 60 | 80 | M20x2.5P | 3.0x60° | 16.2 |
| SJ-24 | 180 | 65 | 70 | 25 | 9 | 40 | 60 | 80 | M20x2.5P | 3.0x60° | 16.2 |
| SJ-32 | 180 | 65 | 70 | 25 | 9 | 40 | 60 | 80 | M20x2.5P | 3.0x60° | 16.2 |
| SJ-40 | 180 | 65 | 70 | 25 | 9 | 40 | 60 | 80 | M20x2.5P | 3.0x60° | 16.2 |
| Code | Model |
|---|---|
| on request | SJ-04 |
| on request | SJ-05 |
| on request | SJ-06 |
| on request | SJ-08 |
| on request | SJ-10 |
| on request | SJ-12 |
| on request | SJ-15 |
| on request | SJ-18 |
| on request | SJ-21 |
| on request | SJ-24 |
| on request | SJ-32 |
| on request | SJ-40 |
Serration pitch detail drawings shown for Pitch 1.5 and Pitch 3.0.
