3-Jaw High Speed Hollow Power Chucks
Models on this page
OP-204OP-205OP-206OP-208OP-210OP-210BHOP-212OP-212BHOP-215OP-218OP-221OP-224
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
3-Jaw High Speed Hollow Power Chucks
OP · Taiwan
- BH: larger through hole
- OP-221 and OP-224 are with larger through hole
| model | nose_of_spindle | a | b | c_h6 | d | e | e1 | f | g | h | h1 | i1 | h2 | i2 | h3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OP-204 | — | 110 | 59 | 85 | — | — | — | 4 | — | 70.6 | — | — | — | — | — |
| OP-205 | A2-4 | 135 | 60 | 110 | 63.513 | 20 | — | 4 | 96 | 82.6 | PCDø118 | 3-M8x1.25P | — | — | — |
| OP-206 | A2-5 | 169 | 81 | 140 | 82.563 | 15 | — | 5 | 116 | 104.8 | PCDø145 | 6-M10x1.5P | — | — | — |
| OP-208 | A2-6(A2-5) | 210 | 91 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | PCDø180 | 6-M10x1.5P | — | — | — |
| OP-210 | A2-8(A2-6) | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | PCDø225 | 6-M12x1.75P | — | — | — |
| OP-212 | A2-8 | 304 | 110 | 220 | 139.719 | 18 | — | 6 | 190 | 171.4 | PCDø250 | 6-M12x1.75P | — | — | — |
| OP-215 | A2-11(A2-8) | 381 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | — | — | PCDø230 | 3-M12x1.75P | PCDø300 |
| OP-218 | A2-11(A2-8) | 450 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | PCDø230 | 3-M12x1.75P | PCDø300 | 3-M12x1.75P | PCDø380 |
| OP-221 | A2-15(A2-11) | 530 | 140 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | PCDø300 | 3-M16x2P | PCDø380 | 3-M16x2P | PCDø460 |
| OP-224 | A2-20(A2-15) | 610 | 149 | 520 | 412.745 | 27 | 42 | 6 | 463.6 | 463.6 | PCDø350 | 3-M16x2P | PCDø450 | 3-M16x2P | PCDø550 |
| OP-210BH | A2-8(A2-6) | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | — | — | PCDø160 | 3-M12x1.75P | PCDø220 |
| OP-212BH | A2-8 | 304 | 108 | 220 | 139.719 | 18 | — | 6 | 190 | 171.4 | — | — | PCDø170 | 3-M16x2P | PCDø260 |
| model | i3 | j | k | l | m | n_max | n_min | o_max | o_min | p_max | p_min | q | r | s | t | u | v | w | x |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OP-204 | — | 26 | 3-M10x1.5P | — | 14 | 23 | 20.3 | 11.5 | 6.7 | 3.5 | -6.5 | 23 | 10 | 17.5 | 2 | M32x1.5P | 12 | 24 | 49.5 |
| OP-205 | — | 33 | 3-M10x1.5P | 15 | 14 | 26.2 | 23.5 | 19 | 6 | 1 | -9 | 25 | 10 | 20 | 2 | M40x1.5P | 12 | 31.5 | 62 |
| OP-206 | — | 45 | 6-M10x1.5P | 16 | 20 | 32.35 | 29.6 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | 2 | M55x2P | 20 | 37.5 | 73 |
| OP-208 | — | 52 | 6-M12x1.75P | 18 | 25 | 39.1 | 35.4 | 30 | 10 | 14.5 | -1.5 | 35 | 14 | 20.5 | 2 | M60x2P | 30 | 39.5 | 95 |
| OP-210 | — | 75 | 6-M16x2P | 23 | 30 | 51.5 | 47.1 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M85x2P | 40 | 43 | 110 |
| OP-212 | — | 91 | 6-M16x2P | 25 | 30 | 61.6 | 56.3 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | 2 | M100x2P | 50 | 51 | 129 |
| OP-215 | 3-M12x1.75P | 117.5 | 6-M20x2.5P | 28 | 43 | 82.3 | 77 | 46 | 13 | 7.5 | -16 | 62 | 22 | 42.5 | 5 | M130x2P | 48 | 66.5 | 165 |
| OP-218 | 3-M12x1.75P | 120 | 6-M20x2.5P | 28 | 43 | 83.8 | 78.5 | 78 | 18 | 7.5 | -16 | 62 | 22 | 42.5 | 5 | M130x2P | 48 | 66.5 | 165 |
| OP-221 | 3-M16x2P | 180 | 6-M24x3P | 35 | 60 | 119.6 | 114.3 | 63.3 | 21.3 | 10.5 | -13 | 65 | 25 | 42.5 | 5 | M195x2P | 80 | 73.5 | 180 |
| OP-224 | 3-M16x2P | 205 | 6-M24x3P | 36 | 60 | 134.4 | 128.4 | 87.3 | 21.3 | 13.5 | -11 | 65 | 25 | 41 | 5 | M220x3P | 80 | 73.5 | 180 |
| OP-210BH | 3-M12x1.75P | 78 | 6-M16x2P | 24 | 30 | 53.1 | 48.6 | 33.55 | 11.05 | 8.95 | -10.55 | 40 | 16 | 25 | 2 | M87x2P | 40 | 43 | 110 |
| OP-212BH | 3-M16x2P | 93 | 6-M16x2P | 27 | 30 | 63.7 | 58.7 | 45.55 | 12.55 | 8.65 | -13.05 | 50 | 21 | 26 | 2 | M103x2P | 50 | 51 | 129 |
| model | y | thru_hole_diameter_mm | plunger_stroke_mm | jaw_stroke_diameter_mm | max_speed_rpm | max_pull_force_kgf | max_pull_force_kn | max_gripping_force_kgf | max_gripping_force_kn | max_hydr_pressure_kgf_cm2 | max_hydr_pressure_mpa | weight_kg | matching_cylinder | gripping_range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OP-204 | — | 26 | 10 | 5.4 | 8000 | 1428 | 14 | 2850 | 28 | 24 | 2.3 | 3.8 | P0928 | ø7~ø110 |
| OP-205 | — | 33 | 10 | 5.4 | 7000 | 1730 | 17 | 3570 | 35 | 29 | 2.8 | 6.1 | P1036 | ø10~ø135 |
| OP-206 | — | 45 | 12 | 5.5 | 6000 | 2140 | 21 | 5710 | 56 | 28 | 2.7 | 12.5 | P1246 | ø13~ø169 |
| OP-208 | 104.8 | 52 | 16 | 7.4 | 5000 | 3360 | 33 | 8360 | 82 | 26 | 2.5 | 21.9 | P1552 | ø13~ø210 |
| OP-210 | 133.4 | 75 | 19 | 8.8 | 4200 | 4280 | 42 | 11010 | 108 | 27 | 2.6 | 33.7 | P1875 | ø30~ø254 |
| OP-212 | — | 91 | 23 | 10.6 | 3300 | 5500 | 54 | 14380 | 141 | 27 | 2.6 | 55.3 | P2091 | ø35~ø304 |
| OP-215 | 171.4 | 117.5 | 23 | 10.6 | 2500 | 7140 | 70 | 18250 | 179 | 24.5 | 2.4 | 106.8 | P2511 | ø35~ø381 |
| OP-218 | 171.4 | 120 | 23 | 10.6 | 2000 | 7140 | 70 | 18250 | 179 | 24.5 | 2.4 | 152 | P2511 | ø40~ø450 |
| OP-221 | 235 | 180 | 23 | 10.6 | 1700 | 9080 | 89 | 23760 | 233 | 23.5 | 2.3 | 195.2 | P3420 | ø115~ø530 |
| OP-224 | 330.2 | 205 | 26 | 12 | 1400 | 9080 | 89 | 23760 | 233 | 23.5 | 2.3 | 269.4 | P3420 | ø140~ø610 |
| OP-210BH | 133.4 | 78 | 19.5 | 9 | 4200 | 4280 | 42 | 11010 | 108 | 27 | 2.6 | 36.7 | P1878 | ø30~ø254 |
| OP-212BH | — | 93 | 21 | 10 | 3300 | 5500 | 54 | 14380 | 141 | 28 | 2.7 | 57.4 | P2093 | ø35~ø304 |
| Code | Model |
|---|---|
| on request | OP-204 |
| on request | OP-205 |
| on request | OP-206 |
| on request | OP-208 |
| on request | OP-210 |
| on request | OP-212 |
| on request | OP-215 |
| on request | OP-218 |
| on request | OP-221 |
| on request | OP-224 |
| on request | OP-210BH |
| on request | OP-212BH |

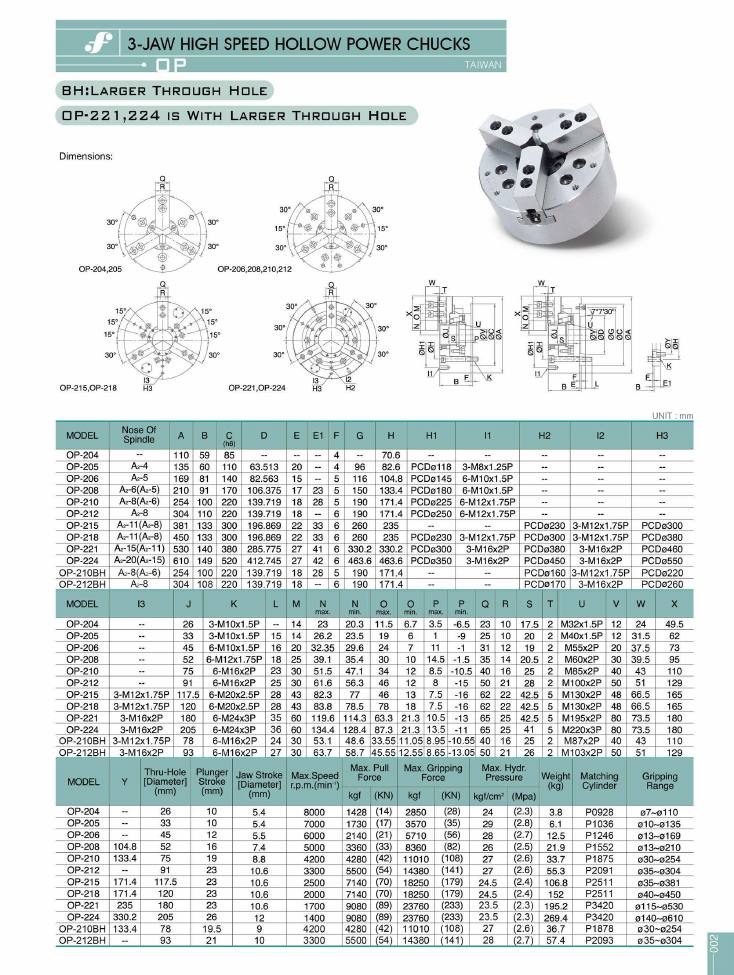

Dimension drawings shown for four body styles: OP-204/205; OP-206,208,210,212; OP-215/OP-218; OP-221/OP-224.
