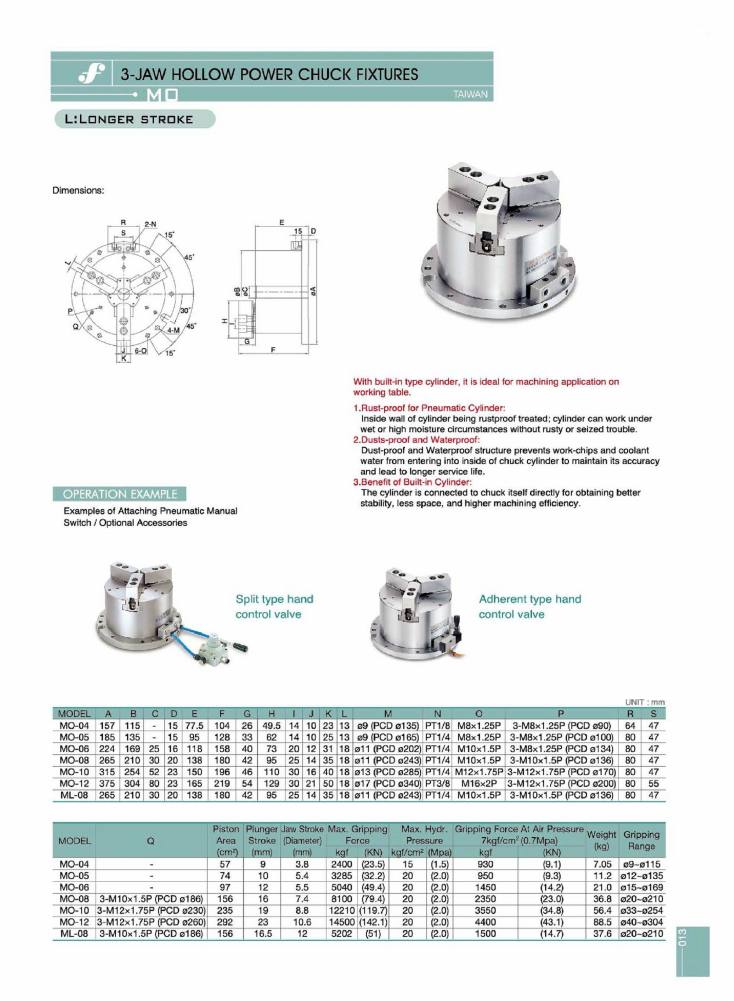

Frejoth accessory catalogue · Page 13
3-Jaw Hollow Power Chuck Fixtures
Models on this page
ML-08MO-04MO-05MO-06MO-08MO-10MO-12
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
3-Jaw Hollow Power Chuck Fixtures
MO · Taiwan
- With built-in type cylinder, it is ideal for machining application on working table.
- 1. Rust-proof for Pneumatic Cylinder: Inside wall of cylinder being rustproof treated; cylinder can work under wet or high moisture circumstances without rusty or seized trouble.
- 2. Dust-proof and Waterproof: Dust-proof and Waterproof structure prevents work-chips and coolant water from entering into inside of chuck cylinder to maintain its accuracy and lead to longer service life.
- 3. Benefit of Built-in Cylinder: The cylinder is connected to chuck itself directly for obtaining better stability, less space, and higher machining efficiency.
| model | a | b | c | d | e | f | g | h | i | j | k | l | m | n | o | p | r | s |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-04 | 157 | 115 | — | 15 | 77.5 | 104 | 26 | 49.5 | 14 | 10 | 23 | 13 | ø9 (PCD ø135) | PT1/8 | M8x1.25P | 3-M8x1.25P (PCD ø90) | 64 | 47 |
| MO-05 | 185 | 135 | — | 15 | 95 | 128 | 33 | 62 | 14 | 10 | 25 | 13 | ø9 (PCD ø165) | PT1/4 | M8x1.25P | 3-M8x1.25P (PCD ø100) | 80 | 47 |
| MO-06 | 224 | 169 | 25 | 16 | 118 | 158 | 40 | 73 | 20 | 12 | 31 | 18 | ø11 (PCD ø202) | PT1/4 | M10x1.5P | 3-M8x1.25P (PCD ø134) | 80 | 47 |
| MO-08 | 265 | 210 | 30 | 20 | 138 | 180 | 42 | 95 | 25 | 14 | 35 | 18 | ø11 (PCD ø243) | PT1/4 | M10x1.5P | 3-M10x1.5P (PCD ø136) | 80 | 47 |
| MO-10 | 315 | 254 | 52 | 23 | 150 | 196 | 46 | 110 | 30 | 16 | 40 | 18 | ø13 (PCD ø285) | PT1/4 | M12x1.75P | 3-M12x1.75P (PCD ø170) | 80 | 47 |
| MO-12 | 375 | 304 | 80 | 23 | 165 | 219 | 54 | 129 | 30 | 21 | 50 | 18 | ø17 (PCD ø340) | PT3/8 | M16x2P | 3-M12x1.75P (PCD ø200) | 80 | 55 |
| ML-08 | 265 | 210 | 30 | 20 | 138 | 180 | 42 | 95 | 25 | 14 | 35 | 18 | ø11 (PCD ø243) | PT1/4 | M10x1.5P | 3-M10x1.5P (PCD ø136) | 80 | 47 |
| model | q | piston_area_cm2 | plunger_stroke_mm | jaw_stroke_diameter_mm | max_gripping_force_kgf | max_gripping_force_kn | max_hydr_pressure_kgf_cm2 | max_hydr_pressure_mpa | gripping_force_at_air_pressure_7kgf_cm2_kgf | gripping_force_at_air_pressure_7kgf_cm2_kn | weight_kg | gripping_range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-04 | — | 57 | 9 | 3.8 | 2400 | 23.5 | 15 | 1.5 | 930 | 9.1 | 7.05 | ø9~ø115 |
| MO-05 | — | 74 | 10 | 5.4 | 3285 | 32.2 | 20 | 2 | 950 | 9.3 | 11.2 | ø12~ø135 |
| MO-06 | — | 97 | 12 | 5.5 | 5040 | 49.4 | 20 | 2 | 1450 | 14.2 | 21 | ø15~ø169 |
| MO-08 | 3-M10x1.5P (PCD ø186) | 156 | 16 | 7.4 | 8100 | 79.4 | 20 | 2 | 2350 | 23 | 36.8 | ø20~ø210 |
| MO-10 | 3-M12x1.75P (PCD ø230) | 235 | 19 | 8.8 | 12210 | 119.7 | 20 | 2 | 3550 | 34.8 | 56.4 | ø33~ø254 |
| MO-12 | 3-M12x1.75P (PCD ø260) | 292 | 23 | 10.6 | 14500 | 142.1 | 20 | 2 | 4400 | 43.1 | 88.5 | ø40~ø304 |
| ML-08 | 3-M10x1.5P (PCD ø186) | 156 | 16.5 | 12 | 5202 | 51 | 20 | 2 | 1500 | 14.7 | 37.6 | ø20~ø210 |
| Code | Model |
|---|---|
| on request | MO-04 |
| on request | MO-05 |
| on request | MO-06 |
| on request | MO-08 |
| on request | MO-10 |
| on request | MO-12 |
| on request | ML-08 |
Prefix L (model ML-08) denotes 'Longer Stroke'. Operation example panel shows examples of attaching pneumatic manual switch / optional accessories: split type hand control valve and adherent type hand control valve.
