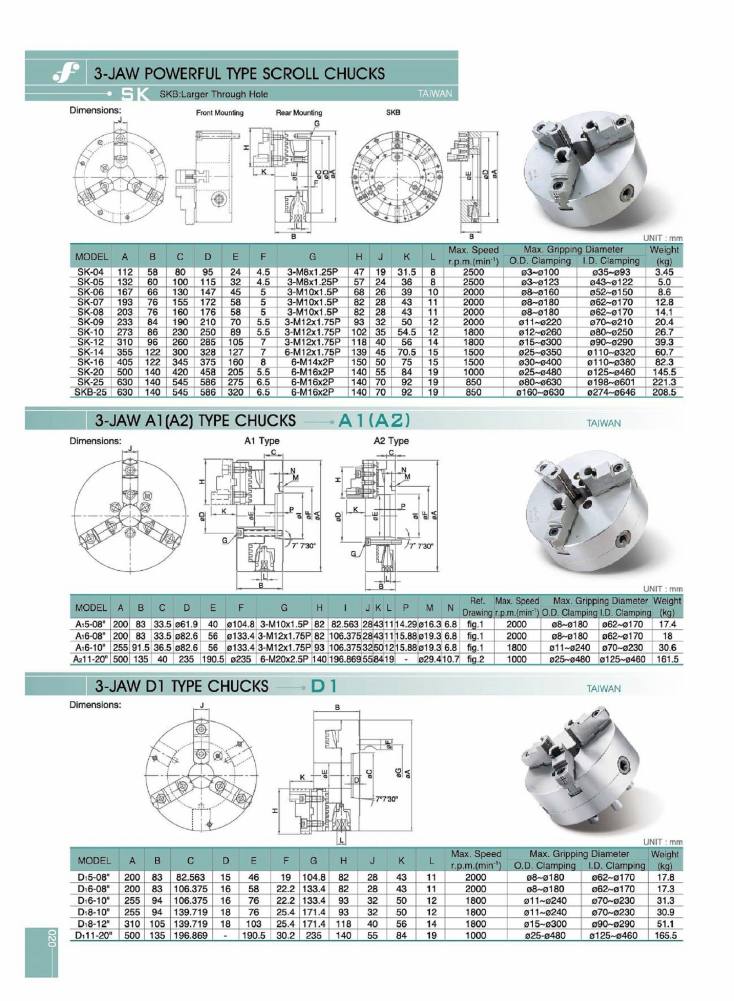

Frejoth accessory catalogue · Page 20

3-jaw powerful type scroll chucks / 3-jaw A1(A2) type chucks / 3-jaw D1 type chucks

Models on this page

A1-5-08"A1-6-08"A1-6-10"A2-11-20"D1-11-20"D1-5-08"D1-6-08"D1-6-10"D1-8-10"D1-8-12"SK-04SK-05SK-06SK-07SK-08SK-09SK-10SK-12SK-14SK-16SK-20SK-25SKB-25

Send us your details and we'll come back with pricing, availability and specifications.

SK · Taiwan

dimensions_and_capacity (mm)
model	a	b	c	d	e	f	g	h	j	k	l	max_speed_rpm_min_1	max_gripping_diameter_od_clamping	max_gripping_diameter_id_clamping	weight_kg
SK-04	112	58	80	95	24	4.5	3-M8x1.25P	47	19	31.5	8	2500	ø3~ø100	ø35~ø93	3.45
SK-05	132	60	100	115	32	4.5	3-M8x1.25P	57	24	36	8	2500	ø3~ø123	ø43~ø122	5
SK-06	167	66	130	147	45	5	3-M10x1.5P	68	26	39	10	2000	ø8~ø160	ø52~ø150	8.6
SK-07	193	76	155	172	58	5	3-M10x1.5P	82	28	43	11	2000	ø8~ø180	ø62~ø170	12.8
SK-08	203	76	160	176	58	5	3-M10x1.5P	82	28	43	11	2000	ø8~ø180	ø62~ø170	14.1
SK-09	233	84	190	210	70	5.5	3-M12x1.75P	93	32	50	12	2000	ø11~ø220	ø70~ø210	20.4
SK-10	273	86	230	250	89	5.5	3-M12x1.75P	102	35	54.5	12	1800	ø12~ø260	ø80~ø250	26.7
SK-12	310	96	260	285	105	7	3-M12x1.75P	118	40	56	14	1800	ø15~ø300	ø90~ø290	39.3
SK-14	355	122	300	328	127	7	6-M12x1.75P	139	45	70.5	15	1500	ø25~ø350	ø110~ø320	60.7
SK-16	405	122	345	375	160	8	6-M14x2P	150	50	75	15	1500	ø30~ø400	ø110~ø380	82.3
SK-20	500	140	420	458	205	5.5	6-M16x2P	140	55	84	19	1000	ø25~ø480	ø125~ø460	145.5
SK-25	630	140	545	586	275	6.5	6-M16x2P	140	70	92	19	850	ø80~ø630	ø198~ø601	221.3
SKB-25	630	140	545	586	320	6.5	6-M16x2P	140	70	92	19	850	ø160~ø630	ø274~ø646	208.5

SKB: larger through hole. Dimension drawings show front mounting, rear mounting and the SKB variant.

A1(A2) · Taiwan

dimensions_and_capacity (mm)
model	a	b	c	d	e	f	g	h	i	j	k	l	p	m	n	reference_drawing	max_speed_rpm_min_1	max_gripping_diameter_od_clamping	max_gripping_diameter_id_clamping	weight_kg
A1-5-08"	200	83	33.5	ø61.9	40	ø104.8	3-M10x1.5P	82	82.563	28	43	11	14.29	ø16.3	6.8	fig.1	2000	ø8~ø180	ø62~ø170	17.4
A1-6-08"	200	83	33.5	ø82.6	56	ø133.4	3-M12x1.75P	82	106.375	28	43	11	15.88	ø19.3	6.8	fig.1	2000	ø8~ø180	ø62~ø170	18
A1-6-10"	255	91.5	36.5	ø82.6	56	ø133.4	3-M12x1.75P	93	106.375	32	50	12	15.88	ø19.3	6.8	fig.1	1800	ø11~ø240	ø70~ø230	30.6
A2-11-20"	500	135	40	235	190.5	ø235	6-M20x2.5P	140	196.869	55	84	19	—	ø29.4	10.7	fig.2	1000	ø25~ø480	ø125~ø460	161.5

Two mounting variants drawn: A1 Type (fig.1) and A2 Type (fig.2), both with a 7°7'30" taper register.

D1 · Taiwan

dimensions_and_capacity (mm)
model	a	b	c	d	e	f	g	h	j	k	l	max_speed_rpm_min_1	max_gripping_diameter_od_clamping	max_gripping_diameter_id_clamping	weight_kg
D1-5-08"	200	83	82.563	15	46	19	104.8	82	28	43	11	2000	ø8~ø180	ø62~ø170	17.8
D1-6-08"	200	83	106.375	16	58	22.2	133.4	82	28	43	11	2000	ø8~ø180	ø62~ø170	17.3
D1-6-10"	255	94	106.375	16	76	22.2	133.4	93	32	50	12	1800	ø11~ø240	ø70~ø230	31.3
D1-8-10"	255	94	139.719	18	76	25.4	171.4	93	32	50	12	1800	ø11~ø240	ø70~ø230	30.9
D1-8-12"	310	105	139.719	18	103	25.4	171.4	118	40	56	14	1800	ø15~ø300	ø90~ø290	51.1
D1-11-20"	500	135	196.869	—	190.5	30.2	235	140	55	84	19	1000	ø25~ø480	ø125~ø460	165.5

D1 camlock mounting, 7°7'30" taper register.
