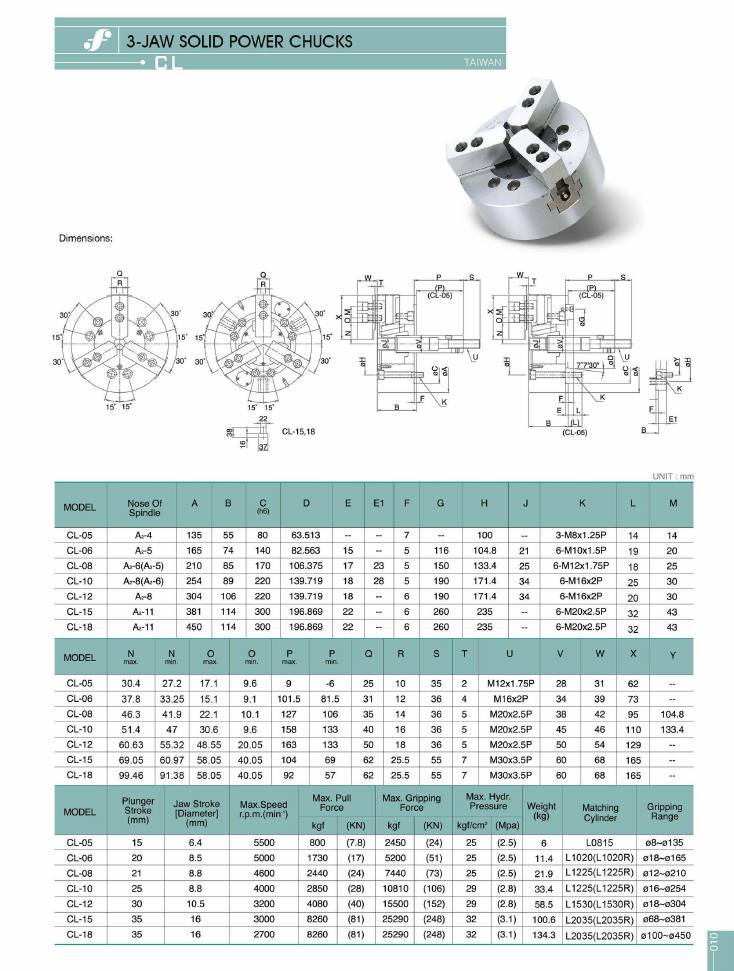

3-Jaw Solid Power Chucks
Models on this page
CL-05CL-06CL-08CL-10CL-12CL-15CL-18
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
3-Jaw Solid Power Chucks
CL · Taiwan
| model | nose_of_spindle | a | b | c_h6 | d | e | e1 | f | g | h | j | k | l | m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-05 | A2-4 | 135 | 55 | 80 | 63.513 | — | — | 7 | — | 100 | — | 3-M8x1.25P | 14 | 14 |
| CL-06 | A2-5 | 165 | 74 | 140 | 82.563 | 15 | — | 5 | 116 | 104.8 | 21 | 6-M10x1.5P | 19 | 20 |
| CL-08 | A2-6(A2-5) | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 25 | 6-M12x1.75P | 18 | 25 |
| CL-10 | A2-8(A2-6) | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 | 6-M16x2P | 25 | 30 |
| CL-12 | A2-8 | 304 | 106 | 220 | 139.719 | 18 | — | 6 | 190 | 171.4 | 34 | 6-M16x2P | 20 | 30 |
| CL-15 | A2-11 | 381 | 114 | 300 | 196.869 | 22 | — | 6 | 260 | 235 | — | 6-M20x2.5P | 32 | 43 |
| CL-18 | A2-11 | 450 | 114 | 300 | 196.869 | 22 | — | 6 | 260 | 235 | — | 6-M20x2.5P | 32 | 43 |
| model | n_max | n_min | o_max | o_min | p_max | p_min | q | r | s | t | u | v | w | x | y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-05 | 30.4 | 27.2 | 17.1 | 9.6 | 9 | -6 | 25 | 10 | 35 | 2 | M12x1.75P | 28 | 31 | 62 | — |
| CL-06 | 37.8 | 33.25 | 15.1 | 9.1 | 101.5 | 81.5 | 31 | 12 | 36 | 4 | M16x2P | 34 | 39 | 73 | — |
| CL-08 | 46.3 | 41.9 | 22.1 | 10.1 | 127 | 106 | 35 | 14 | 36 | 5 | M20x2.5P | 38 | 42 | 95 | 104.8 |
| CL-10 | 51.4 | 47 | 30.6 | 9.6 | 158 | 133 | 40 | 16 | 36 | 5 | M20x2.5P | 45 | 46 | 110 | 133.4 |
| CL-12 | 60.63 | 55.32 | 48.55 | 20.05 | 163 | 133 | 50 | 18 | 36 | 5 | M20x2.5P | 50 | 54 | 129 | — |
| CL-15 | 69.05 | 60.97 | 58.05 | 40.05 | 104 | 69 | 62 | 25.5 | 55 | 7 | M30x3.5P | 60 | 68 | 165 | — |
| CL-18 | 99.46 | 91.38 | 58.05 | 40.05 | 92 | 57 | 62 | 25.5 | 55 | 7 | M30x3.5P | 60 | 68 | 165 | — |
| model | plunger_stroke_mm | jaw_stroke_diameter_mm | max_speed_rpm | max_pull_force_kgf | max_pull_force_kn | max_gripping_force_kgf | max_gripping_force_kn | max_hydr_pressure_kgf_cm2 | max_hydr_pressure_mpa | weight_kg | matching_cylinder | gripping_range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-05 | 15 | 6.4 | 5500 | 800 | 7.8 | 2450 | 24 | 25 | 2.5 | 6 | L0815 | ø8~ø135 |
| CL-06 | 20 | 8.5 | 5000 | 1730 | 17 | 5200 | 51 | 25 | 2.5 | 11.4 | L1020(L1020R) | ø18~ø165 |
| CL-08 | 21 | 8.8 | 4600 | 2440 | 24 | 7440 | 73 | 25 | 2.5 | 21.9 | L1225(L1225R) | ø12~ø210 |
| CL-10 | 25 | 8.8 | 4000 | 2850 | 28 | 10810 | 106 | 29 | 2.8 | 33.4 | L1225(L1225R) | ø16~ø254 |
| CL-12 | 30 | 10.5 | 3200 | 4080 | 40 | 15500 | 152 | 29 | 2.8 | 58.5 | L1530(L1530R) | ø18~ø304 |
| CL-15 | 35 | 16 | 3000 | 8260 | 81 | 25290 | 248 | 32 | 3.1 | 100.6 | L2035(L2035R) | ø68~ø381 |
| CL-18 | 35 | 16 | 2700 | 8260 | 81 | 25290 | 248 | 32 | 3.1 | 134.3 | L2035(L2035R) | ø100~ø450 |
| Code | Model |
|---|---|
| on request | CL-05 |
| on request | CL-06 |
| on request | CL-08 |
| on request | CL-10 |
| on request | CL-12 |
| on request | CL-15 |
| on request | CL-18 |
Dimension drawings show two face layouts, two mounting cross-sections (plain back and 7°7'30" short taper, the latter with (P)/(L) variants for CL-05) and a jaw detail marked CL-15,18 (22 / 37 / 38 / 16).
