3-Jaw Solid Power Chucks
Models on this page
CL-12DPCL-15DPCL-18DPCL-21DPCL-24DPCL-32DPCL-40DP
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
3-Jaw Solid Power Chucks
CL-DP · Taiwan
- NEW
| model | nose_of_spindle | a | b | c_h6 | d | e | e1 | f | g | h | k | l | m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-12DP | A2-8 | 304 | 110 | 220 | 139.719 | 18 | — | 6 | 190 | 171.4 | 6-M16x2P | 20 | 30 |
| CL-15DP | A2-11 | 381 | 118 | 300 | 196.869 | 22 | — | 6 | 260 | 235 | 6-M20x2.5P | 32 | 43 |
| CL-18DP | A2-11 | 450 | 118 | 300 | 196.869 | 22 | — | 6 | 260 | 235 | 6-M20x2.5P | 32 | 43 |
| CL-21DP | A2-15(A2-11) | 530 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
| CL-24DP | A2-15(A2-11) | 610 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
| CL-32DP | A2-15(A2-11) | 800 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
| CL-40DP | A2-15(A2-11) | 1000 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
| model | n_max | n_min | o_max | o_min | p_max | p_min | q | r | s | t | u | v | w | x | y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-12DP | 60.63 | 55.32 | 48.55 | 20.05 | 163 | 133 | 50 | 18 | 36 | 5 | M20x2.5P | 50 | 54 | 129 | — |
| CL-15DP | 69.05 | 60.97 | 58.05 | 40.05 | 104 | 69 | 62 | 25.5 | 55 | 7 | M30x3.5P | 60 | 68 | 165 | — |
| CL-18DP | 99.46 | 91.38 | 58.05 | 40.05 | 92 | 57 | 62 | 25.5 | 55 | 7 | M30x3.5P | 60 | 68 | 165 | — |
| CL-21DP | 80.49 | 72.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30x3.5P | 60 | 75.5 | 180 | 235 |
| CL-24DP | 119.49 | 111.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30x3.5P | 60 | 75.5 | 180 | 235 |
| CL-32DP | 119.49 | 111.39 | 197.8 | 41.8 | 97 | 61.95 | 65 | 25 | 55 | 7 | M30x3.5P | 60 | 75.5 | 180 | 235 |
| CL-40DP | 119.49 | 111.39 | 299.8 | 41.8 | 97 | 102 | 65 | 25 | 55 | 7 | M30x3.5P | 60 | 75.5 | 180 | 235 |
| model | plunger_stroke_mm | jaw_stroke_diameter_mm | max_speed_rpm | max_pull_force_kgf | max_pull_force_kn | max_gripping_force_kgf | max_gripping_force_kn | max_hydr_pressure_kgf_cm2 | max_hydr_pressure_mpa | weight_kg | matching_cylinder | gripping_range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-12DP | 30 | 10.5 | 3200 | 4080 | 40 | 15500 | 152 | 29 | 2.8 | 64.4 | L1530(L1530RE) | ø18~ø304 |
| CL-15DP | 35 | 16 | 3000 | 8260 | 81 | 25290 | 248 | 32 | 3.1 | 104.1 | L2035(L2035RE) | ø68~ø381 |
| CL-18DP | 35 | 16 | 2700 | 8260 | 81 | 25290 | 248 | 32 | 3.1 | 138.5 | L2035(L2035RE) | ø100~ø450 |
| CL-21DP | 35 | 16 | 1900 | 8650 | 85 | 27000 | 265 | 33 | 3.2 | 204.8 | L2035(L2035RE) | ø80~ø530 |
| CL-24DP | 35 | 16 | 1700 | 8650 | 85 | 27000 | 265 | 33 | 3.2 | 260 | L2035(L2035RE) | ø155~ø610 |
| CL-32DP | 35 | 16 | 1100 | 8650 | 85 | 27000 | 265 | 33 | 3.2 | 455.4 | L2035(L2035RE) | ø155~ø800 |
| CL-40DP | 35 | 16 | 800 | 8650 | 85 | 27000 | 265 | 33 | 3.2 | — | L2035(L2035RE) | ø155~ø1000 |
| Code | Model |
|---|---|
| on request | CL-12DP |
| on request | CL-15DP |
| on request | CL-18DP |
| on request | CL-21DP |
| on request | CL-24DP |
| on request | CL-32DP |
| on request | CL-40DP |

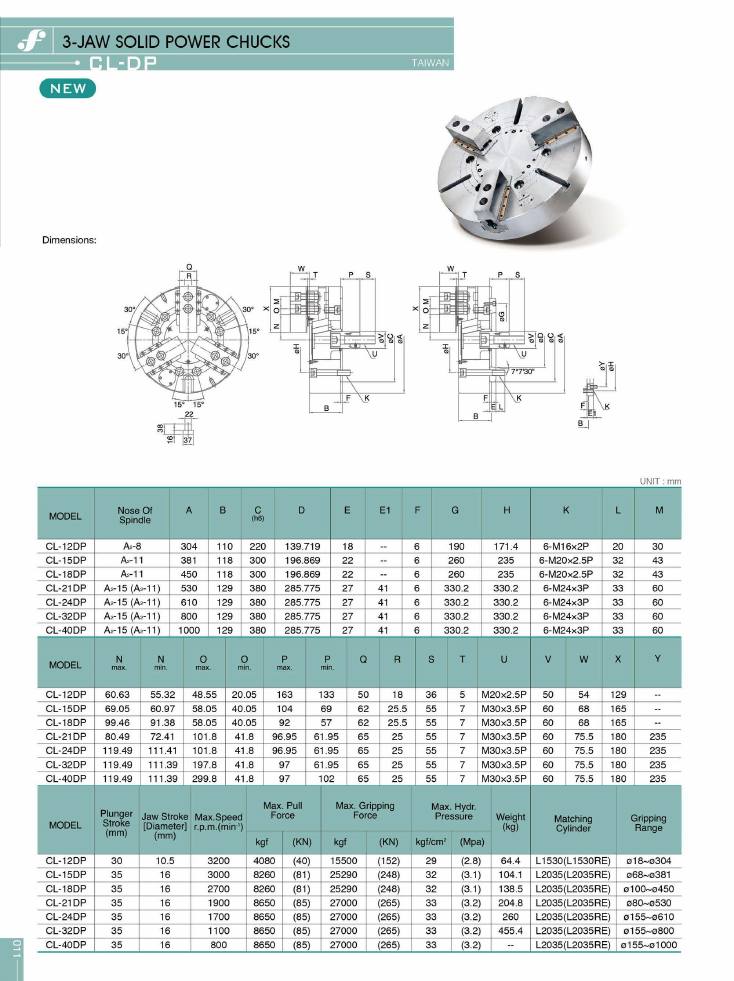

Dimension drawings show the face layout, two mounting cross-sections (plain back and 7°7'30" short taper) and a jaw detail (22 / 37 / 38 / 16).
