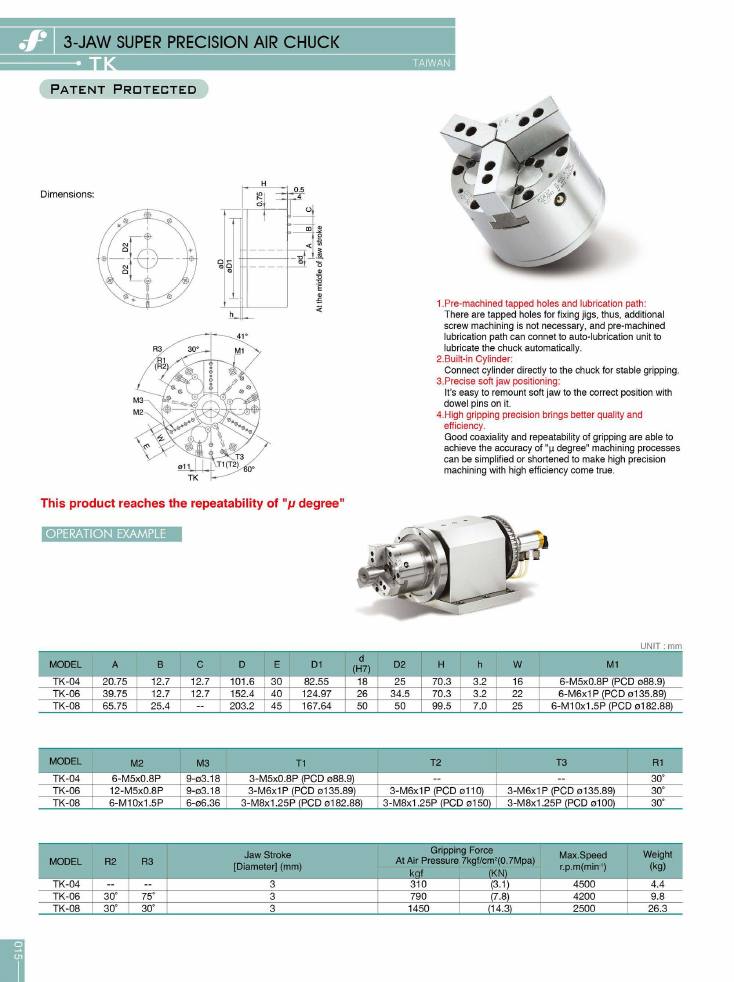

Frejoth accessory catalogue · Page 15
3-Jaw Super Precision Air Chuck
Models on this page
TK-04TK-06TK-08
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
3-Jaw Super Precision Air Chuck
TK · Taiwan
- Patent protected.
- 1. Pre-machined tapped holes and lubrication path: There are tapped holes for fixing jigs, thus, additional screw machining is not necessary, and pre-machined lubrication path can connect to auto-lubrication unit to lubricate the chuck automatically.
- 2. Built-in Cylinder: Connect cylinder directly to the chuck for stable gripping.
- 3. Precise soft jaw positioning: It's easy to remount soft jaw to the correct position with dowel pins on it.
- 4. High gripping precision brings better quality and efficiency. Good coaxiality and repeatability of gripping are able to achieve the accuracy of "µ degree" machining processes can be simplified or shortened to make high precision machining with high efficiency come true.
| model | a | b | c | d | e | d1 | d_h7 | d2 | h_upper | h_lower | w | m1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TK-04 | 20.75 | 12.7 | 12.7 | 101.6 | 30 | 82.55 | 18 | 25 | 70.3 | 3.2 | 16 | 6-M5x0.8P (PCD ø88.9) |
| TK-06 | 39.75 | 12.7 | 12.7 | 152.4 | 40 | 124.97 | 26 | 34.5 | 70.3 | 3.2 | 22 | 6-M6x1P (PCD ø135.89) |
| TK-08 | 65.75 | 25.4 | — | 203.2 | 45 | 167.64 | 50 | 50 | 99.5 | 7 | 25 | 6-M10x1.5P (PCD ø182.88) |
| model | m2 | m3 | t1 | t2 | t3 | r1 |
|---|---|---|---|---|---|---|
| TK-04 | 6-M5x0.8P | 9-ø3.18 | 3-M5x0.8P (PCD ø88.9) | — | — | 30° |
| TK-06 | 12-M5x0.8P | 9-ø3.18 | 3-M6x1P (PCD ø135.89) | 3-M6x1P (PCD ø110) | 3-M6x1P (PCD ø135.89) | 30° |
| TK-08 | 6-M10x1.5P | 6-ø6.36 | 3-M8x1.25P (PCD ø182.88) | 3-M8x1.25P (PCD ø150) | 3-M8x1.25P (PCD ø100) | 30° |
| model | r2 | r3 | jaw_stroke_diameter_mm | gripping_force_at_7kgf_cm2_kgf | gripping_force_at_7kgf_cm2_kn | max_speed_rpm | weight_kg |
|---|---|---|---|---|---|---|---|
| TK-04 | — | — | 3 | 310 | 3.1 | 4500 | 4.4 |
| TK-06 | 30° | 75° | 3 | 790 | 7.8 | 4200 | 9.8 |
| TK-08 | 30° | 30° | 3 | 1450 | 14.3 | 2500 | 26.3 |
| Code | Model |
|---|---|
| on request | TK-04 |
| on request | TK-06 |
| on request | TK-08 |
Headline claim: 'This product reaches the repeatability of "µ degree"'. Operation example panel shows the chuck mounted on a horizontal rotary/indexing unit. Dimension drawing annotations: 0.5, 0.75, 4, ø11, 41°, 30°, 60°; ød measured at the middle of jaw stroke.
