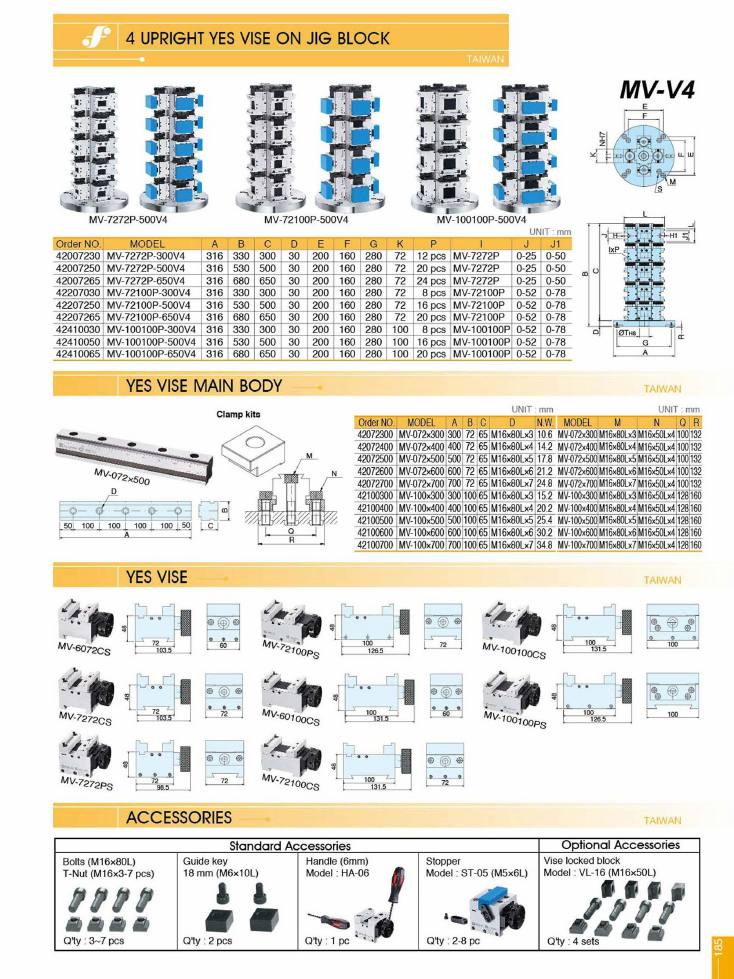

4 Upright Yes Vise on Jig Block

Models on this page

HA-06MV-072x300MV-072x400MV-072x500MV-072x600MV-072x700MV-100100CSMV-100100P-300V4MV-100100P-500V4MV-100100P-650V4MV-100100PSMV-100x300MV-100x400MV-100x500MV-100x600MV-100x700MV-60100CSMV-6072CSMV-72100CSMV-72100P-300V4MV-72100P-500V4MV-72100P-650V4MV-72100PSMV-7272CSMV-7272P-300V4MV-7272P-500V4MV-7272P-650V4MV-7272PSST-05VL-16

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

4 Upright Yes Vise on Jig Block

MV-V4 · Taiwan

dimensions (mm)
order_no	model	a	b	c	d	e	f	g	k	p	i	j	j1
42007230	MV-7272P-300V4	316	330	300	30	200	160	280	72	12 pcs	MV-7272P	0-25	0-50
42007250	MV-7272P-500V4	316	530	500	30	200	160	280	72	20 pcs	MV-7272P	0-25	0-50
42007265	MV-7272P-650V4	316	680	650	30	200	160	280	72	24 pcs	MV-7272P	0-25	0-50
42207030	MV-72100P-300V4	316	330	300	30	200	160	280	72	8 pcs	MV-72100P	0-52	0-78
42207250	MV-72100P-500V4	316	530	500	30	200	160	280	72	16 pcs	MV-72100P	0-52	0-78
42207265	MV-72100P-650V4	316	680	650	30	200	160	280	72	20 pcs	MV-72100P	0-52	0-78
42410030	MV-100100P-300V4	316	330	300	30	200	160	280	100	8 pcs	MV-100100P	0-52	0-78
42410050	MV-100100P-500V4	316	530	500	30	200	160	280	100	16 pcs	MV-100100P	0-52	0-78
42410065	MV-100100P-650V4	316	680	650	30	200	160	280	100	20 pcs	MV-100100P	0-52	0-78

Order references
Code	Model
42007230	MV-7272P-300V4
42007250	MV-7272P-500V4
42007265	MV-7272P-650V4
42207030	MV-72100P-300V4
42207250	MV-72100P-500V4
42207265	MV-72100P-650V4
42410030	MV-100100P-300V4
42410050	MV-100100P-500V4
42410065	MV-100100P-650V4

Four-sided tombstone jig block carrying Yes Vise units. Column P is the number of vise units fitted; column I names the vise model fitted. J is the jaw opening of the standard vise, J1 that of the S-type. Drawing also carries NH7, M, S, L, H, H1, IxP, R and ØTH8 callouts with no values tabulated.

Yes Vise Main Body

Taiwan

main_body_dimensions (mm)
order_no	model	a	b	c	d	n_w
42072300	MV-072x300	300	72	65	M16x80Lx3	10.6
42072400	MV-072x400	400	72	65	M16x80Lx4	14.2
42072500	MV-072x500	500	72	65	M16x80Lx5	17.8
42072600	MV-072x600	600	72	65	M16x80Lx6	21.2
42072700	MV-072x700	700	72	65	M16x80Lx7	24.8
42100300	MV-100x300	300	100	65	M16x80Lx3	15.2
42100400	MV-100x400	400	100	65	M16x80Lx4	20.2
42100500	MV-100x500	500	100	65	M16x80Lx5	25.4
42100600	MV-100x600	600	100	65	M16x80Lx6	30.2
42100700	MV-100x700	700	100	65	M16x80Lx7	34.8

clamp_kits (mm)
model	m	n	q	r
MV-072x300	M16x80Lx3	M16x50Lx4	100	132
MV-072x400	M16x80Lx4	M16x50Lx4	100	132
MV-072x500	M16x80Lx5	M16x50Lx4	100	132
MV-072x600	M16x80Lx6	M16x50Lx4	100	132
MV-072x700	M16x80Lx7	M16x50Lx4	100	132
MV-100x300	M16x80Lx3	M16x50Lx4	128	160
MV-100x400	M16x80Lx4	M16x50Lx4	128	160
MV-100x500	M16x80Lx5	M16x50Lx4	128	160
MV-100x600	M16x80Lx6	M16x50Lx4	128	160
MV-100x700	M16x80Lx7	M16x50Lx4	128	160

Order references
Code	Model
42072300	MV-072x300
42072400	MV-072x400
42072500	MV-072x500
42072600	MV-072x600
42072700	MV-072x700
42100300	MV-100x300
42100400	MV-100x400
42100500	MV-100x500
42100600	MV-100x600
42100700	MV-100x700

Rail/base body for the Yes Vise range. Column D is the standard bolt specification; N.W. in kg. The right-hand block of the same table is the Clamp kits listing (M, N, Q, R), recorded as a separate table keyed on the same models.

Yes Vise

Taiwan

outline_dimensions (mm)
model	height	jaw_width	overall_length	body_width
MV-6072CS	48	72	103.5	60
MV-72100PS	48	100	126.5	72
MV-100100CS	48	100	131.5	100
MV-7272CS	48	72	103.5	72
MV-60100CS	48	100	131.5	60
MV-100100PS	48	100	126.5	100
MV-7272PS	48	72	98.5	72
MV-72100CS	48	100	131.5	72

Order references
Code	Model
on request	MV-6072CS
on request	MV-72100PS
on request	MV-100100CS
on request	MV-7272CS
on request	MV-60100CS
on request	MV-100100PS
on request	MV-7272PS
on request	MV-72100CS

Outline drawings only for the eight S-type vise heads; no order numbers are printed in this block.

Accessories

Taiwan

accessories
type	item	model_or_size	qty
standard	Bolts / T-Nut	Bolts M16x80L; T-Nut M16x3-7 pcs	3~7 pcs
standard	Guide key	18 mm (M6x10L)	2 pcs
standard	Handle (6mm)	HA-06	1 pc
standard	Stopper	ST-05 (M5x6L)	2-8 pc
optional	Vise locked block	VL-16 (M16x50L)	4 sets

Order references
Code	Model
on request	HA-06
on request	ST-05
on request	VL-16
