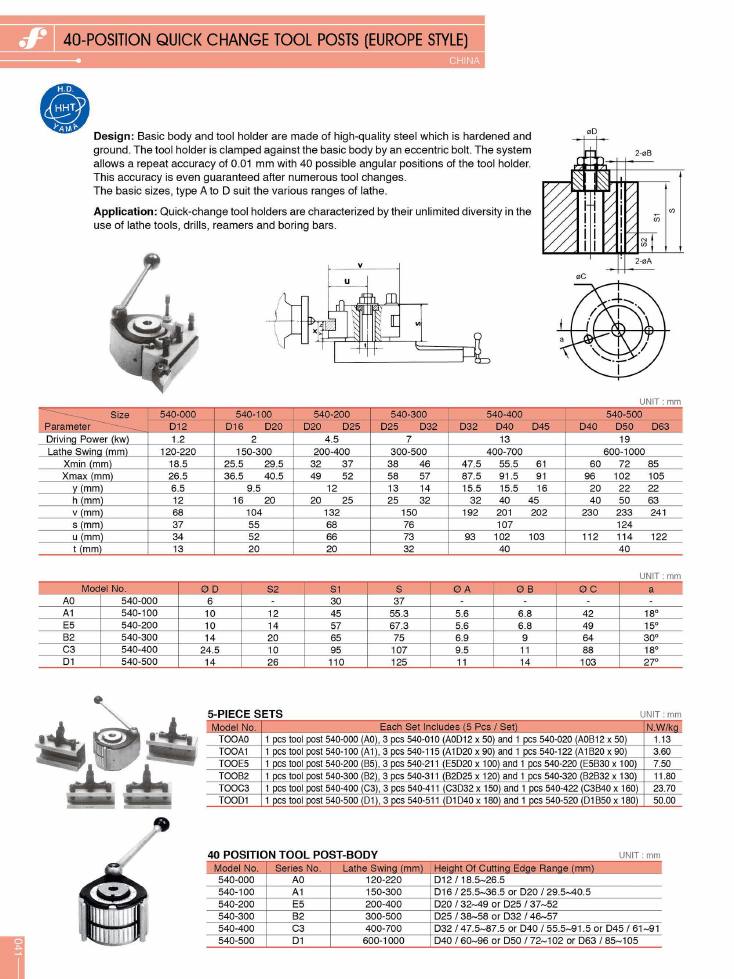

40-Position quick change tool posts (Europe style)
Models on this page
A0A1B2C3D1E5TOOA0TOOA1TOOB2TOOC3TOOD1TOOE5
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
40-Position Quick Change Tool Posts (Europe Style)
540 · China
- Basic body and tool holder are made of high-quality steel which is hardened and ground
- The tool holder is clamped against the basic body by an eccentric bolt
- Repeat accuracy of 0.01 mm with 40 possible angular positions of the tool holder
- Accuracy guaranteed after numerous tool changes
- Basic sizes, type A to D suit the various ranges of lathe
| size | shank | driving_power_kw | lathe_swing_mm | xmin_mm | xmax_mm | y_mm | h_mm | v_mm | s_mm | u_mm | t_mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 540-000 | D12 | 1.2 | 120-220 | 18.5 | 26.5 | 6.5 | 12 | 68 | 37 | 34 | 13 |
| 540-100 | D16 | 2 | 150-300 | 25.5 | 36.5 | 9.5 | 16 | 104 | 55 | 52 | 20 |
| 540-100 | D20 | 2 | 150-300 | 29.5 | 40.5 | 9.5 | 20 | 104 | 55 | 52 | 20 |
| 540-200 | D20 | 4.5 | 200-400 | 32 | 49 | 12 | 20 | 132 | 68 | 66 | 20 |
| 540-200 | D25 | 4.5 | 200-400 | 37 | 52 | 12 | 25 | 132 | 68 | 66 | 20 |
| 540-300 | D25 | 7 | 300-500 | 38 | 58 | 13 | 25 | 150 | 76 | 73 | 32 |
| 540-300 | D32 | 7 | 300-500 | 46 | 57 | 14 | 32 | 150 | 76 | 73 | 32 |
| 540-400 | D32 | 13 | 400-700 | 47.5 | 87.5 | 15.5 | 32 | 192 | 107 | 93 | 40 |
| 540-400 | D40 | 13 | 400-700 | 55.5 | 91.5 | 15.5 | 40 | 201 | 107 | 102 | 40 |
| 540-400 | D45 | 13 | 400-700 | 61 | 91 | 16 | 45 | 202 | 107 | 103 | 40 |
| 540-500 | D40 | 19 | 600-1000 | 60 | 96 | 20 | 40 | 230 | 124 | 112 | 40 |
| 540-500 | D50 | 19 | 600-1000 | 72 | 102 | 22 | 50 | 233 | 124 | 114 | 40 |
| 540-500 | D63 | 19 | 600-1000 | 85 | 105 | 22 | 63 | 241 | 124 | 122 | 40 |
| series_no | model_no | od | s2 | s1 | s | oa | ob | oc | a |
|---|---|---|---|---|---|---|---|---|---|
| A0 | 540-000 | 6 | — | 30 | 37 | — | — | — | — |
| A1 | 540-100 | 10 | 12 | 45 | 55.3 | 5.6 | 6.8 | 42 | 18° |
| E5 | 540-200 | 10 | 14 | 57 | 67.3 | 5.6 | 6.8 | 49 | 15° |
| B2 | 540-300 | 14 | 20 | 65 | 75 | 6.9 | 9 | 64 | 30° |
| C3 | 540-400 | 24.5 | 10 | 95 | 107 | 9.5 | 11 | 88 | 18° |
| D1 | 540-500 | 14 | 26 | 110 | 125 | 11 | 14 | 103 | 27° |
| model_no | each_set_includes_5_pcs_set | n_w_kg |
|---|---|---|
| TOOA0 | 1 pcs tool post 540-000 (A0), 3 pcs 540-010 (A0D12 x 50) and 1 pcs 540-020 (A0B12 x 50) | 1.13 |
| TOOA1 | 1 pcs tool post 540-100 (A1), 3 pcs 540-115 (A1D20 x 90) and 1 pcs 540-122 (A1B20 x 90) | 3.6 |
| TOOE5 | 1 pcs tool post 540-200 (B5), 3 pcs 540-211 (E5D20 x 100) and 1 pcs 540-220 (E5B30 x 100) | 7.5 |
| TOOB2 | 1 pcs tool post 540-300 (B2), 3 pcs 540-311 (B2D25 x 120) and 1 pcs 540-320 (B2B32 x 130) | 11.8 |
| TOOC3 | 1 pcs tool post 540-400 (C3), 3 pcs 540-411 (C3D32 x 150) and 1 pcs 540-422 (C3B40 x 160) | 23.7 |
| TOOD1 | 1 pcs tool post 540-500 (D1), 3 pcs 540-511 (D1D40 x 180) and 1 pcs 540-520 (D1B50 x 180) | 50 |
| model_no | series_no | lathe_swing_mm | height_of_cutting_edge_range_mm |
|---|---|---|---|
| 540-000 | A0 | 120-220 | D12 / 18.5~26.5 |
| 540-100 | A1 | 150-300 | D16 / 25.5~36.5 or D20 / 29.5~40.5 |
| 540-200 | E5 | 200-400 | D20 / 32~49 or D25 / 37~52 |
| 540-300 | B2 | 300-500 | D25 / 38~58 or D32 / 46~57 |
| 540-400 | C3 | 400-700 | D32 / 47.5~87.5 or D40 / 55.5~91.5 or D45 / 61~91 |
| 540-500 | D1 | 600-1000 | D40 / 60~96 or D50 / 72~102 or D63 / 85~105 |
| Code | Model |
|---|---|
| 540-000 | A0 |
| 540-100 | A1 |
| 540-200 | E5 |
| 540-300 | B2 |
| 540-400 | C3 |
| 540-500 | D1 |
| TOOA0 | TOOA0 |
| TOOA1 | TOOA1 |
| TOOE5 | TOOE5 |
| TOOB2 | TOOB2 |
| TOOC3 | TOOC3 |
| TOOD1 | TOOD1 |
Application: Quick-change tool holders are characterized by their unlimited diversity in the use of lathe tools, drills, reamers and boring bars. Brand mark on page: H.D. HHT YAMA.
