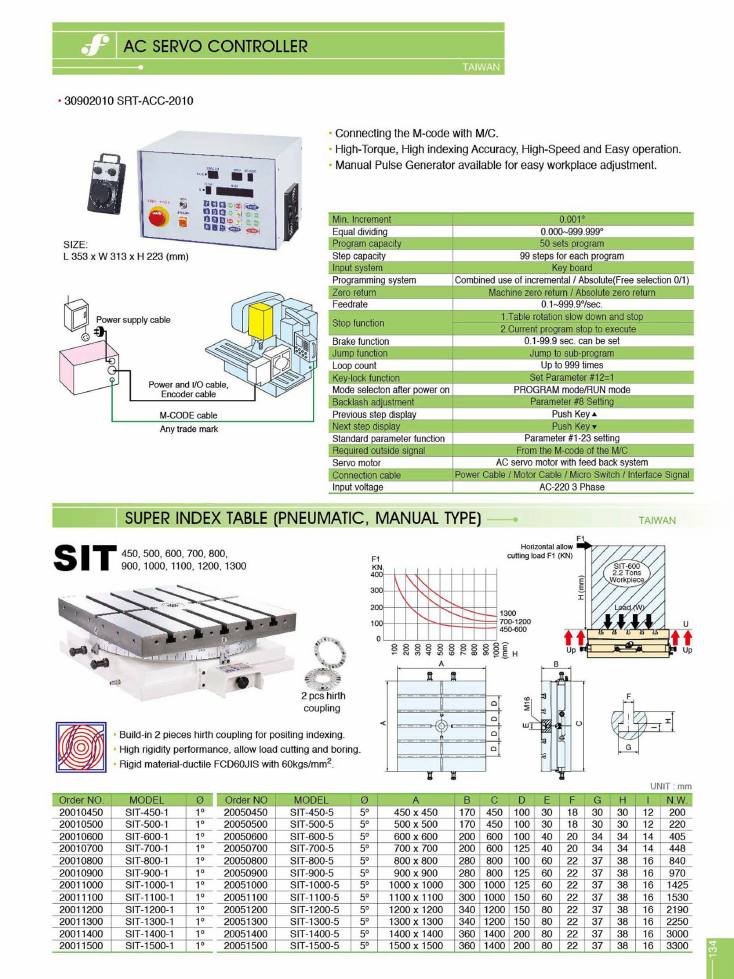

Frejoth accessory catalogue · Page 134
AC Servo Controller / Super Index Table (Pneumatic, Manual Type)
Models on this page
SIT-1000-1SIT-1000-5SIT-1100-1SIT-1100-5SIT-1200-1SIT-1200-5SIT-1300-1SIT-1300-5SIT-1400-1SIT-1400-5SIT-1500-1SIT-1500-5SIT-450-1SIT-450-5SIT-500-1SIT-500-5SIT-600-1SIT-600-5SIT-700-1SIT-700-5SIT-800-1SIT-800-5SIT-900-1SIT-900-5SRT-ACC-2010
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
AC Servo Controller
SRT-ACC · Taiwan
- Connecting the M-code with M/C.
- High-Torque, High indexing Accuracy, High-Speed and Easy operation.
- Manual Pulse Generator available for easy workplace adjustment.
| item | value |
|---|---|
| Min. Increment | 0.001° |
| Equal dividing | 0.000~999.999° |
| Program capacity | 50 sets program |
| Step capacity | 99 steps for each program |
| Input system | Key board |
| Programming system | Combined use of incremental / Absolute(Free selection 0/1) |
| Zero return | Machine zero return / Absolute zero return |
| Feedrate | 0.1~999.9°/sec. |
| Stop function | 1.Table rotation slow down and stop 2.Current program stop to execute |
| Brake function | 0.1-99.9 sec. can be set |
| Jump function | Jump to sub-program |
| Loop count | Up to 999 times |
| Key-lock function | Set Parameter #12=1 |
| Mode selecton after power on | PROGRAM mode/RUN mode |
| Backlash adjustment | Parameter #8 Setting |
| Previous step display | Push Key ▲ |
| Next step display | Push Key ▼ |
| Standard parameter function | Parameter #1-23 setting |
| Required outside signal | From the M-code of the M/C |
| Servo motor | AC servo motor with feed back system |
| Connection cable | Power Cable / Motor Cable / Micro Switch / Interface Signal |
| Input voltage | AC-220 3 Phase |
| Code | Model |
|---|---|
| 30902010 | SRT-ACC-2010 |
Order no. 30902010. Size: L 353 x W 313 x H 223 (mm). Connection diagram shows power supply cable, power and I/O cable, encoder cable and M-CODE cable to any trade mark machine.
Super Index Table (Pneumatic, Manual Type)
SIT · Taiwan
- Build-in 2 pieces hirth coupling for positing indexing.
- High rigidity performance, allow load cutting and boring.
- Rigid material-ductile FCD60JIS with 60kgs/mm².
| order_no_1deg | model_1deg | ø_1deg | order_no_5deg | model_5deg | ø_5deg | A | B | C | D | E | F | G | H | I | n_w |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20010450 | SIT-450-1 | 1° | 20050450 | SIT-450-5 | 5° | 450 x 450 | 170 | 450 | 100 | 30 | 18 | 30 | 30 | 12 | 200 |
| 20010500 | SIT-500-1 | 1° | 20050500 | SIT-500-5 | 5° | 500 x 500 | 170 | 450 | 100 | 30 | 18 | 30 | 30 | 12 | 220 |
| 20010600 | SIT-600-1 | 1° | 20050600 | SIT-600-5 | 5° | 600 x 600 | 200 | 600 | 100 | 40 | 20 | 34 | 34 | 14 | 405 |
| 20010700 | SIT-700-1 | 1° | 20050700 | SIT-700-5 | 5° | 700 x 700 | 200 | 600 | 125 | 40 | 20 | 34 | 34 | 14 | 448 |
| 20010800 | SIT-800-1 | 1° | 20050800 | SIT-800-5 | 5° | 800 x 800 | 280 | 800 | 100 | 60 | 22 | 37 | 38 | 16 | 840 |
| 20010900 | SIT-900-1 | 1° | 20050900 | SIT-900-5 | 5° | 900 x 900 | 280 | 800 | 125 | 60 | 22 | 37 | 38 | 16 | 970 |
| 20011000 | SIT-1000-1 | 1° | 20051000 | SIT-1000-5 | 5° | 1000 x 1000 | 300 | 1000 | 125 | 60 | 22 | 37 | 38 | 16 | 1425 |
| 20011100 | SIT-1100-1 | 1° | 20051100 | SIT-1100-5 | 5° | 1100 x 1100 | 300 | 1000 | 150 | 60 | 22 | 37 | 38 | 16 | 1530 |
| 20011200 | SIT-1200-1 | 1° | 20051200 | SIT-1200-5 | 5° | 1200 x 1200 | 340 | 1200 | 150 | 80 | 22 | 37 | 38 | 16 | 2190 |
| 20011300 | SIT-1300-1 | 1° | 20051300 | SIT-1300-5 | 5° | 1300 x 1300 | 340 | 1200 | 150 | 80 | 22 | 37 | 38 | 16 | 2250 |
| 20011400 | SIT-1400-1 | 1° | 20051400 | SIT-1400-5 | 5° | 1400 x 1400 | 360 | 1400 | 200 | 80 | 22 | 37 | 38 | 16 | 3000 |
| 20011500 | SIT-1500-1 | 1° | 20051500 | SIT-1500-5 | 5° | 1500 x 1500 | 360 | 1400 | 200 | 80 | 22 | 37 | 38 | 16 | 3300 |
| Code | Model |
|---|---|
| 20010450 | SIT-450-1 |
| 20050450 | SIT-450-5 |
| 20010500 | SIT-500-1 |
| 20050500 | SIT-500-5 |
| 20010600 | SIT-600-1 |
| 20050600 | SIT-600-5 |
| 20010700 | SIT-700-1 |
| 20050700 | SIT-700-5 |
| 20010800 | SIT-800-1 |
| 20050800 | SIT-800-5 |
| 20010900 | SIT-900-1 |
| 20050900 | SIT-900-5 |
| 20011000 | SIT-1000-1 |
| 20051000 | SIT-1000-5 |
| 20011100 | SIT-1100-1 |
| 20051100 | SIT-1100-5 |
| 20011200 | SIT-1200-1 |
| 20051200 | SIT-1200-5 |
| 20011300 | SIT-1300-1 |
| 20051300 | SIT-1300-5 |
| 20011400 | SIT-1400-1 |
| 20051400 | SIT-1400-5 |
| 20011500 | SIT-1500-1 |
| 20051500 | SIT-1500-5 |
Supplied with 2 pcs hirth coupling. Heading lists sizes 450, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300. A load chart plots horizontal allowable cutting load F1 (KN, 0-400) against workpiece height H (mm, 100-1000) with three curves labelled 1300, 700-1200 and 450-600; the illustration is annotated "SIT-600 2.2 Tons Workpiece". Table fixing shown as M16.
