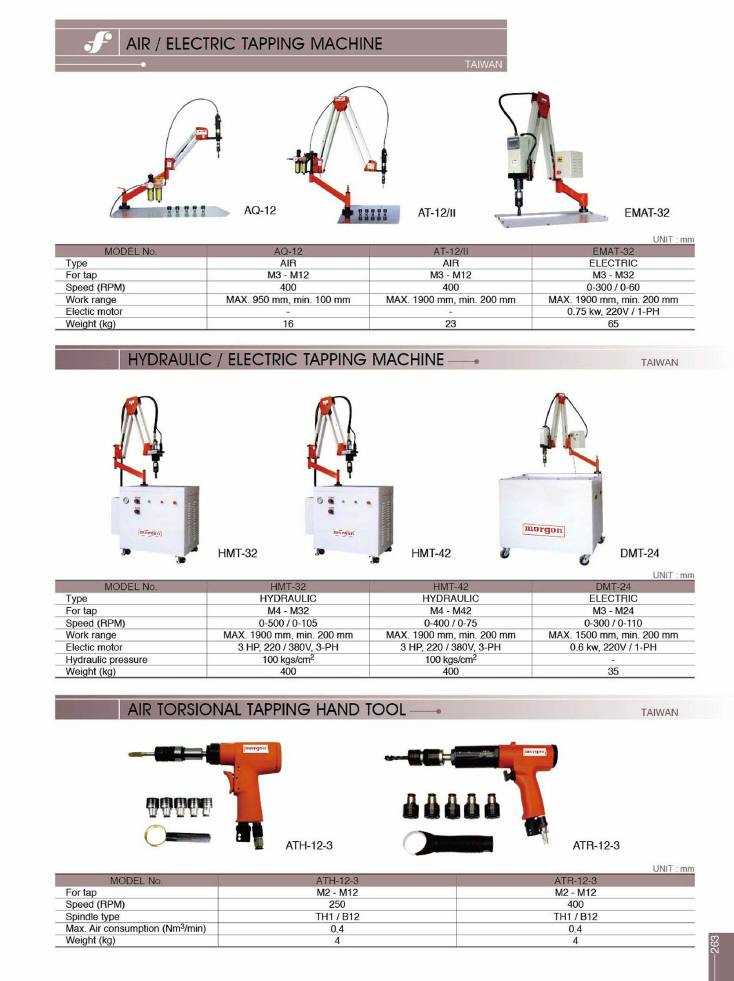

AIR / ELECTRIC TAPPINGMACHINE
Models on this page
AQ-12AT-12/IIATH-12-3ATR-12-3DMT-24EMAT-32HMT-32HMT-42
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
AIR / ELECTRIC TAPPING MACHINE
TAIWAN
| model_no | type | for_tap | speed_rpm | work_range | electic_motor | weight_kg |
|---|---|---|---|---|---|---|
| AQ-12 | AIR | M3 - M12 | 400 | MAX. 950 mm, min. 100 mm | — | 16 |
| AT-12/II | AIR | M3 - M12 | 400 | MAX. 1900 mm, min. 200 mm | — | 23 |
| EMAT-32 | ELECTRIC | M3 - M32 | 0-300 / 0-60 | MAX. 1900 mm, min. 200 mm | 0.75 kw, 220V / 1-PH | 65 |
| Code | Model |
|---|---|
| on request | AQ-12 |
| on request | AT-12/II |
| on request | EMAT-32 |
HYDRAULIC / ELECTRIC TAPPING MACHINE
morgon · TAIWAN
| model_no | type | for_tap | speed_rpm | work_range | electic_motor | hydraulic_pressure | weight_kg |
|---|---|---|---|---|---|---|---|
| HMT-32 | HYDRAULIC | M4 - M32 | 0-500 / 0-105 | MAX. 1900 mm, min. 200 mm | 3 HP, 220 / 380V, 3-PH | 100 kgs/cm2 | 400 |
| HMT-42 | HYDRAULIC | M4 - M42 | 0-400 / 0-75 | MAX. 1900 mm, min. 200 mm | 3 HP, 220 / 380V, 3-PH | 100 kgs/cm2 | 400 |
| DMT-24 | ELECTRIC | M3 - M24 | 0-300 / 0-110 | MAX. 1500 mm, min. 200 mm | 0.6 kw, 220V / 1-PH | — | 35 |
| Code | Model |
|---|---|
| on request | HMT-32 |
| on request | HMT-42 |
| on request | DMT-24 |
AIR TORSIONAL TAPPING HAND TOOL
morgon · TAIWAN
| model_no | for_tap | speed_rpm | spindle_type | max_air_consumption_nm3_min | weight_kg |
|---|---|---|---|---|---|
| ATH-12-3 | M2 - M12 | 250 | TH1 / B12 | 0.4 | 4 |
| ATR-12-3 | M2 - M12 | 400 | TH1 / B12 | 0.4 | 4 |
| Code | Model |
|---|---|
| on request | ATH-12-3 |
| on request | ATR-12-3 |
