Air Feed Tube
TB · Taiwan
specifications
model
max_speed
recommended_lubricant
max_pressure
TB-XX-18
8000min⁻¹
VG6 or Equal
8.2 kgf/cm² (0.8Mpa)
Order references
Code
Model
on request
TB-XX-18
Marked NEW. Model number is TB-XX-18 where XX is the tube length in units of 10 mm — 'Ex. Fill in 50 for required length of 500mm.' Dimension drawing annotations: (115), 74, 0.5, 10, 18, (36.5), (36), 28.5, 16, 28, ø40, ø20 (h7), ø16, ø8, 4×ports (ø8, ø8, ø6, ø6), thread 5/8"-32 UNF.
Air Feed Tube (For Grinding Machines)
TBC · Taiwan
specifications
model
max_speed
recommended_lubricant
max_pressure
coolant_connection_max_pressure
TBC-XX-18
8000min⁻¹
VG6 or Equal
8.2 kgf/cm² (0.8Mpa)
8.2 kgf/cm² (0.8Mpa)
Order references
Code
Model
on request
TBC-XX-18
Marked NEW. Model number is TBC-XX-18 where XX is the tube length in units of 10 mm — 'Ex. Fill in 50 for required length of 500mm.' Dimension drawing annotations: 107.5, 97, 0.5, 10, 18, (36.5), 24.5, 28.5, 16, 28, ø40, ø20 (h7), ø16, ø8, ports ø6/ø6/ø6, ø8 coolant inlet (ø8注水孔 / ø8Inlet), thread 5/8"-32 UNF.
Soft Jaws For Super Precision Chucks
J · Taiwan
drawing_dimensions (mm)
model
width
length
height_standard
height_heightened
chamfer_top
chamfer_body
mounting_holes
counterbore
dowel_hole
serration_pitch
front_offset
nose_angle
nose_step
J-04
20
53
26
38
2-C1
4-C1
2-ø5.5
ø9x19L
ø3.2x5L
12.7
14.95
30°
1
J-06
26
78
30
45
2-C1
4-C1
4-ø5.5
ø9.5x23L
ø3.2x5L
12.7
8.25
30°
1
J-08
40
100
50
75
2-C1
4-C1
2-ø11
ø17x40L
ø6.37x6L
25.4
27.3
30°
8
Order references
Code
Model
on request
J-04
on request
J-06
on request
J-08

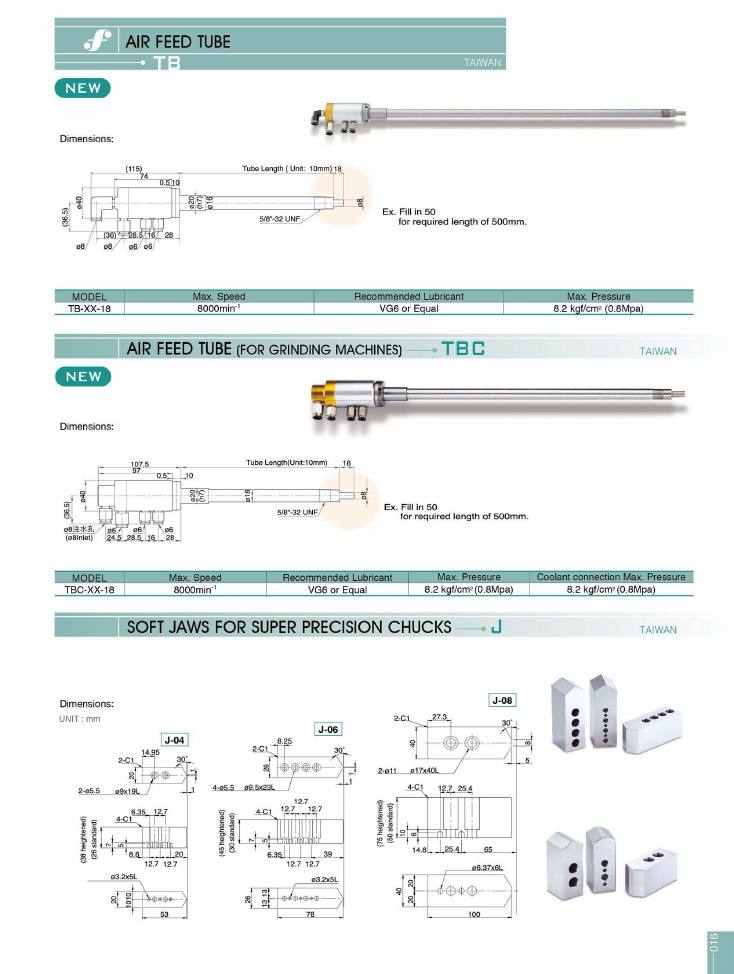

Three sizes shown as dimensioned drawings only — the page prints no specification table for these. Values below were read off the drawings. Photographs show plain, stepped and drilled jaw blanks.
