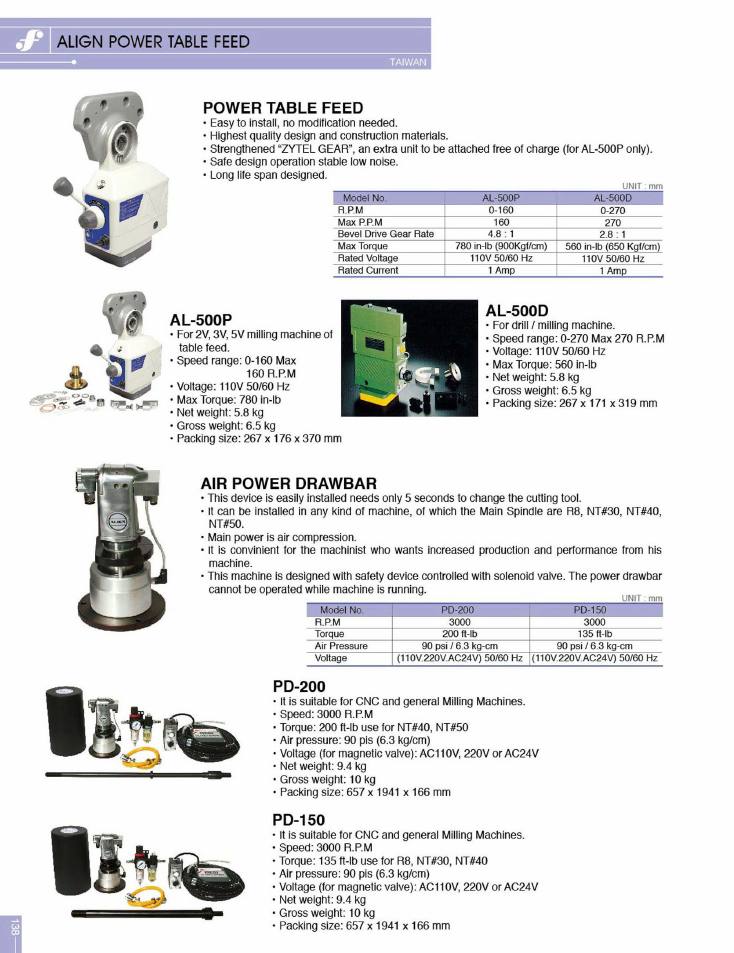

Frejoth accessory catalogue · Page 138
Align power table feed
Models on this page
AL-500DAL-500PPD-150PD-200
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Power Table Feed
AL · Taiwan
- Easy to install, no modification needed.
- Highest quality design and construction materials.
- Strengthened "ZYTEL GEAR", an extra unit to be attached free of charge (for AL-500P only).
- Safe design operation stable low noise.
- Long life span designed.
| model_no | AL-500P | AL-500D |
|---|---|---|
| R.P.M | 0-160 | 0-270 |
| Max P.P.M | 160 | 270 |
| Bevel Drive Gear Rate | 4.8 : 1 | 2.8 : 1 |
| Max Torque | 780 in-lb (900Kgf/cm) | 560 in-lb (650 Kgf/cm) |
| Rated Voltage | 110V 50/60 Hz | 110V 50/60 Hz |
| Rated Current | 1 Amp | 1 Amp |
| model_no | net_weight_kg | gross_weight_kg | packing_size_mm |
|---|---|---|---|
| AL-500P | 5.8 | 6.5 | 267 x 176 x 370 |
| AL-500D | 5.8 | 6.5 | 267 x 171 x 319 |
| Code | Model |
|---|---|
| on request | AL-500P |
| on request | AL-500D |
AL-500P: for 2V, 3V, 5V milling machine of table feed. AL-500D: for drill / milling machine.
Air Power Drawbar
PD · Taiwan
- This device is easily installed needs only 5 seconds to change the cutting tool.
- It can be installed in any kind of machine, of which the Main Spindle are R8, NT#30, NT#40, NT#50.
- Main power is air compression.
- It is convinient for the machinist who wants increased production and performance from his machine.
- This machine is designed with safety device controlled with solenoid valve. The power drawbar cannot be operated while machine is running.
| model_no | PD-200 | PD-150 |
|---|---|---|
| R.P.M | 3000 | 3000 |
| Torque | 200 ft-lb | 135 ft-lb |
| Air Pressure | 90 psi / 6.3 kg-cm | 90 psi / 6.3 kg-cm |
| Voltage | (110V.220V.AC24V) 50/60 Hz | (110V.220V.AC24V) 50/60 Hz |
| model_no | net_weight_kg | gross_weight_kg | packing_size_mm |
|---|---|---|---|
| PD-200 | 9.4 | 10 | 657 x 1941 x 166 |
| PD-150 | 9.4 | 10 | 657 x 1941 x 166 |
| Code | Model |
|---|---|
| on request | PD-200 |
| on request | PD-150 |
PD-200 torque 200 ft-lb, use for NT#40, NT#50. PD-150 torque 135 ft-lb, use for R8, NT#30, NT#40. Both suitable for CNC and general milling machines.
