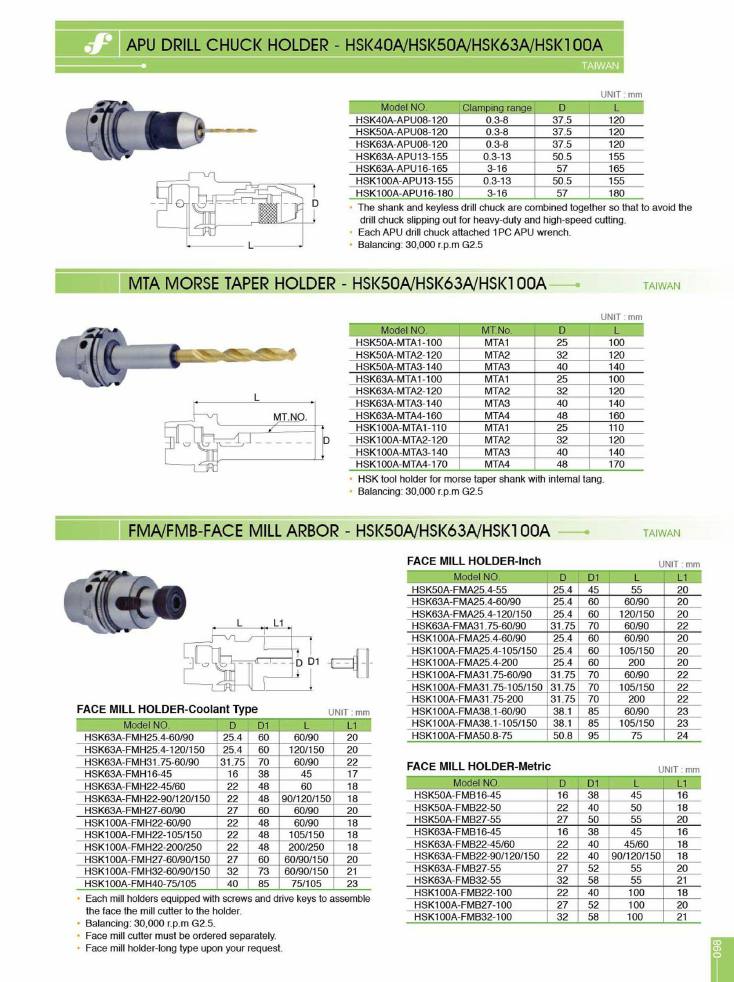

Frejoth accessory catalogue · Page 98

APU drill chuck holder / MTA morse taper holder / FMA-FMB face mill arbor (HSK)

Models on this page

HSK100A-APU13-155HSK100A-APU16-180HSK100A-FMA25.4-105/150HSK100A-FMA25.4-200HSK100A-FMA25.4-60/90HSK100A-FMA31.75-105/150HSK100A-FMA31.75-200HSK100A-FMA31.75-60/90HSK100A-FMA38.1-105/150HSK100A-FMA38.1-60/90HSK100A-FMA50.8-75HSK100A-FMB22-100HSK100A-FMB27-100HSK100A-FMB32-100HSK100A-FMH22-105/150HSK100A-FMH22-200/250HSK100A-FMH22-60/90HSK100A-FMH27-60/90/150HSK100A-FMH32-60/90/150HSK100A-FMH40-75/105HSK100A-MTA1-110HSK100A-MTA2-120HSK100A-MTA3-140HSK100A-MTA4-170HSK40A-APU08-120HSK50A-APU08-120HSK50A-FMA25.4-55HSK50A-FMB16-45HSK50A-FMB22-50HSK50A-FMB27-55HSK50A-MTA1-100HSK50A-MTA2-120HSK50A-MTA3-140HSK63A-APU08-120HSK63A-APU13-155HSK63A-APU16-165HSK63A-FMA25.4-120/150HSK63A-FMA25.4-60/90HSK63A-FMA31.75-60/90HSK63A-FMB16-45HSK63A-FMB22-45/60HSK63A-FMB22-90/120/150HSK63A-FMB27-55HSK63A-FMB32-55HSK63A-FMH16-45HSK63A-FMH22-45/60HSK63A-FMH22-90/120/150HSK63A-FMH25.4-120/150HSK63A-FMH25.4-60/90HSK63A-FMH27-60/90HSK63A-FMH31.75-60/90HSK63A-MTA1-100HSK63A-MTA2-120HSK63A-MTA3-140HSK63A-MTA4-160

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

APU Drill Chuck Holder - HSK40A/HSK50A/HSK63A/HSK100A

APU · Taiwan

The shank and keyless drill chuck are combined together so as to avoid the drill chuck slipping out for heavy-duty and high-speed cutting.
Each APU drill chuck attached 1PC APU wrench.
Balancing: 30,000 r.p.m G2.5

dimensions (mm)
model_no	clamping_range	d	l
HSK40A-APU08-120	0.3-8	37.5	120
HSK50A-APU08-120	0.3-8	37.5	120
HSK63A-APU08-120	0.3-8	37.5	120
HSK63A-APU13-155	0.3-13	50.5	155
HSK63A-APU16-165	3-16	57	165
HSK100A-APU13-155	0.3-13	50.5	155
HSK100A-APU16-180	3-16	57	180

Order references
Code	Model
on request	HSK40A-APU08-120
on request	HSK50A-APU08-120
on request	HSK63A-APU08-120
on request	HSK63A-APU13-155
on request	HSK63A-APU16-165
on request	HSK100A-APU13-155
on request	HSK100A-APU16-180

MTA Morse Taper Holder - HSK50A/HSK63A/HSK100A

MTA · Taiwan

HSK tool holder for morse taper shank with internal tang.
Balancing: 30,000 r.p.m G2.5

dimensions (mm)
model_no	mt_no	d	l
HSK50A-MTA1-100	MTA1	25	100
HSK50A-MTA2-120	MTA2	32	120
HSK50A-MTA3-140	MTA3	40	140
HSK63A-MTA1-100	MTA1	25	100
HSK63A-MTA2-120	MTA2	32	120
HSK63A-MTA3-140	MTA3	40	140
HSK63A-MTA4-160	MTA4	48	160
HSK100A-MTA1-110	MTA1	25	110
HSK100A-MTA2-120	MTA2	32	120
HSK100A-MTA3-140	MTA3	40	140
HSK100A-MTA4-170	MTA4	48	170

Order references
Code	Model
on request	HSK50A-MTA1-100
on request	HSK50A-MTA2-120
on request	HSK50A-MTA3-140
on request	HSK63A-MTA1-100
on request	HSK63A-MTA2-120
on request	HSK63A-MTA3-140
on request	HSK63A-MTA4-160
on request	HSK100A-MTA1-110
on request	HSK100A-MTA2-120
on request	HSK100A-MTA3-140
on request	HSK100A-MTA4-170

FMA/FMB-Face Mill Arbor - HSK50A/HSK63A/HSK100A

FMA/FMB/FMH · Taiwan

Each mill holder is equipped with screws and drive keys to assemble the face mill cutter to the holder.
Balancing: 30,000 r.p.m G2.5.
Face mill cutter must be ordered separately.
Face mill holder-long type upon your request.

face_mill_holder_inch (mm)
model_no	d	d1	l	l1
HSK50A-FMA25.4-55	25.4	45	55	20
HSK63A-FMA25.4-60/90	25.4	60	60/90	20
HSK63A-FMA25.4-120/150	25.4	60	120/150	20
HSK63A-FMA31.75-60/90	31.75	70	60/90	22
HSK100A-FMA25.4-60/90	25.4	60	60/90	20
HSK100A-FMA25.4-105/150	25.4	60	105/150	20
HSK100A-FMA25.4-200	25.4	60	200	20
HSK100A-FMA31.75-60/90	31.75	70	60/90	22
HSK100A-FMA31.75-105/150	31.75	70	105/150	22
HSK100A-FMA31.75-200	31.75	70	200	22
HSK100A-FMA38.1-60/90	38.1	85	60/90	23
HSK100A-FMA38.1-105/150	38.1	85	105/150	23
HSK100A-FMA50.8-75	50.8	95	75	24

face_mill_holder_metric (mm)
model_no	d	d1	l	l1
HSK50A-FMB16-45	16	38	45	16
HSK50A-FMB22-50	22	40	50	18
HSK50A-FMB27-55	27	50	55	20
HSK63A-FMB16-45	16	38	45	16
HSK63A-FMB22-45/60	22	40	45/60	18
HSK63A-FMB22-90/120/150	22	40	90/120/150	18
HSK63A-FMB27-55	27	52	55	20
HSK63A-FMB32-55	32	58	55	21
HSK100A-FMB22-100	22	40	100	18
HSK100A-FMB27-100	27	52	100	20
HSK100A-FMB32-100	32	58	100	21

face_mill_holder_coolant_type (mm)
model_no	d	d1	l	l1
HSK63A-FMH25.4-60/90	25.4	60	60/90	20
HSK63A-FMH25.4-120/150	25.4	60	120/150	20
HSK63A-FMH31.75-60/90	31.75	70	60/90	22
HSK63A-FMH16-45	16	38	45	17
HSK63A-FMH22-45/60	22	48	60	18
HSK63A-FMH22-90/120/150	22	48	90/120/150	18
HSK63A-FMH27-60/90	27	60	60/90	20
HSK100A-FMH22-60/90	22	48	60/90	18
HSK100A-FMH22-105/150	22	48	105/150	18
HSK100A-FMH22-200/250	22	48	200/250	18
HSK100A-FMH27-60/90/150	27	60	60/90/150	20
HSK100A-FMH32-60/90/150	32	73	60/90/150	21
HSK100A-FMH40-75/105	40	85	75/105	23
