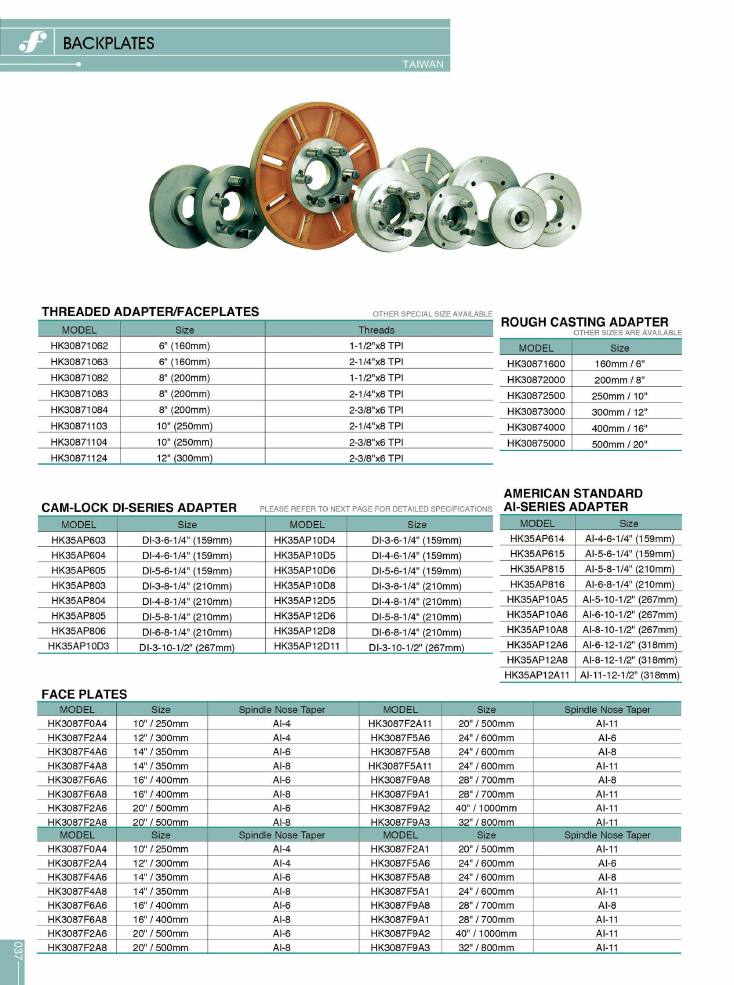

Frejoth accessory catalogue · Page 37
Backplates
Models on this page
HK30871062HK30871063HK30871082HK30871083HK30871084HK30871103HK30871104HK30871124HK30871600HK30872000HK30872500HK30873000HK30874000HK30875000HK3087F0A4HK3087F2A1HK3087F2A11HK3087F2A4HK3087F2A6HK3087F2A8HK3087F4A6HK3087F4A8HK3087F5A1HK3087F5A11HK3087F5A6HK3087F5A8HK3087F6A6HK3087F6A8HK3087F9A1HK3087F9A2HK3087F9A3HK3087F9A8HK35AP10A5HK35AP10A6HK35AP10A8HK35AP10D3HK35AP10D4HK35AP10D5HK35AP10D6HK35AP10D8HK35AP12A11HK35AP12A6HK35AP12A8HK35AP12D11HK35AP12D5HK35AP12D6HK35AP12D8HK35AP603HK35AP604HK35AP605HK35AP614HK35AP615HK35AP803HK35AP804HK35AP805HK35AP806HK35AP815HK35AP816
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Threaded Adapter / Faceplates
Taiwan
| model | size | threads |
|---|---|---|
| HK30871062 | 6" (160mm) | 1-1/2"x8 TPI |
| HK30871063 | 6" (160mm) | 2-1/4"x8 TPI |
| HK30871082 | 8" (200mm) | 1-1/2"x8 TPI |
| HK30871083 | 8" (200mm) | 2-1/4"x8 TPI |
| HK30871084 | 8" (200mm) | 2-3/8"x6 TPI |
| HK30871103 | 10" (250mm) | 2-1/4"x8 TPI |
| HK30871104 | 10" (250mm) | 2-3/8"x6 TPI |
| HK30871124 | 12" (300mm) | 2-3/8"x6 TPI |
| Code | Model |
|---|---|
| HK30871062 | HK30871062 |
| HK30871063 | HK30871063 |
| HK30871082 | HK30871082 |
| HK30871083 | HK30871083 |
| HK30871084 | HK30871084 |
| HK30871103 | HK30871103 |
| HK30871104 | HK30871104 |
| HK30871124 | HK30871124 |
Other special size available.
Rough Casting Adapter
Taiwan
| model | size |
|---|---|
| HK30871600 | 160mm / 6" |
| HK30872000 | 200mm / 8" |
| HK30872500 | 250mm / 10" |
| HK30873000 | 300mm / 12" |
| HK30874000 | 400mm / 16" |
| HK30875000 | 500mm / 20" |
| Code | Model |
|---|---|
| HK30871600 | HK30871600 |
| HK30872000 | HK30872000 |
| HK30872500 | HK30872500 |
| HK30873000 | HK30873000 |
| HK30874000 | HK30874000 |
| HK30875000 | HK30875000 |
Other sizes are available.
Cam-Lock DI-Series Adapter
Taiwan
| model | size |
|---|---|
| HK35AP603 | DI-3-6-1/4" (159mm) |
| HK35AP604 | DI-4-6-1/4" (159mm) |
| HK35AP605 | DI-5-6-1/4" (159mm) |
| HK35AP803 | DI-3-8-1/4" (210mm) |
| HK35AP804 | DI-4-8-1/4" (210mm) |
| HK35AP805 | DI-5-8-1/4" (210mm) |
| HK35AP806 | DI-6-8-1/4" (210mm) |
| HK35AP10D3 | DI-3-10-1/2" (267mm) |
| HK35AP10D4 | DI-3-6-1/4" (159mm) |
| HK35AP10D5 | DI-4-6-1/4" (159mm) |
| HK35AP10D6 | DI-5-6-1/4" (159mm) |
| HK35AP10D8 | DI-3-8-1/4" (210mm) |
| HK35AP12D5 | DI-4-8-1/4" (210mm) |
| HK35AP12D6 | DI-5-8-1/4" (210mm) |
| HK35AP12D8 | DI-6-8-1/4" (210mm) |
| HK35AP12D11 | DI-3-10-1/2" (267mm) |
| Code | Model |
|---|---|
| HK35AP603 | HK35AP603 |
| HK35AP604 | HK35AP604 |
| HK35AP605 | HK35AP605 |
| HK35AP803 | HK35AP803 |
| HK35AP804 | HK35AP804 |
| HK35AP805 | HK35AP805 |
| HK35AP806 | HK35AP806 |
| HK35AP10D3 | HK35AP10D3 |
| HK35AP10D4 | HK35AP10D4 |
| HK35AP10D5 | HK35AP10D5 |
| HK35AP10D6 | HK35AP10D6 |
| HK35AP10D8 | HK35AP10D8 |
| HK35AP12D5 | HK35AP12D5 |
| HK35AP12D6 | HK35AP12D6 |
| HK35AP12D8 | HK35AP12D8 |
| HK35AP12D11 | HK35AP12D11 |
Please refer to next page for detailed specifications.
American Standard AI-Series Adapter
Taiwan
| model | size |
|---|---|
| HK35AP614 | AI-4-6-1/4" (159mm) |
| HK35AP615 | AI-5-6-1/4" (159mm) |
| HK35AP815 | AI-5-8-1/4" (210mm) |
| HK35AP816 | AI-6-8-1/4" (210mm) |
| HK35AP10A5 | AI-5-10-1/2" (267mm) |
| HK35AP10A6 | AI-6-10-1/2" (267mm) |
| HK35AP10A8 | AI-8-10-1/2" (267mm) |
| HK35AP12A6 | AI-6-12-1/2" (318mm) |
| HK35AP12A8 | AI-8-12-1/2" (318mm) |
| HK35AP12A11 | AI-11-12-1/2" (318mm) |
| Code | Model |
|---|---|
| HK35AP614 | HK35AP614 |
| HK35AP615 | HK35AP615 |
| HK35AP815 | HK35AP815 |
| HK35AP816 | HK35AP816 |
| HK35AP10A5 | HK35AP10A5 |
| HK35AP10A6 | HK35AP10A6 |
| HK35AP10A8 | HK35AP10A8 |
| HK35AP12A6 | HK35AP12A6 |
| HK35AP12A8 | HK35AP12A8 |
| HK35AP12A11 | HK35AP12A11 |
Face Plates
Taiwan
| model | size | spindle_nose_taper | model_2 | size_2 | spindle_nose_taper_2 |
|---|---|---|---|---|---|
| HK3087F0A4 | 10" / 250mm | AI-4 | HK3087F2A11 | 20" / 500mm | AI-11 |
| HK3087F2A4 | 12" / 300mm | AI-4 | HK3087F5A6 | 24" / 600mm | AI-6 |
| HK3087F4A6 | 14" / 350mm | AI-6 | HK3087F5A8 | 24" / 600mm | AI-8 |
| HK3087F4A8 | 14" / 350mm | AI-8 | HK3087F5A11 | 24" / 600mm | AI-11 |
| HK3087F6A6 | 16" / 400mm | AI-6 | HK3087F9A8 | 28" / 700mm | AI-8 |
| HK3087F6A8 | 16" / 400mm | AI-8 | HK3087F9A1 | 28" / 700mm | AI-11 |
| HK3087F2A6 | 20" / 500mm | AI-6 | HK3087F9A2 | 40" / 1000mm | AI-11 |
| HK3087F2A8 | 20" / 500mm | AI-8 | HK3087F9A3 | 32" / 800mm | AI-11 |
| model | size | spindle_nose_taper | model_2 | size_2 | spindle_nose_taper_2 |
|---|---|---|---|---|---|
| HK3087F0A4 | 10" / 250mm | AI-4 | HK3087F2A1 | 20" / 500mm | AI-11 |
| HK3087F2A4 | 12" / 300mm | AI-4 | HK3087F5A6 | 24" / 600mm | AI-6 |
| HK3087F4A6 | 14" / 350mm | AI-6 | HK3087F5A8 | 24" / 600mm | AI-8 |
| HK3087F4A8 | 14" / 350mm | AI-8 | HK3087F5A1 | 24" / 600mm | AI-11 |
| HK3087F6A6 | 16" / 400mm | AI-6 | HK3087F9A8 | 28" / 700mm | AI-8 |
| HK3087F6A8 | 16" / 400mm | AI-8 | HK3087F9A1 | 28" / 700mm | AI-11 |
| HK3087F2A6 | 20" / 500mm | AI-6 | HK3087F9A2 | 40" / 1000mm | AI-11 |
| HK3087F2A8 | 20" / 500mm | AI-8 | HK3087F9A3 | 32" / 800mm | AI-11 |
| Code | Model |
|---|---|
| HK3087F0A4 | HK3087F0A4 |
| HK3087F2A11 | HK3087F2A11 |
| HK3087F2A4 | HK3087F2A4 |
| HK3087F5A6 | HK3087F5A6 |
| HK3087F4A6 | HK3087F4A6 |
| HK3087F5A8 | HK3087F5A8 |
| HK3087F4A8 | HK3087F4A8 |
| HK3087F5A11 | HK3087F5A11 |
| HK3087F6A6 | HK3087F6A6 |
| HK3087F9A8 | HK3087F9A8 |
| HK3087F6A8 | HK3087F6A8 |
| HK3087F9A1 | HK3087F9A1 |
| HK3087F2A6 | HK3087F2A6 |
| HK3087F9A2 | HK3087F9A2 |
| HK3087F2A8 | HK3087F2A8 |
| HK3087F9A3 | HK3087F9A3 |
| HK3087F2A1 | HK3087F2A1 |
| HK3087F5A1 | HK3087F5A1 |
Printed as two side-by-side model/size/taper column pairs, and the whole block is printed twice on this page.
