BOLT FOR INJECTION MOLD

Models on this page

BM-75004BM-75005BM-75006BM-75007BM-75010BM-76004BM-76005BM-76006BM-76007BM-76008BM-76010BM-77006BM-77007BM-77008BM-78007BM-78008BM-78009BM-78010BMM-74005BMM-74006BMM-74007BMM-75004BMM-75005BMM-75006BMM-75007BMM-75008BMM-75010BMM-76005BMM-76006BMM-76007BMM-77004BMM-77005BMM-77006BMM-77007BMM-77008BMM-77010BMM-77506BMM-77507BMM-77508BMM-78006BMM-78007BMM-78008BMM-78010

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

BOLT FOR INJECTION MOLD

BMM / BM · Taiwan

metric_size (mm)
model_no	metric_size	a	b	c	d	e
BMM-74005	M12x1.75	120	30	14	20	55
BMM-74006	M12x1.75	150	30	14	20	75
BMM-74007	M12x1.75	175	30	14	20	90
BMM-75004	M16x2.0	100	25	17	15	55
BMM-75005	M16x2.0	130	35	17	20	65
BMM-75006	M16x2.0	155	40	17	25	80
BMM-75007	M16x2.0	180	40	17	25	90
BMM-75008	M16x2.0	200	40	17	25	90
BMM-75010	M16x2.0	250	40	17	25	90
BMM-76005	M18x2.5	130	35	19	20	65
BMM-76006	M18x2.5	155	35	19	25	80
BMM-76007	M18x2.5	180	40	19	25	90
BMM-77004	M20x2.5	100	25	21	15	50
BMM-77005	M20x2.5	130	35	21	20	65
BMM-77006	M20x2.5	155	40	21	25	80
BMM-77007	M20x2.5	180	40	21	25	90
BMM-77008	M20x2.5	200	45	21	25	90
BMM-77010	M20x2.5	250	45	21	25	90
BMM-77506	M22x2.5	155	40	23	20	80
BMM-77507	M22x2.5	180	40	23	20	90
BMM-77508	M22x2.5	200	40	23	20	90
BMM-78006	M24x3.0	155	40	26	25	80
BMM-78007	M24x3.0	185	40	26	25	90
BMM-78008	M24x3.0	200	40	26	25	90
BMM-78010	M24x3.0	255	40	26	25	90

inch_size (mm)
model_no	inch_size	a	b	c	d	e
BM-75004	5/8"-11W	100	25	17	15	55
BM-75005	5/8"-11W	130	30	17	20	65
BM-75006	5/8"-11W	150	40	17	25	75
BM-75007	5/8"-11W	175	40	17	25	90
BM-75010	5/8"-11W	250	50	17	25	90
BM-76004	3/4"-10W	100	25	19	15	55
BM-76005	3/4"-10W	135	35	19	20	65
BM-76006	3/4"-10W	155	35	19	25	80
BM-76007	3/4"-10W	180	40	19	25	90
BM-76008	3/4"-10W	200	40	19	25	90
BM-76010	3/4"-10W	250	50	19	25	90
BM-77006	7/8"-9W	155	40	23	20	80
BM-77007	7/8"-9W	180	40	23	20	90
BM-77008	7/8"-9W	200	40	23	20	90
BM-78007	1"-8W	175	40	26	25	90
BM-78008	1"-8W	200	40	26	25	90
BM-78009	1"-8W	225	40	26	25	90
BM-78010	1"-8W	250	40	26	25	90

Order references
Code	Model
on request	BMM-74005
on request	BMM-74006
on request	BMM-74007
on request	BMM-75004
on request	BMM-75005
on request	BMM-75006
on request	BMM-75007
on request	BMM-75008
on request	BMM-75010
on request	BMM-76005
on request	BMM-76006
on request	BMM-76007
on request	BMM-77004
on request	BMM-77005
on request	BMM-77006
on request	BMM-77007
on request	BMM-77008
on request	BMM-77010
on request	BMM-77506
on request	BMM-77507
on request	BMM-77508
on request	BMM-78006
on request	BMM-78007
on request	BMM-78008
on request	BMM-78010
on request	BM-75004
on request	BM-75005
on request	BM-75006
on request	BM-75007
on request	BM-75010
on request	BM-76004
on request	BM-76005
on request	BM-76006
on request	BM-76007
on request	BM-76008
on request	BM-76010
on request	BM-77006
on request	BM-77007
on request	BM-77008
on request	BM-78007
on request	BM-78008
on request	BM-78009
on request	BM-78010

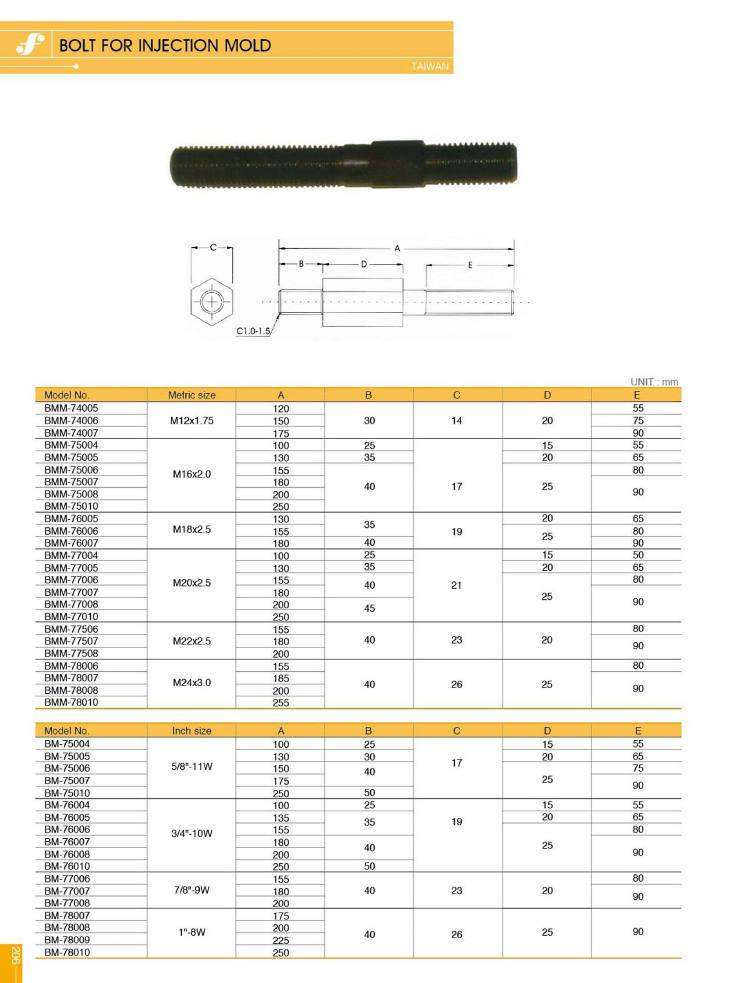

Stud bolt with a hex collar; chamfer marked C1.0-1.5 on the drawing. Dimensions A (overall length), B, C (hex across flats), D, E.
