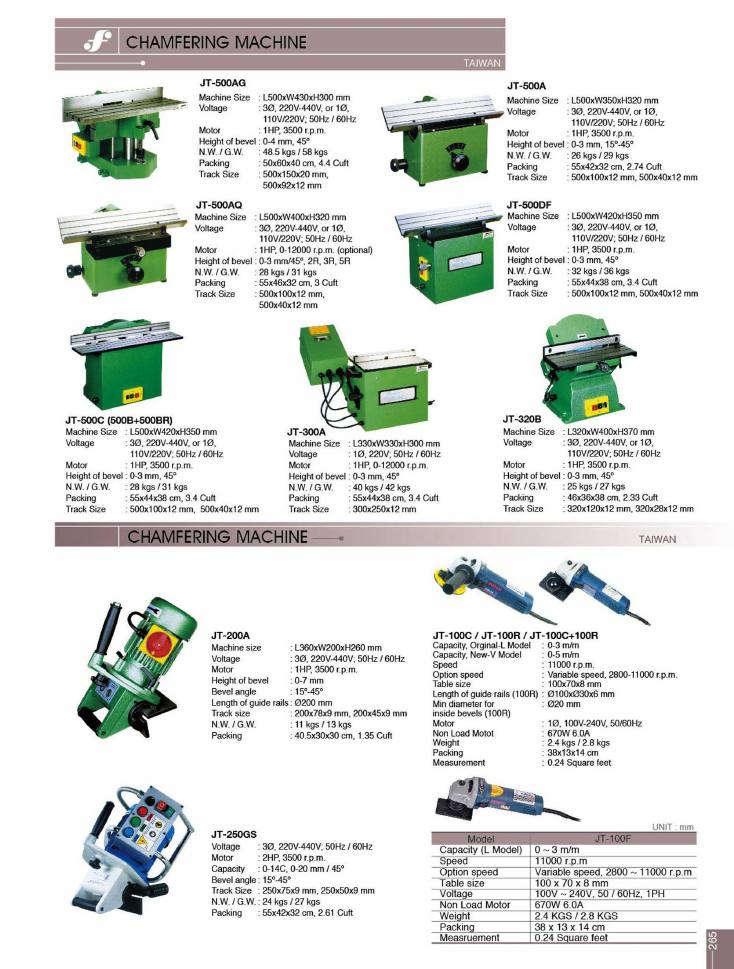

Frejoth accessory catalogue · Page 268
CHAMFERING MACHINE
Models on this page
JT-100C / JT-100R / JT-100C+100RJT-100FJT-200AJT-250GSJT-300AJT-320BJT-500AJT-500AGJT-500AQJT-500C (500B+500BR)JT-500DF
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CHAMFERING MACHINE
JT · TAIWAN
| model | machine_size | voltage | motor | height_of_bevel | nw_gw | packing | track_size |
|---|---|---|---|---|---|---|---|
| JT-500AG | L500xW430xH300 mm | 3Ø, 220V-440V, or 1Ø, 110V/220V; 50Hz / 60Hz | 1HP, 3500 r.p.m. | 0-4 mm, 45° | 48.5 kgs / 58 kgs | 50x60x40 cm, 4.4 Cuft | 500x150x20 mm, 500x92x12 mm |
| JT-500A | L500xW350xH320 mm | 3Ø, 220V-440V, or 1Ø, 110V/220V; 50Hz / 60Hz | 1HP, 3500 r.p.m. | 0-3 mm, 15°-45° | 26 kgs / 29 kgs | 55x42x32 cm, 2.74 Cuft | 500x100x12 mm, 500x40x12 mm |
| JT-500AQ | L500xW400xH320 mm | 3Ø, 220V-440V, or 1Ø, 110V/220V; 50Hz / 60Hz | 1HP, 0-12000 r.p.m. (optional) | 0-3 mm/45°, 2R, 3R, 5R | 28 kgs / 31 kgs | 55x46x32 cm, 3 Cuft | 500x100x12 mm, 500x40x12 mm |
| JT-500DF | L500xW420xH350 mm | 3Ø, 220V-440V, or 1Ø, 110V/220V; 50Hz / 60Hz | 1HP, 3500 r.p.m. | 0-3 mm, 45° | 32 kgs / 36 kgs | 55x44x38 cm, 3.4 Cuft | 500x100x12 mm, 500x40x12 mm |
| JT-500C (500B+500BR) | L500xW420xH350 mm | 3Ø, 220V-440V, or 1Ø, 110V/220V; 50Hz / 60Hz | 1HP, 3500 r.p.m. | 0-3 mm, 45° | 28 kgs / 31 kgs | 55x44x38 cm, 3.4 Cuft | 500x100x12 mm, 500x40x12 mm |
| JT-300A | L330xW330xH300 mm | 1Ø, 220V; 50Hz / 60Hz | 1HP, 0-12000 r.p.m. | 0-3 mm, 45° | 40 kgs / 42 kgs | 55x44x38 cm, 3.4 Cuft | 300x250x12 mm |
| JT-320B | L320xW400xH370 mm | 3Ø, 220V-440V, or 1Ø, 110V/220V; 50Hz / 60Hz | 1HP, 3500 r.p.m. | 0-3 mm, 45° | 25 kgs / 27 kgs | 46x36x38 cm, 2.33 Cuft | 320x120x12 mm, 320x28x12 mm |
| Code | Model |
|---|---|
| on request | JT-500AG |
| on request | JT-500A |
| on request | JT-500AQ |
| on request | JT-500DF |
| on request | JT-500C (500B+500BR) |
| on request | JT-300A |
| on request | JT-320B |
| on request | JT-200A |
| on request | JT-100C / JT-100R / JT-100C+100R |
| on request | JT-250GS |
| on request | JT-100F |
Bench/stand-mounted chamfering machines. Specifications are printed as a labelled list beside each photograph rather than as a grid; consolidated here into one table.
CHAMFERING MACHINE
JT · TAIWAN
| model | machine_size | voltage | motor | height_of_bevel | bevel_angle | length_of_guide_rails | track_size | nw_gw | packing |
|---|---|---|---|---|---|---|---|---|---|
| JT-200A | L360xW200xH260 mm | 3Ø, 220V-440V; 50Hz / 60Hz | 1HP, 3500 r.p.m. | 0-7 mm | 15°-45° | Ø200 mm | 200x78x9 mm, 200x45x9 mm | 11 kgs / 13 kgs | 40.5x30x30 cm, 1.35 Cuft |
| model | capacity_orginal_l_model | capacity_new_v_model | speed | option_speed | table_size | length_of_guide_rails_100r | min_diameter_for_inside_bevels_100r | motor | non_load_motot | weight | packing | measurement |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JT-100C / JT-100R / JT-100C+100R | 0-3 m/m | 0-5 m/m | 11000 r.p.m. | Variable speed, 2800-11000 r.p.m. | 100x70x8 mm | Ø100xØ30x6 mm | Ø20 mm | 1Ø, 100V-240V, 50/60Hz | 670W 6.0A | 2.4 kgs / 2.8 kgs | 38x13x14 cm | 0.24 Square feet |
| model | voltage | motor | capacity | bevel_angle | track_size | nw_gw | packing |
|---|---|---|---|---|---|---|---|
| JT-250GS | 3Ø, 220V-440V; 50Hz / 60Hz | 2HP, 3500 r.p.m. | 0-14C, 0-20 mm / 45° | 15°-45° | 250x75x9 mm, 250x50x9 mm | 24 kgs / 27 kgs | 55x42x32 cm, 2.61 Cuft |
| model | capacity_l_model | speed | option_speed | table_size | voltage | non_load_motor | weight | packing | measruement |
|---|---|---|---|---|---|---|---|---|---|
| JT-100F | 0 ~ 3 m/m | 11000 r.p.m. | Variable speed, 2800 ~ 11000 r.p.m | 100 x 70 x 8 mm | 100V ~ 240V, 50 / 60Hz, 1PH | 670W 6.0A | 2.4 KGS / 2.8 KGS | 38 x 13 x 14 cm | 0.24 Square feet |
Portable / hand-held chamfering machines. Each model carries its own set of spec labels, so they are recorded as separate tables rather than forced into one column set.
