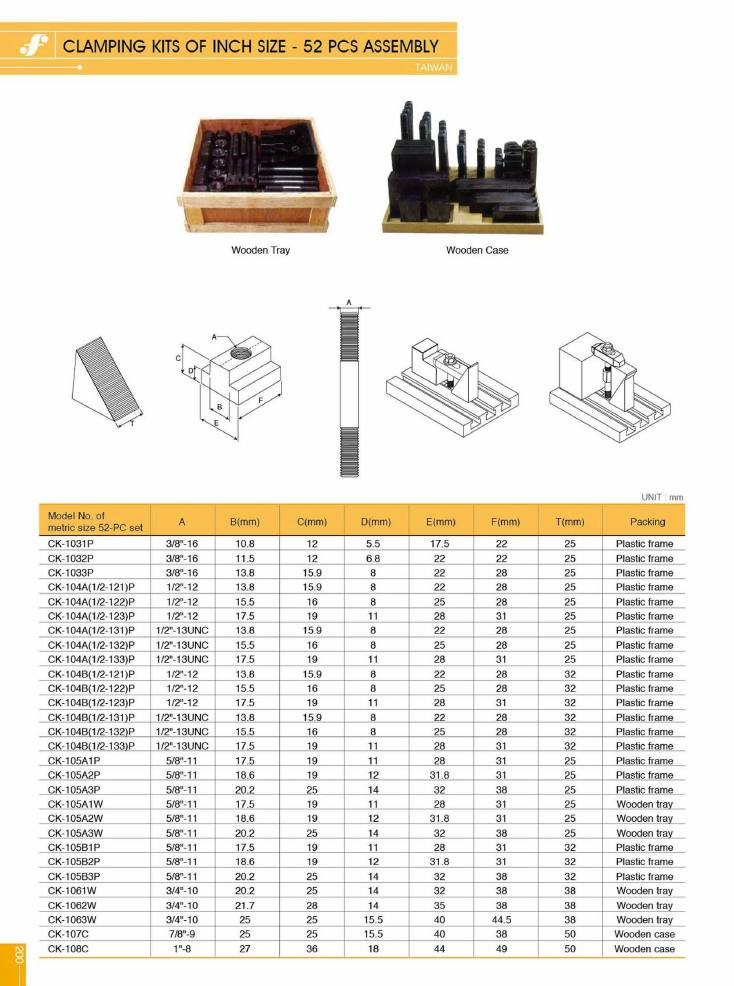

Frejoth accessory catalogue · Page 200

Clamping kits

Models on this page

CK-1031PCK-1032PCK-1033PCK-104A(1/2-121)PCK-104A(1/2-122)PCK-104A(1/2-123)PCK-104A(1/2-131)PCK-104A(1/2-132)PCK-104A(1/2-133)PCK-104B(1/2-121)PCK-104B(1/2-122)PCK-104B(1/2-123)PCK-104B(1/2-131)PCK-104B(1/2-132)PCK-104B(1/2-133)PCK-105A1PCK-105A1WCK-105A2PCK-105A2WCK-105A3PCK-105A3WCK-105B1PCK-105B2PCK-105B3PCK-1061WCK-1062WCK-1063WCK-107CCK-108C

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Clamping Kits of Inch Size - 52 PCS Assembly

CK · Taiwan

clamping_kit_sizes (mm)
model_no_of_metric_size_52_pc_set	A	B_mm	C_mm	D_mm	E_mm	F_mm	T_mm	packing
CK-1031P	3/8"-16	10.8	12	5.5	17.5	22	25	Plastic frame
CK-1032P	3/8"-16	11.5	12	6.8	22	22	25	Plastic frame
CK-1033P	3/8"-16	13.8	15.9	8	22	28	25	Plastic frame
CK-104A(1/2-121)P	1/2"-12	13.8	15.9	8	22	28	25	Plastic frame
CK-104A(1/2-122)P	1/2"-12	15.5	16	8	25	28	25	Plastic frame
CK-104A(1/2-123)P	1/2"-12	17.5	19	11	28	31	25	Plastic frame
CK-104A(1/2-131)P	1/2"-13UNC	13.8	15.9	8	22	28	25	Plastic frame
CK-104A(1/2-132)P	1/2"-13UNC	15.5	16	8	25	28	25	Plastic frame
CK-104A(1/2-133)P	1/2"-13UNC	17.5	19	11	28	31	25	Plastic frame
CK-104B(1/2-121)P	1/2"-12	13.8	15.9	8	22	28	32	Plastic frame
CK-104B(1/2-122)P	1/2"-12	15.5	16	8	25	28	32	Plastic frame
CK-104B(1/2-123)P	1/2"-12	17.5	19	11	28	31	32	Plastic frame
CK-104B(1/2-131)P	1/2"-13UNC	13.8	15.9	8	22	28	32	Plastic frame
CK-104B(1/2-132)P	1/2"-13UNC	15.5	16	8	25	28	32	Plastic frame
CK-104B(1/2-133)P	1/2"-13UNC	17.5	19	11	28	31	32	Plastic frame
CK-105A1P	5/8"-11	17.5	19	11	28	31	25	Plastic frame
CK-105A2P	5/8"-11	18.6	19	12	31.8	31	25	Plastic frame
CK-105A3P	5/8"-11	20.2	25	14	32	38	25	Plastic frame
CK-105A1W	5/8"-11	17.5	19	11	28	31	25	Wooden tray
CK-105A2W	5/8"-11	18.6	19	12	31.8	31	25	Wooden tray
CK-105A3W	5/8"-11	20.2	25	14	32	38	25	Wooden tray
CK-105B1P	5/8"-11	17.5	19	11	28	31	32	Plastic frame
CK-105B2P	5/8"-11	18.6	19	12	31.8	31	32	Plastic frame
CK-105B3P	5/8"-11	20.2	25	14	32	38	32	Plastic frame
CK-1061W	3/4"-10	20.2	25	14	32	38	38	Wooden tray
CK-1062W	3/4"-10	21.7	28	14	35	38	38	Wooden tray
CK-1063W	3/4"-10	25	25	15.5	40	44.5	38	Wooden tray
CK-107C	7/8"-9	25	25	15.5	40	38	50	Wooden case
CK-108C	1"-8	27	36	18	44	49	50	Wooden case

Order references
Code	Model
on request	CK-1031P
on request	CK-1032P
on request	CK-1033P
on request	CK-104A(1/2-121)P
on request	CK-104A(1/2-122)P
on request	CK-104A(1/2-123)P
on request	CK-104A(1/2-131)P
on request	CK-104A(1/2-132)P
on request	CK-104A(1/2-133)P
on request	CK-104B(1/2-121)P
on request	CK-104B(1/2-122)P
on request	CK-104B(1/2-123)P
on request	CK-104B(1/2-131)P
on request	CK-104B(1/2-132)P
on request	CK-104B(1/2-133)P
on request	CK-105A1P
on request	CK-105A2P
on request	CK-105A3P
on request	CK-105A1W
on request	CK-105A2W
on request	CK-105A3W
on request	CK-105B1P
on request	CK-105B2P
on request	CK-105B3P
on request	CK-1061W
on request	CK-1062W
on request	CK-1063W
on request	CK-107C
on request	CK-108C

Supplied in plastic frame, wooden tray or wooden case depending on model.
