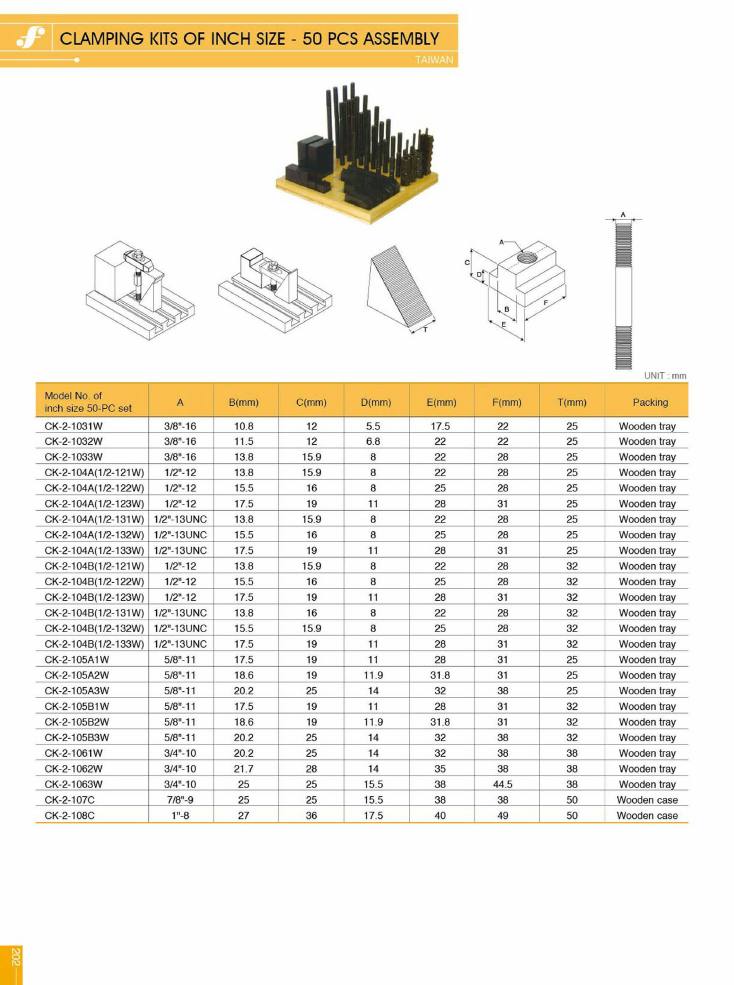

Frejoth accessory catalogue · Page 205
CLAMPING KITS OF INCH SIZE - 50 PCS ASSEMBLY
Models on this page
CK-2-1031WCK-2-1032WCK-2-1033WCK-2-104A(1/2-121W)CK-2-104A(1/2-122W)CK-2-104A(1/2-123W)CK-2-104A(1/2-131W)CK-2-104A(1/2-132W)CK-2-104A(1/2-133W)CK-2-104B(1/2-121W)CK-2-104B(1/2-122W)CK-2-104B(1/2-123W)CK-2-104B(1/2-131W)CK-2-104B(1/2-132W)CK-2-104B(1/2-133W)CK-2-105A1WCK-2-105A2WCK-2-105A3WCK-2-105B1WCK-2-105B2WCK-2-105B3WCK-2-1061WCK-2-1062WCK-2-1063WCK-2-107CCK-2-108C
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CLAMPING KITS OF INCH SIZE - 50 PCS ASSEMBLY
CK-2 · Taiwan
| model_no_of_inch_size_50_pc_set | a | b_mm | c_mm | d_mm | e_mm | f_mm | t_mm | packing |
|---|---|---|---|---|---|---|---|---|
| CK-2-1031W | 3/8"-16 | 10.8 | 12 | 5.5 | 17.5 | 22 | 25 | Wooden tray |
| CK-2-1032W | 3/8"-16 | 11.5 | 12 | 6.8 | 22 | 22 | 25 | Wooden tray |
| CK-2-1033W | 3/8"-16 | 13.8 | 15.9 | 8 | 22 | 28 | 25 | Wooden tray |
| CK-2-104A(1/2-121W) | 1/2"-12 | 13.8 | 15.9 | 8 | 22 | 28 | 25 | Wooden tray |
| CK-2-104A(1/2-122W) | 1/2"-12 | 15.5 | 16 | 8 | 25 | 28 | 25 | Wooden tray |
| CK-2-104A(1/2-123W) | 1/2"-12 | 17.5 | 19 | 11 | 28 | 31 | 25 | Wooden tray |
| CK-2-104A(1/2-131W) | 1/2"-13UNC | 13.8 | 15.9 | 8 | 22 | 28 | 25 | Wooden tray |
| CK-2-104A(1/2-132W) | 1/2"-13UNC | 15.5 | 16 | 8 | 25 | 28 | 25 | Wooden tray |
| CK-2-104A(1/2-133W) | 1/2"-13UNC | 17.5 | 19 | 11 | 28 | 31 | 25 | Wooden tray |
| CK-2-104B(1/2-121W) | 1/2"-12 | 13.8 | 15.9 | 8 | 22 | 28 | 32 | Wooden tray |
| CK-2-104B(1/2-122W) | 1/2"-12 | 15.5 | 16 | 8 | 25 | 28 | 32 | Wooden tray |
| CK-2-104B(1/2-123W) | 1/2"-12 | 17.5 | 19 | 11 | 28 | 31 | 32 | Wooden tray |
| CK-2-104B(1/2-131W) | 1/2"-13UNC | 13.8 | 16 | 8 | 22 | 28 | 32 | Wooden tray |
| CK-2-104B(1/2-132W) | 1/2"-13UNC | 15.5 | 15.9 | 8 | 25 | 28 | 32 | Wooden tray |
| CK-2-104B(1/2-133W) | 1/2"-13UNC | 17.5 | 19 | 11 | 28 | 31 | 32 | Wooden tray |
| CK-2-105A1W | 5/8"-11 | 17.5 | 19 | 11 | 28 | 31 | 25 | Wooden tray |
| CK-2-105A2W | 5/8"-11 | 18.6 | 19 | 11.9 | 31.8 | 31 | 25 | Wooden tray |
| CK-2-105A3W | 5/8"-11 | 20.2 | 25 | 14 | 32 | 38 | 25 | Wooden tray |
| CK-2-105B1W | 5/8"-11 | 17.5 | 19 | 11 | 28 | 31 | 32 | Wooden tray |
| CK-2-105B2W | 5/8"-11 | 18.6 | 19 | 11.9 | 31.8 | 31 | 32 | Wooden tray |
| CK-2-105B3W | 5/8"-11 | 20.2 | 25 | 14 | 32 | 38 | 32 | Wooden tray |
| CK-2-1061W | 3/4"-10 | 20.2 | 25 | 14 | 32 | 38 | 38 | Wooden tray |
| CK-2-1062W | 3/4"-10 | 21.7 | 28 | 14 | 35 | 38 | 38 | Wooden tray |
| CK-2-1063W | 3/4"-10 | 25 | 25 | 15.5 | 38 | 44.5 | 38 | Wooden tray |
| CK-2-107C | 7/8"-9 | 25 | 25 | 15.5 | 38 | 38 | 50 | Wooden case |
| CK-2-108C | 1"-8 | 27 | 36 | 17.5 | 40 | 49 | 50 | Wooden case |
| Code | Model |
|---|---|
| on request | CK-2-1031W |
| on request | CK-2-1032W |
| on request | CK-2-1033W |
| on request | CK-2-104A(1/2-121W) |
| on request | CK-2-104A(1/2-122W) |
| on request | CK-2-104A(1/2-123W) |
| on request | CK-2-104A(1/2-131W) |
| on request | CK-2-104A(1/2-132W) |
| on request | CK-2-104A(1/2-133W) |
| on request | CK-2-104B(1/2-121W) |
| on request | CK-2-104B(1/2-122W) |
| on request | CK-2-104B(1/2-123W) |
| on request | CK-2-104B(1/2-131W) |
| on request | CK-2-104B(1/2-132W) |
| on request | CK-2-104B(1/2-133W) |
| on request | CK-2-105A1W |
| on request | CK-2-105A2W |
| on request | CK-2-105A3W |
| on request | CK-2-105B1W |
| on request | CK-2-105B2W |
| on request | CK-2-105B3W |
| on request | CK-2-1061W |
| on request | CK-2-1062W |
| on request | CK-2-1063W |
| on request | CK-2-107C |
| on request | CK-2-108C |
Photo of the set on a wooden tray. Dimension drawings show A (stud thread), B/C/D/E/F on the T-slot nut and T on the step block. No kit-contents packing list is printed on this page (unlike the metric-size pages).
