CLAMPING KITS OF METRIC SIZE - 50 PCS ASSEMBLY

Models on this page

CK-2-10WCK-2-12A1WCK-2-12A2WCK-2-12B1WCK-2-12B2WCK-2-14AWCK-2-14BWCK-2-16AWCK-2-16BWCK-2-18WCK-2-20WCK-2-24CCK-2-8W

Send us your details and we'll come back with pricing, availability and specifications.

CK-2 · Taiwan

kit_contents
item	quantity
Packing	50-PC set (wooden tray / wooden case)
Stud	24 pcs
T-slot nut	6 pcs
Flange nut	4 pcs
Coupling nut	4 pcs
Step clamp	6 pcs
Step block	6 set (12 Pcs)

model_dimensions (mm)
model_no_of_metric_size_50_pc_set	a	b_mm	c_mm	d_mm	e_mm	f_mm	t_mm	packing
CK-2-8W	M8x1.25	9.7	12	6	16	20	25	Wooden tray
CK-2-10W	M10x1.5	11.5	12	6.8	17.5	22	25	Wooden tray
CK-2-12A1W	M12x1.75	13.8	15.9	8	22	28	25	Wooden tray
CK-2-12A2W	M12x1.75	15.5	16	8	25	28	25	Wooden tray
CK-2-12B1W	M12x1.75	13.8	15.9	8	22	28	32	Wooden tray
CK-2-12B2W	M12x1.75	15.5	16	8	25	28	32	Wooden tray
CK-2-14AW	M14x2.0	15.5	16	8	25	28	25	Wooden tray
CK-2-14BW	M14x2.0	15.5	16	8	25	28	32	Wooden tray
CK-2-16AW	M16x2.0	17.5	19	11	28	31	25	Wooden tray
CK-2-16BW	M16x2.0	17.5	19	11	28	31	32	Wooden tray
CK-2-18W	M18x2.5	19.5	24	12	32	38	38	Wooden tray
CK-2-20W	M20x2.5	21.7	28	14	35	38	38	Wooden tray
CK-2-24C	M24x3.0	27.5	36	18	44	49	50	Wooden case

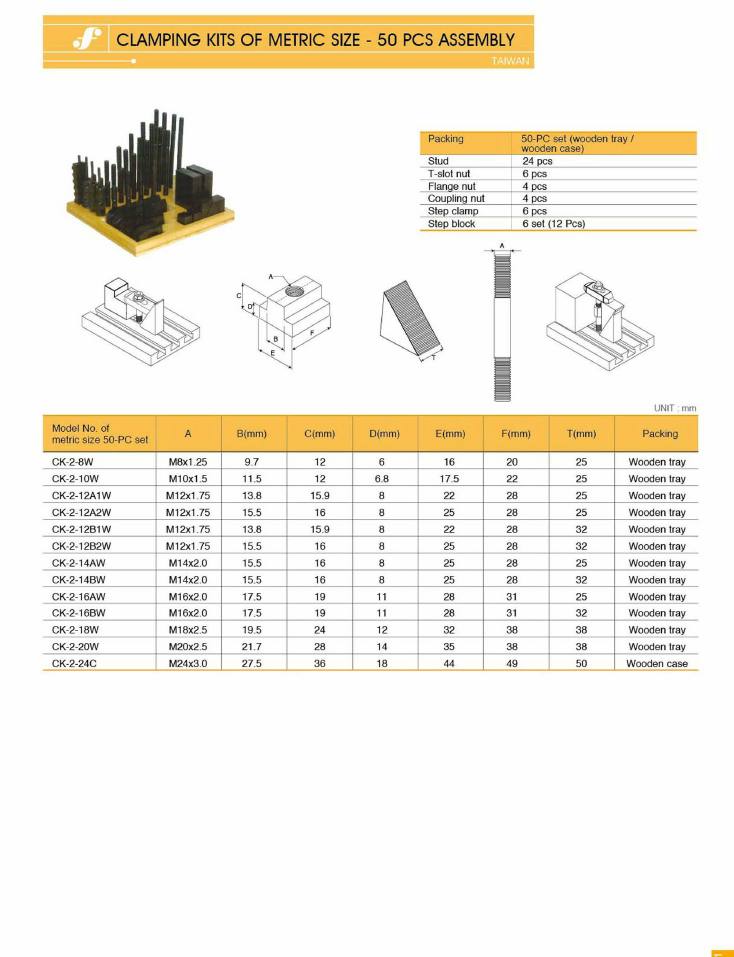

Photo of the set on a wooden tray. Dimension drawings show A (stud thread), B/C/D/E/F on the T-slot nut and T on the step block.
