CLAMPING KITS OF METRIC SIZE - 52 PCS ASSEMBLY

Models on this page

CK-10PCK-12A1PCK-12A2PCK-12B1PCK-12B2PCK-14APCK-14BPCK-16APCK-16BPCK-18WCK-20WCK-24CCK-8P

Send us your details and we'll come back with pricing, availability and specifications.

CK · Taiwan

kit_contents
item	quantity
Packing	52-PC set (plastic frame / wooden tray / wooden case)
Stud	24 pcs
T-slot nut	6 pcs
Flange nut	6 pcs
Coupling nut	4 pcs
Step clamp	6 pcs
Step block	6 set (12 Pcs)

model_dimensions (mm)
model_no_of_metric_size_52_pc_set	a	b_mm	c_mm	d_mm	e_mm	f_mm	t_mm	packing
CK-8P	M8X1.25	9.7	12	6	16	20	25	Plastic frame
CK-10P	M10X1.5	11.5	12	6.8	17.5	22	25	Plastic frame
CK-12A1P	M12X1.75	13.8	15.9	8	22	28	25	Plastic frame
CK-12A2P	M12X1.75	15.5	16	8	25	28	25	Plastic frame
CK-12B1P	M12X1.75	13.8	15.9	8	22	28	32	Plastic frame
CK-12B2P	M12X1.75	15.5	16	8	25	28	32	Plastic frame
CK-14AP	M14X2.0	15.5	16	8	25	28	25	Plastic frame
CK-14BP	M14X2.0	15.5	16	8	25	28	32	Plastic frame
CK-16AP	M16X2.0	17.5	19	11	28	31	25	Plastic frame
CK-16BP	M16X2.0	17.5	19	11	28	31	32	Plastic frame
CK-18W	M18X2.5	19.5	24	12	32	38	38	Wooden tray
CK-20W	M20X2.5	21.7	28	14	35	38	38	Wooden tray
CK-24C	M24X3.0	27.5	36	18	44	49	50	Wooden case

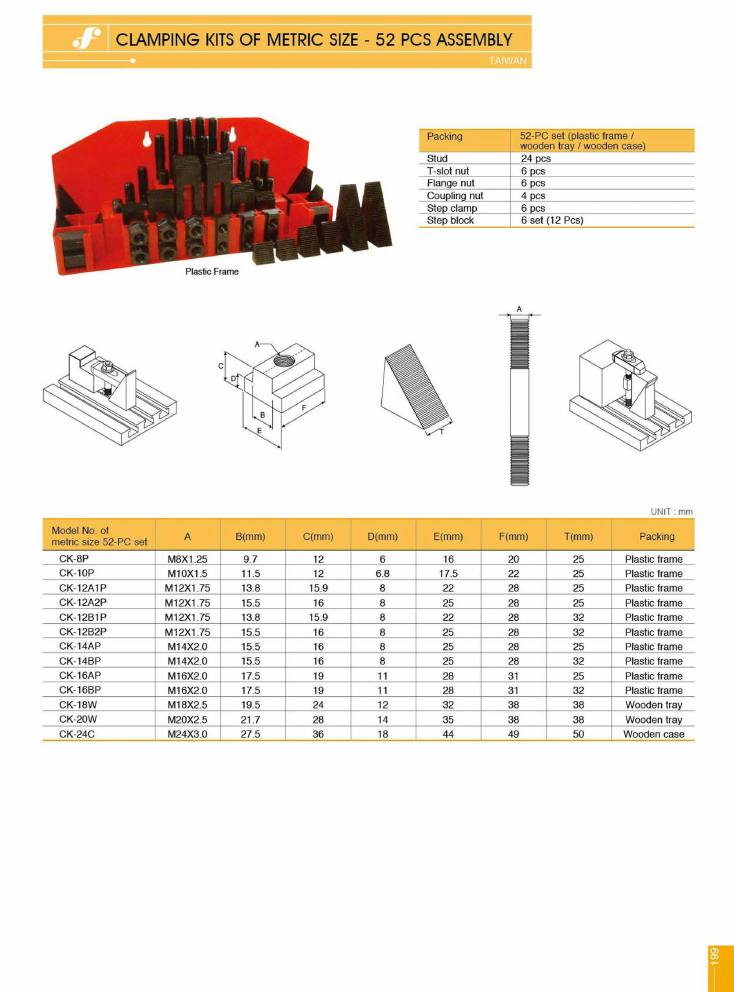

Photo captioned 'Plastic Frame'. Dimension drawings show A (stud thread), B/C/D/E/F on the T-slot nut and T on the step block.
