CLAMPING STUD

Models on this page

CS-42003CS-42004CS-42005CS-42006CS-42007CS-42008CS-43003CS-43004CS-43005CS-43006CS-43007CS-43008CS-44003CS-44004CS-44005CS-44006CS-44007CS-44008CS-44009CS-44010CS-44012CS-44014CS-44016CS-44503CS-44504CS-44505CS-44506CS-44507CS-44508CS-44509CS-44510CS-44512CS-44514CS-44516CS-45003CS-45004CS-45005CS-45006CS-45007CS-45008CS-45009CS-45010CS-45011CS-45012CS-45014CS-45016CS-45018CS-45020CS-46003CS-46004CS-46005CS-46006CS-46007CS-46008CS-46009CS-46010CS-46011CS-46012CS-46014CSM-42002CSM-42003CSM-42004CSM-42005CSM-42006CSM-42007CSM-42008CSM-43002CSM-43003CSM-43004CSM-43005CSM-43006CSM-43007CSM-43008CSM-44002CSM-44003CSM-44004CSM-44005CSM-44006CSM-44007CSM-44008CSM-44009CSM-44010CSM-44012CSM-44014CSM-44016CSM-44503CSM-44504CSM-44505CSM-44506CSM-44507CSM-44508CSM-44509CSM-44510CSM-44512CSM-44514CSM-44516CSM-45003CSM-45004CSM-45005CSM-45006CSM-45007CSM-45008CSM-45009CSM-45010CSM-45012CSM-45014CSM-45016CSM-45018CSM-45020CSM-46003CSM-46004CSM-46005CSM-46006CSM-46007CSM-46008CSM-46010CSM-46012CSM-46014

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

CLAMPING STUD

CSM / CS · Taiwan

metric_spec (mm)
model_no	metric_spec	a_mm	b_mm
CSM-42002	M8xP1.25x50	50	20
CSM-42003	M8xP1.25x75	75	30
CSM-42004	M8xP1.25x100	100	40
CSM-42005	M8xP1.25x125	125	40
CSM-42006	M8xP1.25x150	150	40
CSM-42007	M8xP1.25x175	175	40
CSM-42008	M8xP1.25x200	200	40
CSM-43002	M10xP1.5x50	50	20
CSM-43003	M10xP1.5x75	75	30
CSM-43004	M10xP1.5x100	100	40
CSM-43005	M10xP1.5x125	125	40
CSM-43006	M10xP1.5x150	150	40
CSM-43007	M10xP1.5x175	175	40
CSM-43008	M10xP1.5x200	200	40
CSM-44002	M12xP1.75x50	50	20
CSM-44003	M12xP1.75x75	75	30
CSM-44004	M12xP1.75x100	100	40
CSM-44005	M12xP1.75x125	125	40
CSM-44006	M12xP1.75x150	150	40
CSM-44007	M12xP1.75x175	175	40
CSM-44008	M12xP1.75x200	200	40
CSM-44009	M12xP1.75x225	225	45
CSM-44010	M12xP1.75x250	250	45
CSM-44012	M12xP1.75x300	300	45
CSM-44014	M12xP1.75x350	350	45
CSM-44016	M12xP1.75x400	400	45
CSM-44503	M14xP2.0x75	75	30
CSM-44504	M14xP2.0x100	100	40
CSM-44505	M14xP2.0x125	125	40
CSM-44506	M14xP2.0x150	150	40
CSM-44507	M14xP2.0x175	175	40
CSM-44508	M14xP2.0x200	200	40
CSM-44509	M14xP2.0x225	225	45
CSM-44510	M14xP2.0x250	250	45
CSM-44512	M14xP2.0x300	300	45
CSM-44514	M14xP2.0x350	350	45
CSM-44516	M14xP2.0x400	400	45
CSM-45003	M16xP2.0x75	75	30
CSM-45004	M16xP2.0x100	100	45
CSM-45005	M16xP2.0x125	125	45
CSM-45006	M16xP2.0x150	150	45
CSM-45007	M16xP2.0x175	175	45
CSM-45008	M16xP2.0x200	200	45
CSM-45009	M16xP2.0x225	225	45
CSM-45010	M16xP2.0x250	250	45
CSM-45012	M16xP2.0x300	300	45
CSM-45014	M16xP2.0x350	350	45
CSM-45016	M16xP2.0x400	400	45
CSM-45018	M16xP2.0x450	450	45
CSM-45020	M16xP2.0x500	500	45
CSM-46003	M18xP2.5x75	75	30
CSM-46004	M18xP2.5x100	100	40
CSM-46005	M18xP2.5x125	125	45
CSM-46006	M18xP2.5x150	150	45
CSM-46007	M18xP2.5x175	175	45
CSM-46008	M18xP2.5x200	200	45
CSM-46010	M18xP2.5x250	250	50
CSM-46012	M18xP2.5x300	300	50
CSM-46014	M18xP2.5x350	350	50

inch_spec (mm)
model_no	inch_spec	a_mm	b_mm
CS-42003	5/16"-18x3"	75	30
CS-42004	5/16"-18x4"	100	40
CS-42005	5/16"-18x5"	125	40
CS-42006	5/16"-18x6"	150	40
CS-42007	5/16"-18x7"	175	40
CS-42008	5/16"-18x8"	200	40
CS-43003	3/8"-16x3"	75	30
CS-43004	3/8"-16x4"	100	40
CS-43005	3/8"-16x5"	125	40
CS-43006	3/8"-16x6"	150	40
CS-43007	3/8"-16x7"	175	40
CS-43008	3/8"-16x8"	200	40
CS-44003	1/2"-12x3"	75	30
CS-44004	1/2"-12x4"	100	40
CS-44005	1/2"-12x5"	125	40
CS-44006	1/2"-12x6"	150	40
CS-44007	1/2"-12x7"	175	40
CS-44008	1/2"-12x8"	200	40
CS-44009	1/2"-12x9"	225	45
CS-44010	1/2"-12x10"	250	45
CS-44012	1/2"-12x12"	300	45
CS-44014	1/2"-12x14"	350	45
CS-44016	1/2"-12x16"	400	45
CS-44503	1/2"-13UNCx3"	75	30
CS-44504	1/2"-13UNCx4"	100	40
CS-44505	1/2"-13UNCx5"	125	40
CS-44506	1/2"-13UNCx6"	150	40
CS-44507	1/2"-13UNCx7"	175	40
CS-44508	1/2"-13UNCx8"	200	40
CS-44509	1/2"-13UNCx9"	225	45
CS-44510	1/2"-13UNCx10"	250	45
CS-44512	1/2"-13UNCx12"	300	45
CS-44514	1/2"-13UNCx14"	350	45
CS-44516	1/2"-13UNCx16"	400	45
CS-45003	5/8"-11x3"	75	30
CS-45004	5/8"-11x4"	100	40
CS-45005	5/8"-11x5"	125	40
CS-45006	5/8"-11x6"	150	40
CS-45007	5/8"-11x7"	175	40
CS-45008	5/8"-11x8"	200	40
CS-45009	5/8"-11x9"	225	45
CS-45010	5/8"-11x10"	250	45
CS-45011	5/8"-11x11"	275	45
CS-45012	5/8"-11x12"	300	45
CS-45014	5/8"-11x14"	350	45
CS-45016	5/8"-11x16"	400	45
CS-45018	5/8"-11x18"	450	45
CS-45020	5/8"-11x20"	500	45
CS-46003	3/4"-10x3"	75	30
CS-46004	3/4"-10x4"	100	40
CS-46005	3/4"-10x5"	125	45
CS-46006	3/4"-10x6"	150	45
CS-46007	3/4"-10x7"	175	45
CS-46008	3/4"-10x8"	200	45
CS-46009	3/4"-10x9"	225	50
CS-46010	3/4"-10x10"	250	50
CS-46011	3/4"-10x11"	275	50
CS-46012	3/4"-10x12"	300	50
CS-46014	3/4"-10x14"	350	50

Order references
Code	Model
on request	CSM-44016
on request	CSM-44503
on request	CSM-44504
on request	CSM-44505
on request	CSM-44506
on request	CSM-44507
on request	CSM-44508
on request	CSM-44509
on request	CSM-44510
on request	CSM-42002
on request	CSM-42003
on request	CSM-42004
on request	CSM-42005
on request	CSM-42006
on request	CSM-42007
on request	CSM-42008
on request	CSM-43002
on request	CSM-43003
on request	CSM-43004
on request	CSM-43005
on request	CSM-43006
on request	CSM-43007
on request	CSM-43008
on request	CSM-44002
on request	CSM-44003
on request	CSM-44004
on request	CSM-44005
on request	CSM-44006
on request	CSM-44007
on request	CSM-44008
on request	CSM-44009
on request	CSM-44010
on request	CSM-44012
on request	CSM-44014
on request	CSM-44512
on request	CSM-44514
on request	CSM-44516
on request	CSM-45003
on request	CSM-45004
on request	CSM-45005
on request	CSM-45006
on request	CSM-45007
on request	CSM-45008
on request	CSM-45009
on request	CSM-45010
on request	CSM-45012
on request	CSM-45014
on request	CSM-45016
on request	CSM-45018
on request	CSM-45020
on request	CSM-46003
on request	CSM-46004
on request	CSM-46005
on request	CSM-46006
on request	CSM-46007
on request	CSM-46008
on request	CSM-46010
on request	CSM-46012
on request	CSM-46014
on request	CS-42003
on request	CS-42004
on request	CS-42005
on request	CS-42006
on request	CS-42007
on request	CS-42008
on request	CS-43003
on request	CS-43004
on request	CS-43005
on request	CS-43006
on request	CS-43007
on request	CS-43008
on request	CS-44003
on request	CS-44004
on request	CS-44005
on request	CS-44006
on request	CS-44007
on request	CS-44008
on request	CS-44009
on request	CS-44010
on request	CS-44012
on request	CS-44014
on request	CS-44016
on request	CS-44503
on request	CS-44504
on request	CS-44505
on request	CS-44506
on request	CS-44507
on request	CS-44508
on request	CS-44509
on request	CS-44510
on request	CS-44512
on request	CS-44514
on request	CS-44516
on request	CS-45003
on request	CS-45004
on request	CS-45005
on request	CS-45006
on request	CS-45007
on request	CS-45008
on request	CS-45009
on request	CS-45010
on request	CS-45011
on request	CS-45012
on request	CS-45014
on request	CS-45016
on request	CS-45018
on request	CS-45020
on request	CS-46003
on request	CS-46004
on request	CS-46005
on request	CS-46006
on request	CS-46007
on request	CS-46008
on request	CS-46009
on request	CS-46010
on request	CS-46011
on request	CS-46012
on request	CS-46014

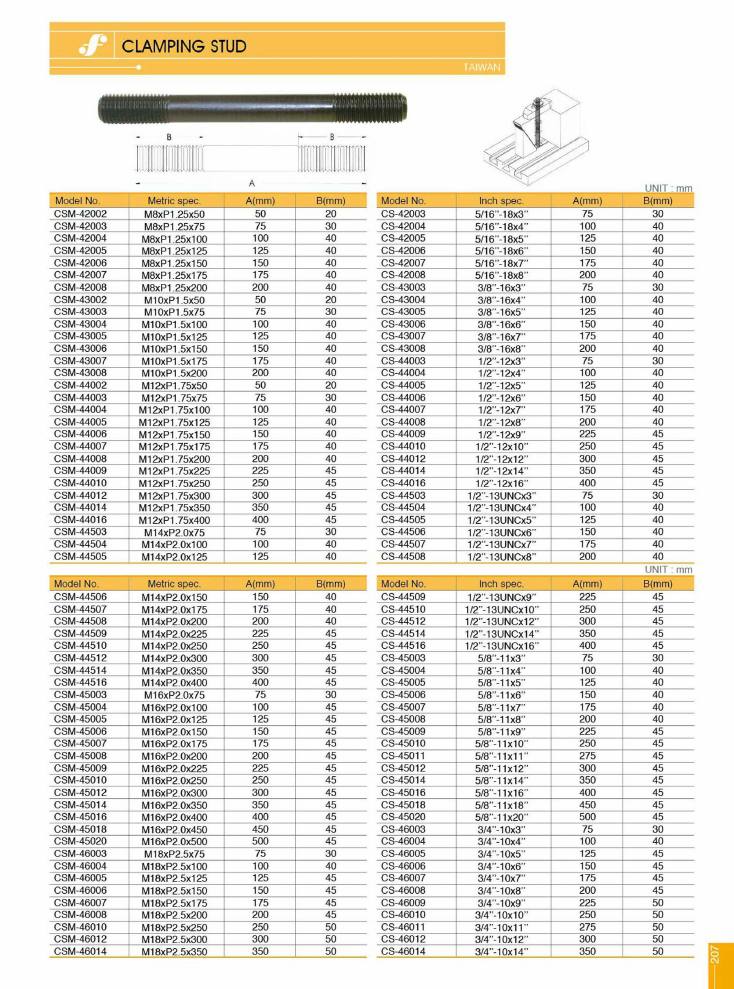

Double-ended threaded stud. A is the overall length, B the thread length at each end (both ends marked B on the drawing).
