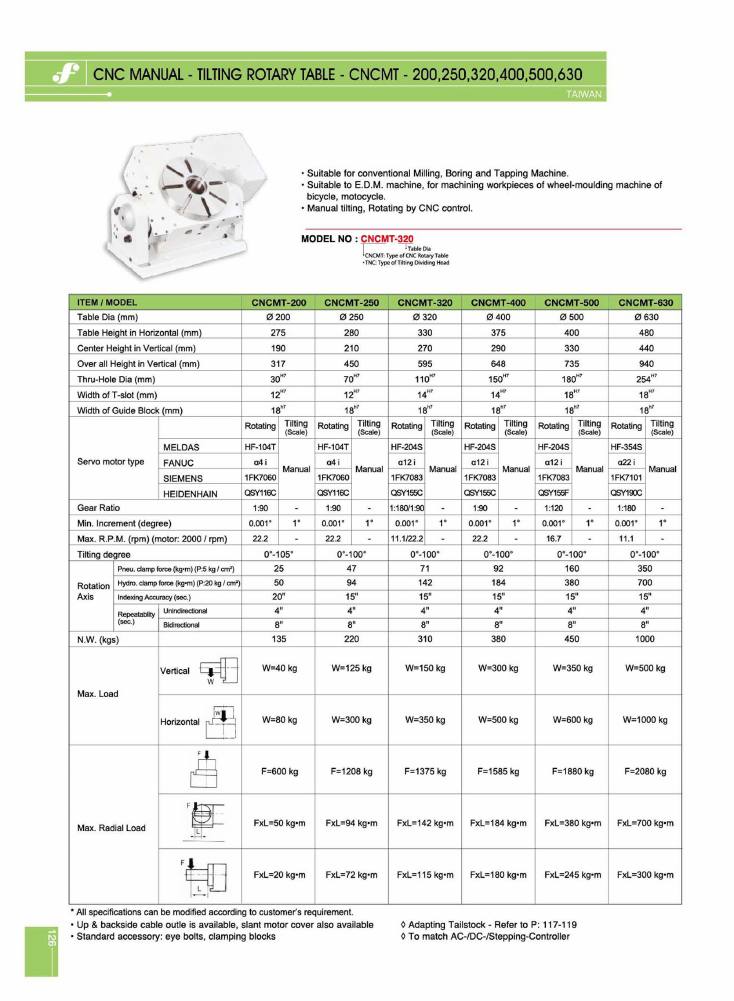

CNC Manual - Tilting Rotary Table
Models on this page
CNCMT-200CNCMT-250CNCMT-320CNCMT-400CNCMT-500CNCMT-630
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Manual - Tilting Rotary Table - CNCMT-200, 250, 320, 400, 500, 630
CNCMT · Taiwan
- Suitable for conventional Milling, Boring and Tapping Machine.
- Suitable to E.D.M. machine, for machining workpieces of wheel-moulding machine of bicycle, motocycle.
- Manual tilting, Rotating by CNC control.
| model | table_dia_mm | table_height_in_horizontal_mm | center_height_in_vertical_mm | over_all_height_in_vertical_mm | thru_hole_dia_mm | width_of_t_slot_mm | width_of_guide_block_mm | servo_motor_meldas_rotating | servo_motor_fanuc_rotating | servo_motor_siemens_rotating | servo_motor_heidenhain_rotating | tilting_drive | gear_ratio_rotating | gear_ratio_tilting | min_increment_degree_rotating | min_increment_degree_tilting | max_rpm_rotating | max_rpm_tilting | tilting_degree | rotation_axis_pneu_clamp_force_kgm | rotation_axis_hydro_clamp_force_kgm | rotation_axis_indexing_accuracy_sec | rotation_axis_repeatability_unindirectional_sec | rotation_axis_repeatability_bidirectional_sec | nw_kgs | max_load_vertical | max_load_horizontal | max_radial_load_f | max_radial_load_fxl_row2 | max_radial_load_fxl_row3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CNCMT-200 | Ø 200 | 275 | 190 | 317 | 30H7 | 12H7 | 18h7 | HF-104T | α4 i | 1FK7060 | QSY116C | Manual | 1:90 | - | 0.001° | 1° | 22.2 | - | 0°-105° | 25 | 50 | 20" | 4" | 8" | 135 | W=40 kg | W=80 kg | F=600 kg | FxL=50 kg•m | FxL=20 kg•m |
| CNCMT-250 | Ø 250 | 280 | 210 | 450 | 70H7 | 12H7 | 18h7 | HF-104T | α4 i | 1FK7060 | QSY116C | Manual | 1:90 | - | 0.001° | 1° | 22.2 | - | 0°-100° | 47 | 94 | 15" | 4" | 8" | 220 | W=125 kg | W=300 kg | F=1208 kg | FxL=94 kg•m | FxL=72 kg•m |
| CNCMT-320 | Ø 320 | 330 | 270 | 595 | 110H7 | 14H7 | 18h7 | HF-204S | α12 i | 1FK7083 | QSY155C | Manual | 1:180/1:90 | - | 0.001° | 1° | 11.1/22.2 | - | 0°-100° | 71 | 142 | 15" | 4" | 8" | 310 | W=150 kg | W=350 kg | F=1375 kg | FxL=142 kg•m | FxL=115 kg•m |
| CNCMT-400 | Ø 400 | 375 | 290 | 648 | 150H7 | 14H7 | 18h7 | HF-204S | α12 i | 1FK7083 | QSY155C | Manual | 1:90 | - | 0.001° | 1° | 22.2 | - | 0°-100° | 92 | 184 | 15" | 4" | 8" | 380 | W=300 kg | W=500 kg | F=1585 kg | FxL=184 kg•m | FxL=180 kg•m |
| CNCMT-500 | Ø 500 | 400 | 330 | 735 | 180H7 | 18H7 | 18h7 | HF-204S | α12 i | 1FK7083 | QSY155F | Manual | 1:120 | - | 0.001° | 1° | 16.7 | - | 0°-100° | 160 | 380 | 15" | 4" | 8" | 450 | W=350 kg | W=600 kg | F=1880 kg | FxL=380 kg•m | FxL=245 kg•m |
| CNCMT-630 | Ø 630 | 480 | 440 | 940 | 254H7 | 18H7 | 18h7 | HF-354S | α22 i | 1FK7101 | QSY190C | Manual | 1:180 | - | 0.001° | 1° | 11.1 | - | 0°-100° | 350 | 700 | 15" | 4" | 8" | 1000 | W=500 kg | W=1000 kg | F=2080 kg | FxL=700 kg•m | FxL=300 kg•m |
| Code | Model |
|---|---|
| on request | CNCMT-200 |
| on request | CNCMT-250 |
| on request | CNCMT-320 |
| on request | CNCMT-400 |
| on request | CNCMT-500 |
| on request | CNCMT-630 |
Model number is read as CNCMT-320 = type of table + table diameter. CNCMT: Type of CNC Rotary Table. TNC: Type of Tilting Dividing Head. All specifications can be modified according to customer's requirement. Up & backside cable outle is available, slant motor cover also available. Standard accessory: eye bolts, clamping blocks. Adapting Tailstock - Refer to P: 117-119. To match AC-/DC-/Stepping-Controller.
