CNC Manual-Tilting Rotary Table
Models on this page
CNCMT-200CNCMT-250CNCMT-320CNCMT-400CNCMT-500CNCMT-630
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Manual-Tilting Rotary Table - CNCMT-200, 250, 320, 400, 500, 630
CNCMT · Taiwan
| model | table_top_flatness | parallelism_of_table_top_and_frame_bottom | runout_of_table_spindle_center | table_top_runout | parallelism_of_tilting_axis_center_line_and_frame_bottom | parallelism_of_table_top_to_frame_bottom_guide_block | indexing_accuracy_rotating |
|---|---|---|---|---|---|---|---|
| CNCMT-200 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 25" |
| CNCMT-250 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 25" |
| CNCMT-320 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" |
| CNCMT-400 | 0.02 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" |
| CNCMT-500 | 0.02 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" |
| CNCMT-630 | 0.02 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" |
| model | printed_callout | value_mm | tolerance | interpretation |
|---|---|---|---|---|
| CNCMT-200 | Ø200 | 200 | — | table diameter (matches Ø 200 in the p-129 spec table) |
| CNCMT-200 | Ø35 | 35 | +0.025 / 0 | — |
| CNCMT-200 | Ø35.5 | 35.5 | — | — |
| CNCMT-200 | 12 | 12 | — | T-slot width (matches 12 H7 in the p-129 spec table) |
| CNCMT-200 | 18 | 18 | 0 / -0.018 | locating key / guide block width (matches 18 h7 in the p-129 spec table) |
| CNCMT-500 | Ø220 | 220 | +0.012 / 0 | — |
| CNCMT-500 | Ø180 | 180 | +0.025 / 0 | thru-hole diameter (matches 180 H7 in the p-129 spec table) |
| CNCMT-500 | Ø182 | 182 | — | — |
| CNCMT-500 | 18 | 18 | — | T-slot width (matches 18 H7 in the p-129 spec table) |
| CNCMT-500 | 18 | 18 | 0 / -0.018 | locating key / guide block width (matches 18 h7 in the p-129 spec table) |
| CNCMT-630 | 8-M10×P1.5 Ø8.5貫30深 PCD275 | — | — | table-face mounting holes: 8 off M10x1.5 tapped, ø8.5 through / 30 deep, on a 275 mm pitch-circle diameter |
| Code | Model |
|---|---|
| on request | CNCMT-200 |
| on request | CNCMT-250 |
| on request | CNCMT-320 |
| on request | CNCMT-400 |
| on request | CNCMT-500 |
| on request | CNCMT-630 |

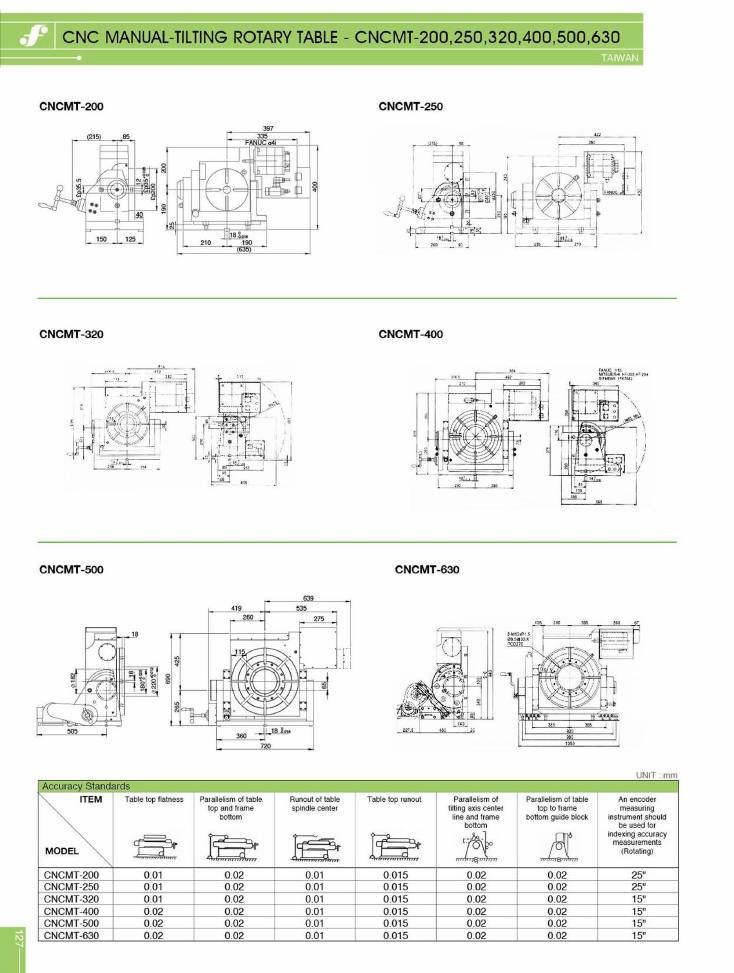

Dimension drawings for all six models plus the Accuracy Standards table. Unit: mm. This page continues the spec table on printed page 126 (p-129).
