CNC multi-spindle rotary table
Models on this page
CNC-120R-2WCNC-120R-3WCNC-120R-4WCNC-170R-2WCNC-170R-3WCNC-170R-4WCNC-200R-2WCNC-200R-3WCNC-200R-4W
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

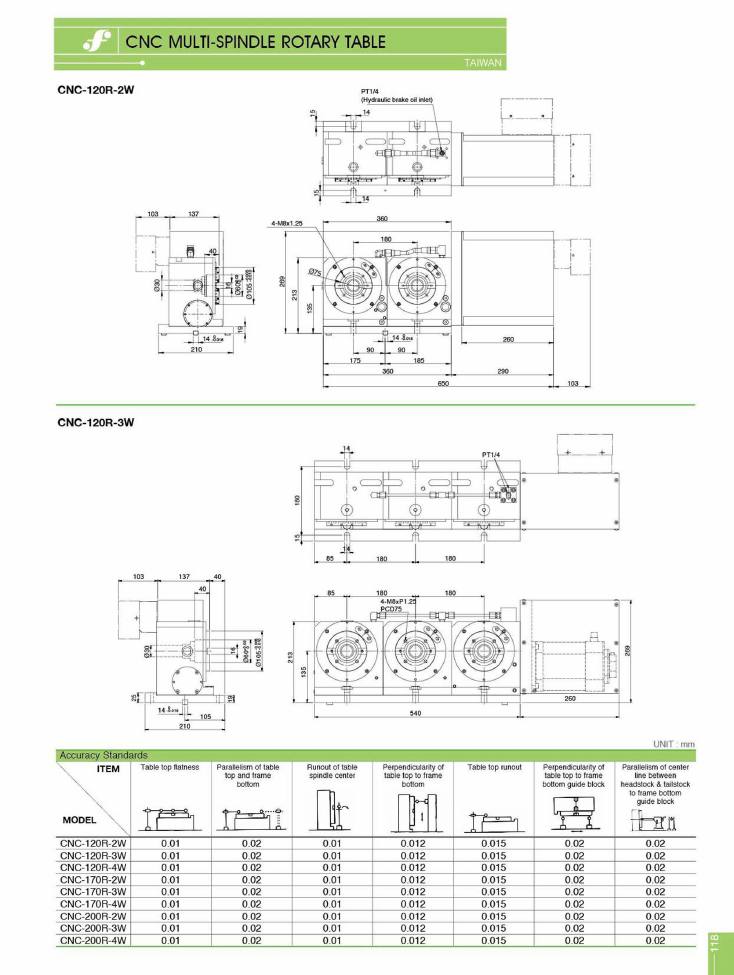

CNC-120R-2W multi-spindle rotary table — installation dimensions
CNC-120R-2W · Taiwan
| dimension | value |
|---|---|
| overall length | 650 |
| frame length | 360 |
| motor overhang | 290 |
| motor body length | 260 |
| rear projection | 103 |
| front projection (side view) | 103 |
| body width (side view) | 137 |
| side view offset | 40 |
| base width | 210 |
| overall height | 269 |
| height to table centre (upper) | 213 |
| height to table centre (lower) | 135 |
| base height (foot) | 19 |
| spindle pitch (between the two tables) | 180 |
| half spindle pitch | 90 |
| frame end to first spindle centre | 175 |
| second spindle centre to frame end | 185 |
| top view slot offset | 15 |
| top view key width | 14 |
| thru-hole dia | ø30 |
| spigot dia | ø60 +0.02/0 |
| register dia | ø105 -0.005/-0.008 |
| spigot depth | 16 |
| locating key width | 14 -0/-0.018 |
| table face bolt pattern | 4-M8x1.25 on ø75 |
| hydraulic brake oil inlet | PT1/4 |
Dimension drawing only (top view, side view, front view). Unit: mm. PT1/4 port marked as 'Hydraulic brake oil inlet'. Table face bolt pattern marked 4-M8x1.25 on a ø75 PCD.
CNC-120R-3W multi-spindle rotary table — installation dimensions
CNC-120R-3W · Taiwan
| dimension | value |
|---|---|
| frame length | 540 |
| motor body length | 260 |
| rear projection | 103 |
| body width (side view) | 137 |
| side view offset (upper) | 40 |
| side view offset (lower) | 40 |
| base width | 210 |
| base length (side view) | 105 |
| overall height | 269 |
| height to table centre (upper) | 213 |
| height to table centre (lower) | 135 |
| base height (foot) | 19 |
| base step height | 25 |
| frame end to first spindle centre | 85 |
| spindle pitch (1st to 2nd) | 180 |
| spindle pitch (2nd to 3rd) | 180 |
| top view frame width | 180 |
| top view slot offset | 15 |
| top view key width | 14 |
| thru-hole dia | ø30 |
| spigot dia | ø60 +0.02/0 |
| register dia | ø105 -0.005/-0.008 |
| spigot depth | 16 |
| locating key width | 14 -0/-0.018 |
| table face bolt pattern | 4-M8xP1.25 PCD75 |
| hydraulic port | PT1/4 |
Dimension drawing only (top view, side view, front view). Unit: mm. PT1/4 hydraulic port. Table face bolt pattern marked 4-M8xP1.25 PCD75.
Accuracy Standards — CNC multi-spindle rotary tables
Taiwan
| model | table_top_flatness | parallelism_of_table_top_and_frame_bottom | runout_of_table_spindle_center | perpendicularity_of_table_top_to_frame_bottom | table_top_runout | perpendicularity_of_table_top_to_frame_bottom_guide_block | parallelism_of_center_line_between_headstock_and_tailstock_to_frame_bottom_guide_block |
|---|---|---|---|---|---|---|---|
| CNC-120R-2W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-120R-3W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-120R-4W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-170R-2W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-170R-3W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-170R-4W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-200R-2W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-200R-3W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| CNC-200R-4W | 0.01 | 0.02 | 0.01 | 0.012 | 0.015 | 0.02 | 0.02 |
| Code | Model |
|---|---|
| on request | CNC-120R-2W |
| on request | CNC-120R-3W |
| on request | CNC-120R-4W |
| on request | CNC-170R-2W |
| on request | CNC-170R-3W |
| on request | CNC-170R-4W |
| on request | CNC-200R-2W |
| on request | CNC-200R-3W |
| on request | CNC-200R-4W |
Each column heading is accompanied by a measurement-setup diagram. Values are identical across all nine models.
