CNC multi-spindle rotary table
Models on this page
CNC-170R-2WCNC-170R-3WCNC-170R-4W
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

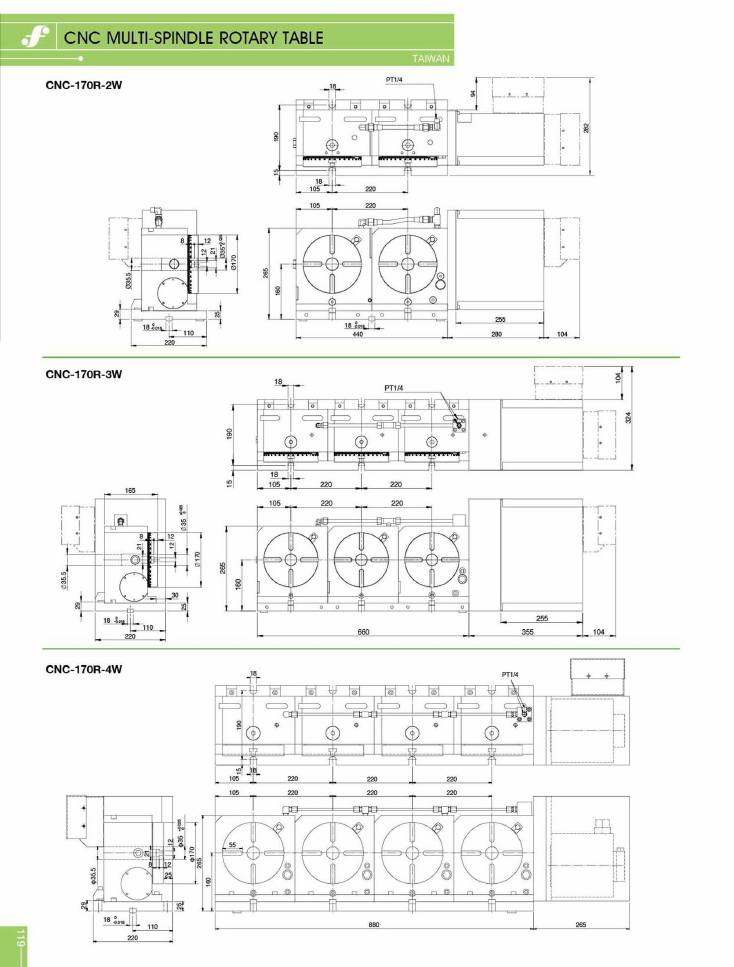

CNC-170R-2W multi-spindle rotary table — installation dimensions
CNC-170R-2W · Taiwan
| dimension | value |
|---|---|
| frame length | 440 |
| motor overhang | 280 |
| motor body length | 255 |
| rear projection | 104 |
| frame end to first spindle centre | 105 |
| spindle pitch | 220 |
| overall height | 265 |
| height to table centre | 160 |
| base width (side view) | 220 |
| base slot to centre (side view) | 110 |
| base height (foot) | 29 |
| base step height | 25 |
| top view frame width | 190 |
| top view slot offset | 15 |
| top view key width | 18 |
| top view motor height offset | 94 |
| top view overall width incl. motor | 282 |
| table dia | ø170 |
| thru-hole / spigot dia | ø35 +0.025/0 |
| rear boss dia | ø35.5 |
| step 8 | 8 |
| step 12 (a) | 12 |
| step 12 (b) | 12 |
| step 21 | 21 |
| locating key width | 18 -0/-0.018 |
| hydraulic port | PT1/4 |
Dimension drawing only (top view, side view, front view). Unit: mm (no explicit UNIT note printed on this page; mm inferred from the companion page 118). PT1/4 hydraulic port marked on the top view.
CNC-170R-3W multi-spindle rotary table — installation dimensions
CNC-170R-3W · Taiwan
| dimension | value |
|---|---|
| frame length | 660 |
| motor overhang | 355 |
| motor body length | 255 |
| rear projection | 104 |
| frame end to first spindle centre | 105 |
| spindle pitch (1st to 2nd) | 220 |
| spindle pitch (2nd to 3rd) | 220 |
| overall height | 265 |
| height to table centre | 160 |
| base width (side view) | 220 |
| base slot to centre (side view) | 110 |
| side view body width | 165 |
| side view rear offset | 30 |
| base height (foot) | 29 |
| base step height | 25 |
| top view frame width | 190 |
| top view slot offset | 15 |
| top view key width | 18 |
| top view motor height offset | 104 |
| top view overall width incl. motor | 324 |
| table dia | ø170 |
| thru-hole / spigot dia | ø35 +0.025/0 |
| rear boss dia | ø35.5 |
| step 8 | 8 |
| step 12 (a) | 12 |
| step 12 (b) | 12 |
| step 21 | 21 |
| locating key width | 18 -0/-0.018 |
| hydraulic port | PT1/4 |
Dimension drawing only (top view, side view, front view). Unit: mm. PT1/4 hydraulic port marked on the top view.
CNC-170R-4W multi-spindle rotary table — installation dimensions
CNC-170R-4W · Taiwan
| dimension | value |
|---|---|
| frame length | 880 |
| motor body length | 265 |
| frame end to first spindle centre | 105 |
| spindle pitch (1st to 2nd) | 220 |
| spindle pitch (2nd to 3rd) | 220 |
| spindle pitch (3rd to 4th) | 220 |
| overall height | 265 |
| height to table centre | 160 |
| table slot length from centre | 55 |
| base width (side view) | 220 |
| base slot to centre (side view) | 110 |
| base height (foot) | 29 |
| base step height (a) | 25 |
| base step height (b) | 25 |
| top view frame width | 190 |
| top view slot offset | 15 |
| top view key width | 18 |
| table dia | ø170 |
| thru-hole / spigot dia | ø35 +0.025/0 |
| rear boss dia | ø35.5 |
| step 8 | 8 |
| step 12 (a) | 12 |
| step 12 (b) | 12 |
| step 21 | 21 |
| locating key width | 18 -0/-0.018 |
| hydraulic port | PT1/4 |
Dimension drawing only (top view, side view, front view). Unit: mm. PT1/4 hydraulic port marked on the top view.
