CNC multi-spindle rotary table
Models on this page
CNC-200R-2WCNC-200R-3WCNC-200R-4W
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

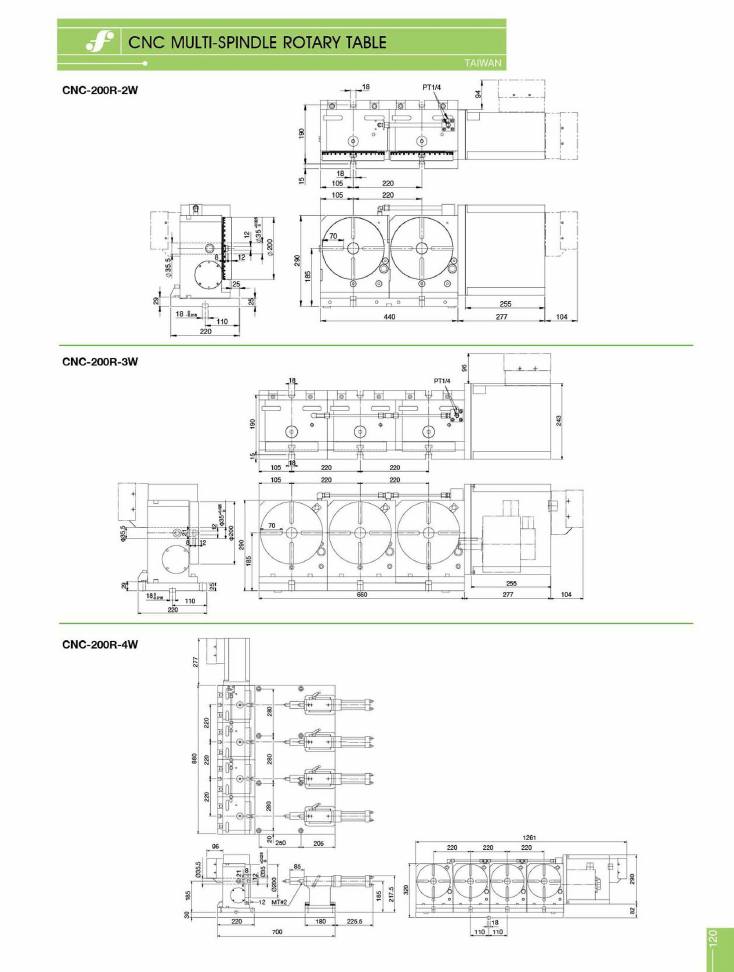

CNC-200R-2W multi-spindle rotary table — installation dimensions
CNC-200R-2W · Taiwan
| dimension | value |
|---|---|
| frame length | 440 |
| motor overhang | 277 |
| motor body length | 255 |
| rear projection | 104 |
| frame end to first spindle centre | 105 |
| spindle pitch | 220 |
| overall height | 290 |
| height to table centre | 185 |
| table slot length from centre | 70 |
| base width (side view) | 220 |
| base slot to centre (side view) | 110 |
| base height (foot) | 29 |
| base step height (a) | 25 |
| base step height (b) | 25 |
| top view frame width | 190 |
| top view slot offset | 15 |
| top view key width | 18 |
| top view motor height offset | 94 |
| table dia | ø200 |
| thru-hole / spigot dia | ø35 +0.025/0 |
| rear boss dia | ø35.5 |
| step 8 | 8 |
| step 12 (a) | 12 |
| step 12 (b) | 12 |
| locating key width | 18 -0/-0.018 |
| hydraulic port | PT1/4 |
Dimension drawing only (top view, side view, front view). Unit: mm. PT1/4 hydraulic port marked on the top view.
CNC-200R-3W multi-spindle rotary table — installation dimensions
CNC-200R-3W · Taiwan
| dimension | value |
|---|---|
| frame length | 660 |
| motor overhang | 277 |
| motor body length | 255 |
| rear projection | 104 |
| frame end to first spindle centre | 105 |
| spindle pitch (1st to 2nd) | 220 |
| spindle pitch (2nd to 3rd) | 220 |
| overall height | 290 |
| height to table centre | 185 |
| table slot length from centre | 70 |
| base width (side view) | 220 |
| base slot to centre (side view) | 110 |
| base height (foot) | 29 |
| base step height | 25 |
| top view frame width | 190 |
| top view slot offset | 15 |
| top view key width | 18 |
| top view motor height offset | 96 |
| top view overall width incl. motor | 243 |
| table dia | ø200 |
| thru-hole / spigot dia | ø35 +0.025/0 |
| rear boss dia | ø35.5 |
| step 8 | 8 |
| step 12 (a) | 12 |
| step 12 (b) | 12 |
| step 21 | 21 |
| locating key width | 18 -0/-0.018 |
| hydraulic port | PT1/4 |
Dimension drawing only (top view, side view, front view). Unit: mm. PT1/4 hydraulic port marked on the top view.
CNC-200R-4W multi-spindle rotary table with tailstocks — installation dimensions
CNC-200R-4W · Taiwan
| dimension | value |
|---|---|
| frame length (plan view) | 880 |
| overall length incl. motor (front view) | 1261 |
| motor overhang (plan view) | 277 |
| spindle pitch (1st to 2nd) | 220 |
| spindle pitch (2nd to 3rd) | 220 |
| spindle pitch (3rd to 4th) | 220 |
| table centre to tailstock centre (per station) | 280 |
| plan view offset 20 | 20 |
| plan view 250 | 250 |
| plan view 205 | 205 |
| overall height (front view) | 320 |
| height over motor (front view) | 290 |
| base height (front view) | 82 |
| height to table centre | 185 |
| tailstock centre height | 185 |
| tailstock overall height | 217.5 |
| base to datum (side view) | 30 |
| headstock base width (side view) | 220 |
| headstock front to tailstock base (side view) | 700 |
| tailstock base length | 180 |
| tailstock body length beyond base | 225.5 |
| tailstock quill projection | 85 |
| side view motor width | 96 |
| locating key width | 18 -0/-0.018 |
| key centre to base edge (a) | 110 |
| key centre to base edge (b) | 110 |
| table dia | ø200 |
| thru-hole / spigot dia | ø35 +0.025/0 |
| rear boss dia | ø35.5 |
| step 8 | 8 |
| step 12 (a) | 12 |
| step 12 (b) | 12 |
| step 21 | 21 |
| tailstock centre taper | MT#2 |
Dimension drawing only, drawn with four opposing tailstocks. Unit: mm. Tailstock quill centre is MT#2.
CNC multi-spindle rotary table
| Code | Model |
|---|---|
| on request | CNC-200R-2W |
| on request | CNC-200R-3W |
CNC multi-spindle rotary table with tailstocks
| Code | Model |
|---|---|
| on request | CNC-200R-4W |
