CNC Rotary Table
Models on this page
CNC-120RCNC-170RCNC-200RCNC-250RCNC-320R
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Rotary Table - CNC-120R, 170R, 200R, 250R, 320R
CNC-R · Taiwan
| model | table_top_flatness | parallelism_of_table_top_and_frame_bottom | runout_of_table_spindle_center | perpendicularity_of_table_top_to_frame_bottom | table_top_runout | perpendicularity_of_table_top_to_frame_bottom_guide_block | parallelism_of_center_line_between_headstock_and_tailstock_to_frame_bottom_guide_block |
|---|---|---|---|---|---|---|---|
| CNC-120R | 0.01 | 0.01 | 0.015 | 0.012 | 0.01 | 0.02 | 0.02 |
| CNC-170R | 0.01 | 0.01 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-200R | 0.01 | 0.01 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-250R | 0.01 | 0.01 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-320R | 0.01 | 0.01 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| Code | Model |
|---|---|
| on request | CNC-120R |
| on request | CNC-170R |
| on request | CNC-200R |
| on request | CNC-250R |
| on request | CNC-320R |

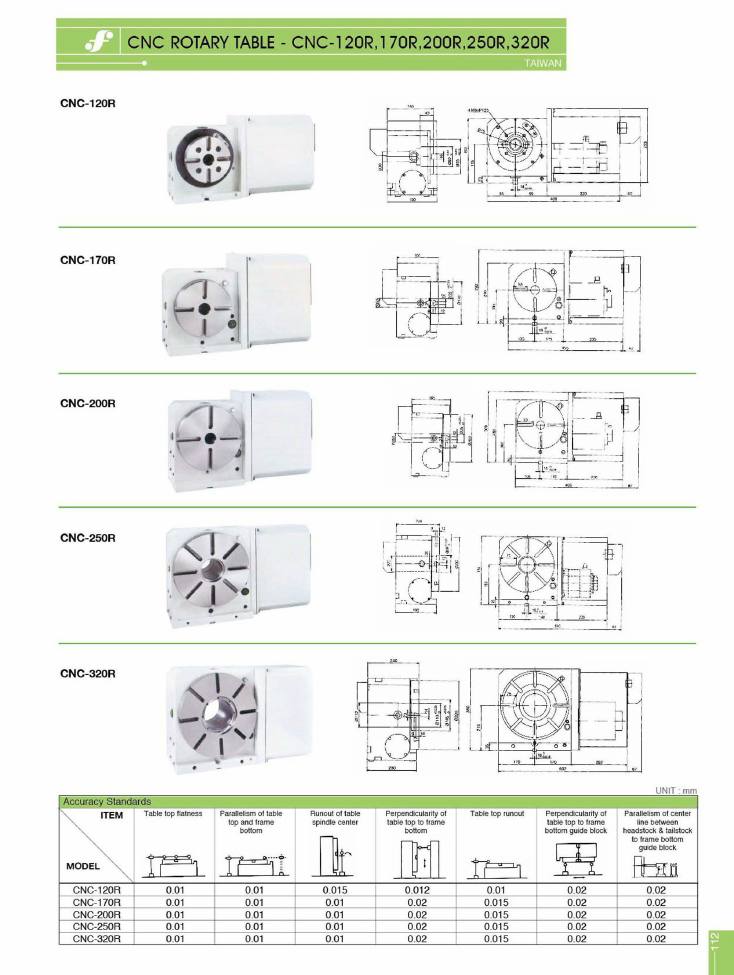

Page is a photo/dimension-drawing spread for the five models, plus a single accuracy-standards table. No capacity or dimension specification table is printed on this page.
