CNC Rotary Table
Models on this page
CNC-120RBCNC-170RBCNC-200RBCNC-250RB
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Rotary Table - CNC-120RB, 170RB, 200RB, 250RB
CNC-RB · Taiwan
| model | table_top_flatness | parallelism_of_table_top_and_frame_bottom | runout_of_table_spindle_center | perpendicularity_of_table_top_to_frame_bottom | table_top_runout | perpendicularity_of_table_top_to_frame_bottom_guide_block | parallelism_of_center_line_between_headstock_and_tailstock_to_frame_bottom_guide_block |
|---|---|---|---|---|---|---|---|
| CNC-120RB | 0.01 | 0.01 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-170RB | 0.01 | 0.01 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-200RB | 0.01 | 0.01 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-250RB | 0.01 | 0.02 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| Code | Model |
|---|---|
| on request | CNC-120RB |
| on request | CNC-170RB |
| on request | CNC-200RB |
| on request | CNC-250RB |

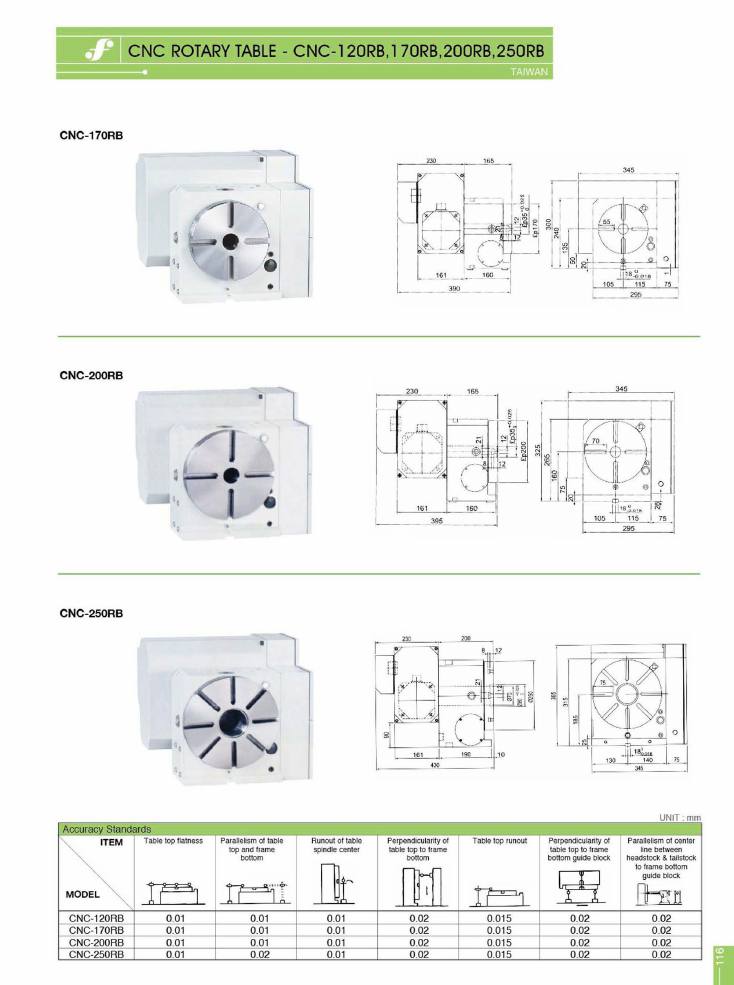

Photo and dimension-drawing spread for the RB (built-in brake / tilting base) series, plus a single accuracy-standards table. No capacity or dimension specification table is printed on this page.
