CNC Rotary Table
Models on this page
SRT-170SRT-217SRT-256SRT-322
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

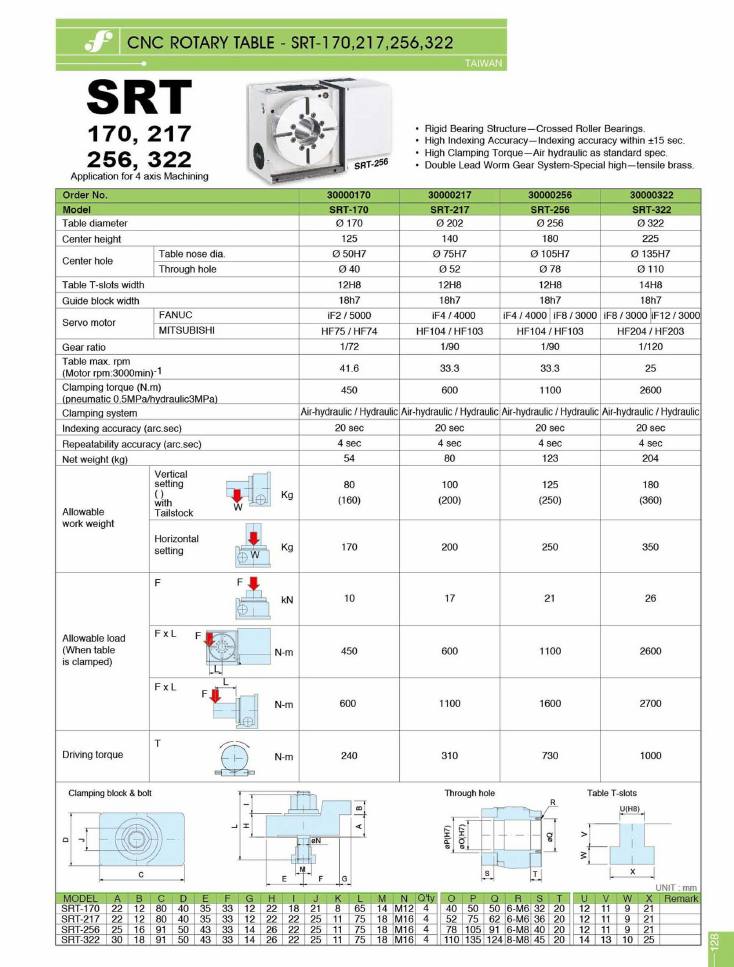

CNC Rotary Table - SRT-170, 217, 256, 322
SRT · Taiwan
- Rigid Bearing Structure - Crossed Roller Bearings.
- High Indexing Accuracy - Indexing accuracy within ±15 sec.
- High Clamping Torque - Air hydraulic as standard spec.
- Double Lead Worm Gear System - Special high-tensile brass.
| model | order_no | table_diameter | center_height | center_hole_table_nose_dia | center_hole_through_hole | table_t_slots_width | guide_block_width | servo_motor_fanuc | servo_motor_mitsubishi | gear_ratio | table_max_rpm_motor_3000min_1 | clamping_torque_nm | clamping_system | indexing_accuracy_arc_sec | repeatability_accuracy_arc_sec | net_weight_kg | allowable_work_weight_vertical_setting_kg | allowable_work_weight_vertical_setting_with_tailstock_kg | allowable_work_weight_horizontal_setting_kg | allowable_load_f_kn | allowable_load_fxl_row2_nm | allowable_load_fxl_row3_nm | driving_torque_nm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SRT-170 | 30000170 | Ø 170 | 125 | Ø 50H7 | Ø 40 | 12H8 | 18h7 | iF2 / 5000 | HF75 / HF74 | 1/72 | 41.6 | 450 | Air-hydraulic / Hydraulic | 20 sec | 4 sec | 54 | 80 | 160 | 170 | 10 | 450 | 600 | 240 |
| SRT-217 | 30000217 | Ø 202 | 140 | Ø 75H7 | Ø 52 | 12H8 | 18h7 | iF4 / 4000 | HF104 / HF103 | 1/90 | 33.3 | 600 | Air-hydraulic / Hydraulic | 20 sec | 4 sec | 80 | 100 | 200 | 200 | 17 | 600 | 1100 | 310 |
| SRT-256 | 30000256 | Ø 256 | 180 | Ø 105H7 | Ø 78 | 12H8 | 18h7 | iF4 / 4000 | iF8 / 3000 | HF104 / HF103 | 1/90 | 33.3 | 1100 | Air-hydraulic / Hydraulic | 20 sec | 4 sec | 123 | 125 | 250 | 250 | 21 | 1100 | 1600 | 730 |
| SRT-322 | 30000322 | Ø 322 | 225 | Ø 135H7 | Ø 110 | 14H8 | 18h7 | iF8 / 3000 | iF12 / 3000 | HF204 / HF203 | 1/120 | 25 | 2600 | Air-hydraulic / Hydraulic | 20 sec | 4 sec | 204 | 180 | 360 | 350 | 26 | 2600 | 2700 | 1000 |
| model | a | b | c | d | e | f | g | h | i | j | k | l | m | n | q_ty | o | p | q | r | s | t | u_h8 | v | w | x | remark |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SRT-170 | 22 | 12 | 80 | 40 | 35 | 33 | 12 | 22 | 18 | 21 | 8 | 65 | 14 | M12 | 4 | 40 | 50 | 50 | 6-M6 | 32 | 20 | 12 | 11 | 9 | 21 | — |
| SRT-217 | 22 | 12 | 80 | 40 | 35 | 33 | 12 | 22 | 22 | 25 | 11 | 75 | 18 | M16 | 4 | 52 | 75 | 62 | 6-M6 | 36 | 20 | 12 | 11 | 9 | 21 | — |
| SRT-256 | 25 | 16 | 91 | 50 | 43 | 33 | 14 | 26 | 22 | 25 | 11 | 75 | 18 | M16 | 4 | 78 | 105 | 91 | 6-M8 | 40 | 20 | 12 | 11 | 9 | 21 | — |
| SRT-322 | 30 | 18 | 91 | 50 | 43 | 33 | 14 | 26 | 22 | 25 | 11 | 75 | 18 | M16 | 4 | 110 | 135 | 124 | 8-M8 | 45 | 20 | 14 | 13 | 10 | 25 | — |
| Code | Model |
|---|---|
| 30000170 | SRT-170 |
| 30000217 | SRT-217 |
| 30000256 | SRT-256 |
| 30000322 | SRT-322 |
Application for 4 axis Machining. Photo captioned SRT-256. Clamping torque quoted at pneumatic 0.5MPa / hydraulic 3MPa. Table max. rpm quoted at motor rpm 3000min-1. Second table gives clamping block & bolt dimensions (A-N, Q'ty), through hole (O-T) and table T-slots (U-X); unit mm.
