CNC Rotary Table - CNC-400R, 500R, 630R, 800R
Models on this page
CNC-400RCNC-500RCNC-630RCNC-800R
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Rotary Table - CNC-400R, 500R, 630R, 800R
CNC-R · Taiwan
| model | table_top_flatness | parallelism_of_table_top_and_frame_bottom | runout_of_table_spindle_center | perpendicularity_of_table_top_to_frame_bottom | table_top_runout | perpendicularity_of_table_top_to_frame_bottom_guide_block | parallelism_of_center_line_between_headstock_and_tailstock_to_frame_bottom_guide_block |
|---|---|---|---|---|---|---|---|
| CNC-400R | 0.015 | 0.015 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-500R | 0.015 | 0.015 | 0.01 | 0.02 | 0.015 | 0.02 | 0.02 |
| CNC-630R | 0.025 | 0.025 | 0.01 | 0.025 | 0.02 | 0.02 | 0.02 |
| CNC-800R | 0.025 | 0.025 | 0.01 | 0.025 | 0.02 | 0.02 | 0.02 |
| Code | Model |
|---|---|
| on request | CNC-400R |
| on request | CNC-500R |
| on request | CNC-630R |
| on request | CNC-800R |

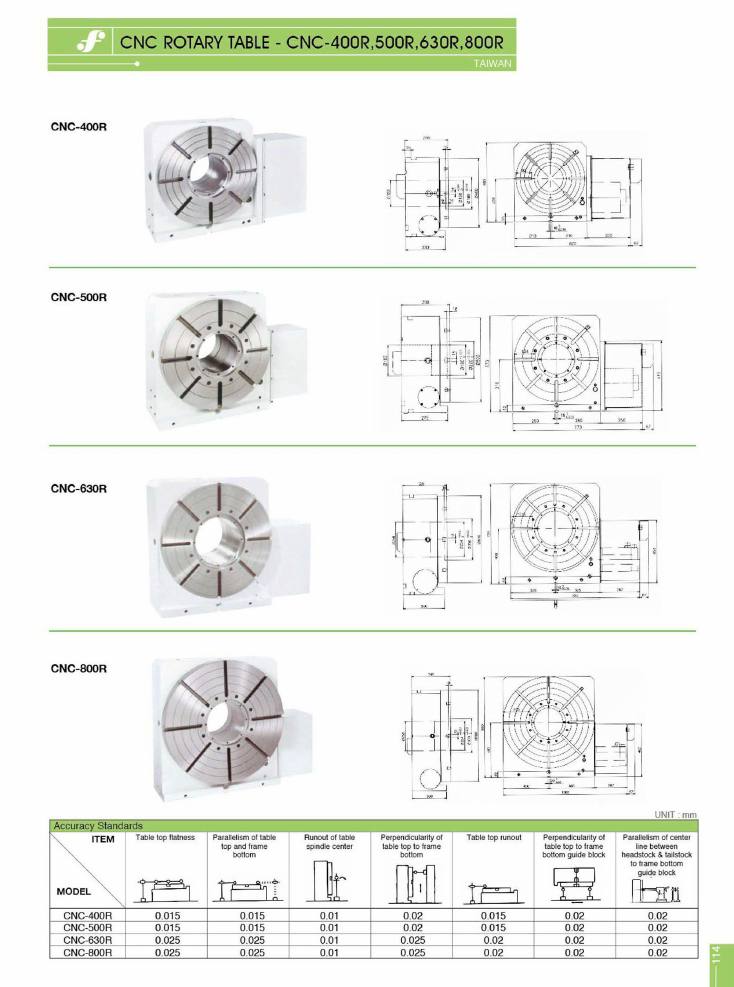

Continuation of the CNC-400R/500R/630R/800R range from the previous page. This page carries a photograph and a dimensional drawing for each of the four models, plus the accuracy standards table.
