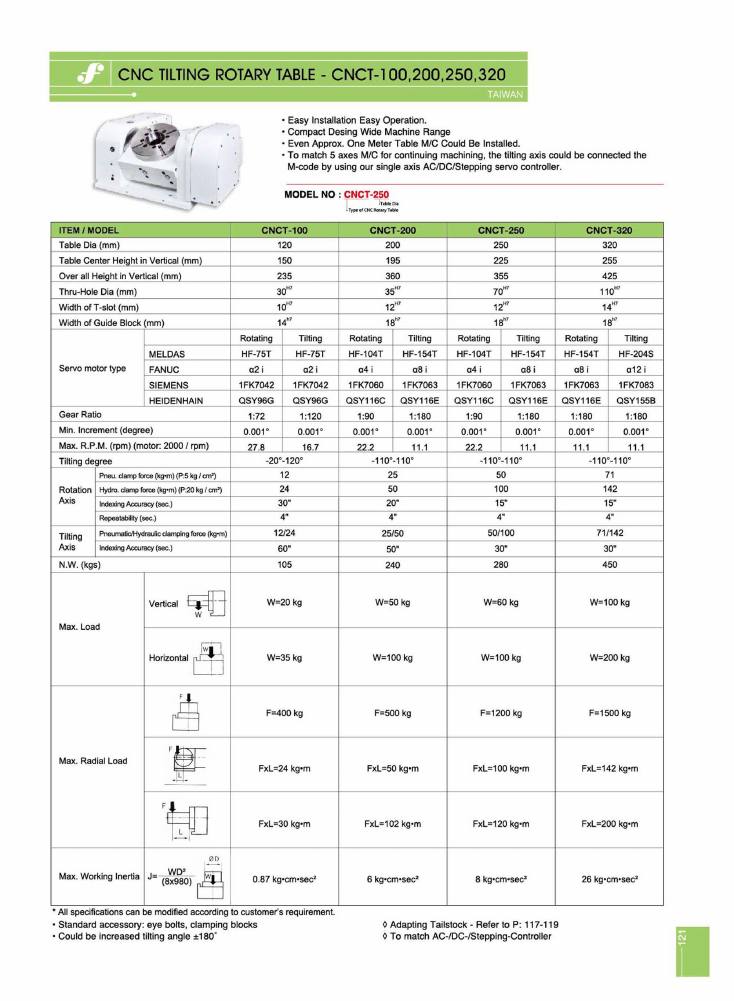

Frejoth accessory catalogue · Page 121
CNC Tilting Rotary Table
Models on this page
CNCT-100CNCT-200CNCT-250CNCT-320
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Tilting Rotary Table - CNCT-100, 200, 250, 320
CNCT · Taiwan
- Easy Installation Easy Operation.
- Compact Desing Wide Machine Range
- Even Approx. One Meter Table M/C Could Be Installed.
- To match 5 axes M/C for continuing machining, the tilting axis could be connected the M-code by using our single axis AC/DC/Stepping servo controller.
| item | cnct_100 | cnct_200 | cnct_250 | cnct_320 |
|---|---|---|---|---|
| Table Dia (mm) | 120 | 200 | 250 | 320 |
| Table Center Height in Vertical (mm) | 150 | 195 | 225 | 255 |
| Over all Height in Vertical (mm) | 235 | 360 | 355 | 425 |
| Thru-Hole Dia (mm) | 30 H7 | 35 H7 | 70 H7 | 110 H7 |
| Width of T-slot (mm) | 10 H7 | 12 H7 | 12 H7 | 14 H7 |
| Width of Guide Block (mm) | 14 h7 | 18 h7 | 18 h7 | 18 h7 |
| Tilting degree | -20°-120° | -110°-110° | -110°-110° | -110°-110° |
| Rotation Axis - Pneu. clamp force (kg·m) (P:5 kg/cm²) | 12 | 25 | 50 | 71 |
| Rotation Axis - Hydro. clamp force (kg·m) (P:20 kg/cm²) | 24 | 50 | 100 | 142 |
| Rotation Axis - Indexing Accuracy (sec.) | 30" | 20" | 15" | 15" |
| Rotation Axis - Repeatability (sec.) | 4" | 4" | 4" | 4" |
| Tilting Axis - Pneumatic/Hydraulic clamping force (kg·m) | 12/24 | 25/50 | 50/100 | 71/142 |
| Tilting Axis - Indexing Accuracy (sec.) | 60" | 50" | 30" | 30" |
| N.W. (kgs) | 105 | 240 | 280 | 450 |
| Max. Load - Vertical | W=20 kg | W=50 kg | W=60 kg | W=100 kg |
| Max. Load - Horizontal | W=35 kg | W=100 kg | W=100 kg | W=200 kg |
| Max. Radial Load - F | F=400 kg | F=500 kg | F=1200 kg | F=1500 kg |
| Max. Radial Load - FxL (radial) | FxL=24 kg·m | FxL=50 kg·m | FxL=100 kg·m | FxL=142 kg·m |
| Max. Radial Load - FxL (axial) | FxL=30 kg·m | FxL=102 kg·m | FxL=120 kg·m | FxL=200 kg·m |
| Max. Working Inertia J = WD²/(8x980) | 0.87 kg·cm·sec² | 6 kg·cm·sec² | 8 kg·cm·sec² | 26 kg·cm·sec² |
| item | cnct_100_rotating | cnct_100_tilting | cnct_200_rotating | cnct_200_tilting | cnct_250_rotating | cnct_250_tilting | cnct_320_rotating | cnct_320_tilting |
|---|---|---|---|---|---|---|---|---|
| Servo motor type - MELDAS | HF-75T | HF-75T | HF-104T | HF-154T | HF-104T | HF-154T | HF-154T | HF-204S |
| Servo motor type - FANUC | α2 i | α2 i | α4 i | α8 i | α4 i | α8 i | α8 i | α12 i |
| Servo motor type - SIEMENS | 1FK7042 | 1FK7042 | 1FK7060 | 1FK7063 | 1FK7060 | 1FK7063 | 1FK7063 | 1FK7083 |
| Servo motor type - HEIDENHAIN | QSY96G | QSY96G | QSY116C | QSY116E | QSY116C | QSY116E | QSY116E | QSY155B |
| Gear Ratio | 1:72 | 1:120 | 1:90 | 1:180 | 1:90 | 1:180 | 1:180 | 1:180 |
| Min. Increment (degree) | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° |
| Max. R.P.M. (rpm) (motor: 2000 / rpm) | 27.8 | 16.7 | 22.2 | 11.1 | 22.2 | 11.1 | 11.1 | 11.1 |
| Code | Model |
|---|---|
| on request | CNCT-100 |
| on request | CNCT-200 |
| on request | CNCT-250 |
| on request | CNCT-320 |
Photo caption: MODEL NO: CNCT-250 (Table Dia / Type of CNC Rotary Table). Footnotes: All specifications can be modified according to customer's requirement. Standard accessory: eye bolts, clamping blocks. Could be increased tilting angle ±180°. Adapting Tailstock - Refer to P: 117-119. To match AC-/DC-/Stepping-Controller.
