CNC tilting rotary table

Models on this page

CNCT-100CNCT-200CNCT-250ACNCT-320

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

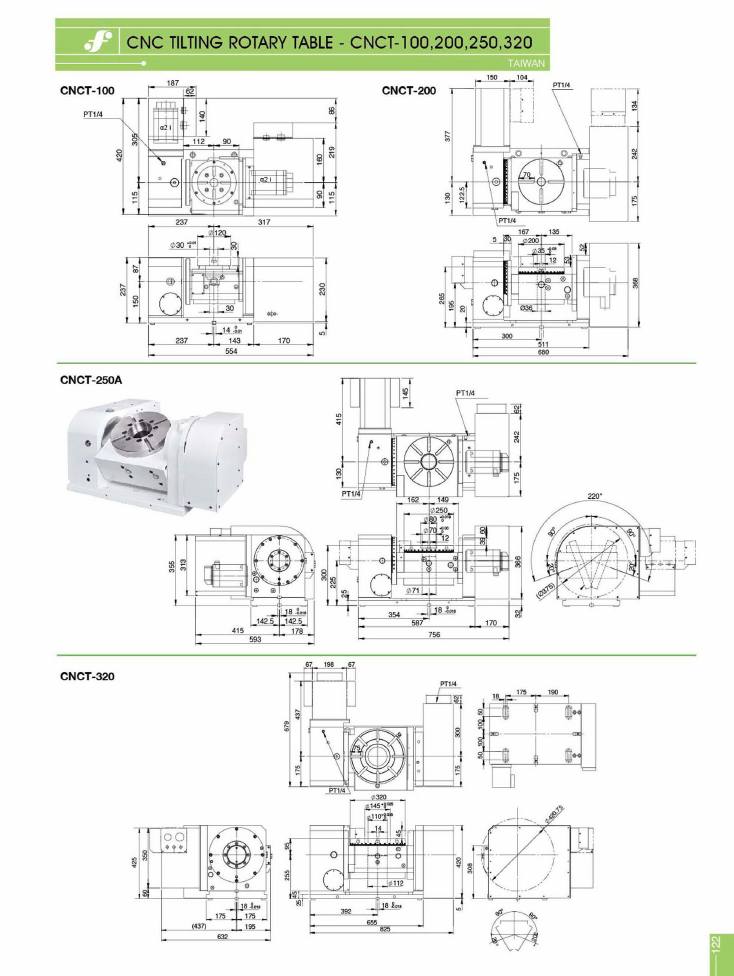

CNCT-100 CNC tilting rotary table — installation dimensions

CNCT-100 · Taiwan

installation_dimensions (mm)
dimension	value
overall height	420
height to tilt housing top	305
height to table centre	115
tilt motor body width	187
tilt motor flange offset	62
tilt motor body height	140
top clearance	86
table centre left offset	112
table centre right offset	90
rotary motor centre height	90
rotary side overall height	219
rotary side inner height	160
rotary side lower height	115
front view left width	237
front view right width	317
plan view overall width	237
plan view upper offset	87
plan view lower offset	150
plan view right width	230
plan view chain 237	237
plan view chain 143	143
plan view chain 170	170
plan view overall length	554
base lip	5
table dia	ø120
thru-hole / spigot dia	ø30 +0.01/0
boss width (upper)	30
boss width (lower)	30
locating key width	14 -0/-0.01
servo motor	α2 i
hydraulic port	PT1/4

Dimension drawing only (front view and plan view). Servo motor annotated 'α2 i' on both the tilt axis and the rotary axis. PT1/4 hydraulic port. Unit assumed mm.
