CNC Tilting Rotary Table
Models on this page
CNCT-100CNCT-200CNCT-250CNCT-320/RSCNCT-450CNCT-630CNCT-800M-Mate AM-Mate BM-Mate C
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Tilting Rotary Table - CNCT-320RS, 450, 630, 800
CNCT · Taiwan
| model | table_top_flatness | parallelism_of_table_top_and_frame_bottom | runout_of_table_spindle_center | table_top_runout | parallelism_of_tilting_axis_center_line_and_frame_bottom | parallelism_of_table_top_to_frame_bottom_guide | encoder_measuring_instrument_for_indexing_accuracy_rotating | encoder_measuring_instrument_for_indexing_accuracy_tilting |
|---|---|---|---|---|---|---|---|---|
| CNCT-100 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 30" | 60" |
| CNCT-200 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 25" | 50" |
| CNCT-250 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" | 50" |
| CNCT-320/RS | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" | 30" |
| CNCT-450 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" | 30" |
| CNCT-630 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" | 30" |
| CNCT-800 | 0.01 | 0.02 | 0.01 | 0.015 | 0.02 | 0.02 | 15" | 30" |
| mc_preparation | status_of_mc | axis | cnct_100 | cnct_200 | cnct_250 | cnct_320 | cnct_450 | cnct_630 | function |
|---|---|---|---|---|---|---|---|---|---|
| Standard 3 axes | CNC machine equipped with 3 axes (X,Y,Z) without additional axis | Rotating | M-Mate A | M-Mate A | M-Mate A | M-Mate B | M-Mate B | M-Mate B | The rotating and tilting axes only for positioning machining purpose and cost effciency |
| Standard 3 axes | CNC machine equipped with 3 axes (X,Y,Z) without additional axis | Tilting | M-Mate A | M-Mate A | M-Mate B | M-Mate B | M-Mate C | M-Mate C | The rotating and tilting axes only for positioning machining purpose and cost effciency |
| Addition 4th axis | CNC machine equipped with an additional 4th axis (X,Z,A) | Rotating | A axis | A axis | A axis | A axis | A axis | A axis | Tilting axis prepared for positioning machining and rotating axis is prepared for continuing machining (X,Y,Z,A) |
| Addition 4th axis | CNC machine equipped with an additional 4th axis (X,Z,A) | Tilting | M-Mate A | M-Mate A | M-Mate B | M-Mate B | M-Mate C | M-Mate C | Tilting axis prepared for positioning machining and rotating axis is prepared for continuing machining (X,Y,Z,A) |
| Addition 4th 5th axis | CNC machine equipped with an additional 4th and 5th axes (X,Z,A,B) | Rotating | A axis | A axis | A axis | A axis | A axis | A axis | X,Y,Z,A,B, 5 AXES are prepared for continuing machining |
| Addition 4th 5th axis | CNC machine equipped with an additional 4th and 5th axes (X,Z,A,B) | Tilting | B axis | B axis | B axis | B axis | B axis | B axis | X,Y,Z,A,B, 5 AXES are prepared for continuing machining |
| Code | Model |
|---|---|
| on request | CNCT-100 |
| on request | CNCT-200 |
| on request | CNCT-250 |
| on request | CNCT-320/RS |
| on request | CNCT-450 |
| on request | CNCT-630 |
| on request | CNCT-800 |
| on request | M-Mate A |
| on request | M-Mate B |
| on request | M-Mate C |

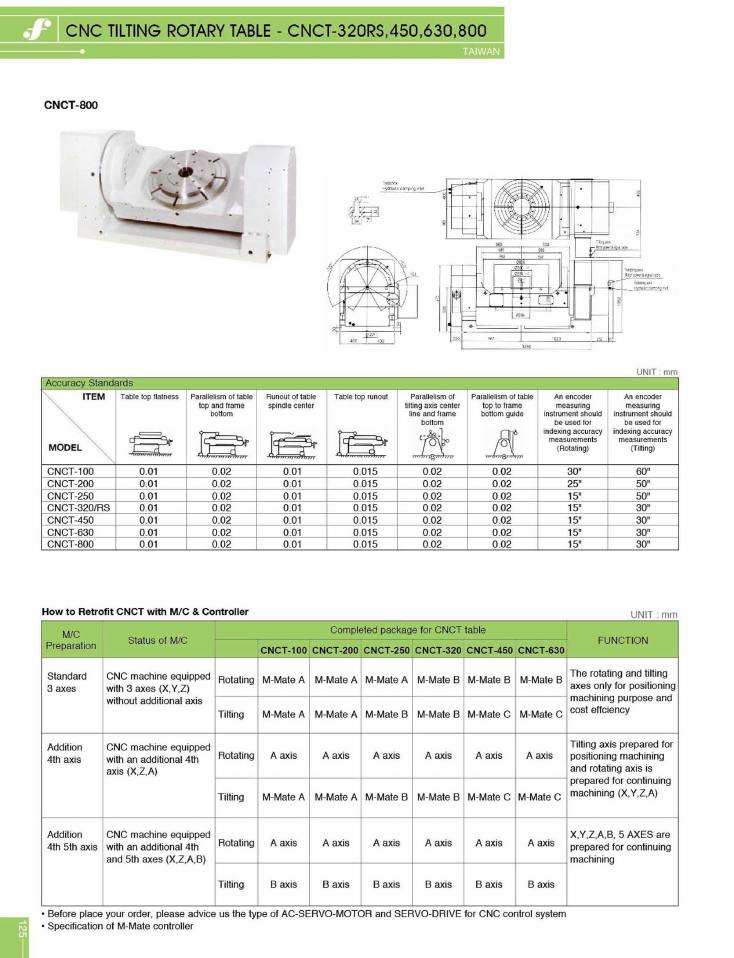

Photo and dimension drawings shown for CNCT-800. Footnotes: Before place your order, please advice us the type of AC-SERVO-MOTOR and SERVO-DRIVE for CNC control system. Specification of M-Mate controller.
