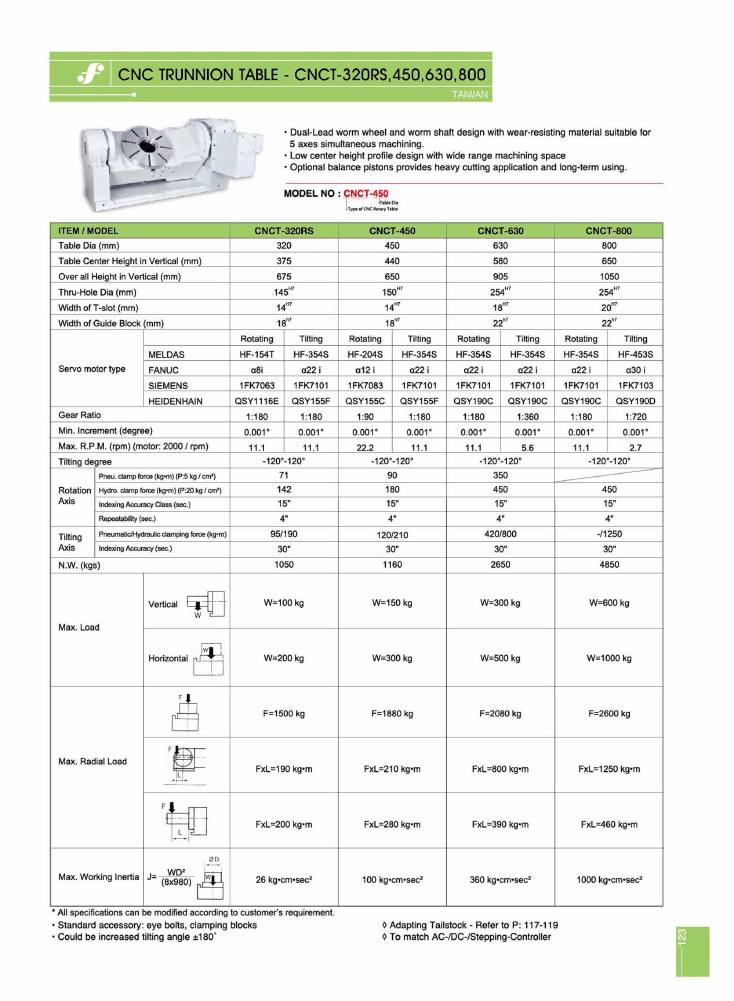

Frejoth accessory catalogue · Page 123
CNC Trunnion Table
Models on this page
CNCT-320RSCNCT-450CNCT-630CNCT-800
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CNC Trunnion Table - CNCT-320RS, 450, 630, 800
CNCT · Taiwan
- Dual-Lead worm wheel and worm shaft design with wear-resisting material suitable for 5 axes simultaneous machining.
- Low center height profile design with wide range machining space
- Optional balance pistons provides heavy cutting application and long-term using.
| model | table_dia_mm | table_center_height_in_vertical_mm | over_all_height_in_vertical_mm | thru_hole_dia_mm | width_of_t_slot_mm | width_of_guide_block_mm | servo_motor_meldas_rotating | servo_motor_meldas_tilting | servo_motor_fanuc_rotating | servo_motor_fanuc_tilting | servo_motor_siemens_rotating | servo_motor_siemens_tilting | servo_motor_heidenhain_rotating | servo_motor_heidenhain_tilting | gear_ratio_rotating | gear_ratio_tilting | min_increment_degree_rotating | min_increment_degree_tilting | max_rpm_rotating | max_rpm_tilting | tilting_degree | rotation_axis_pneu_clamp_force_kgm | rotation_axis_hydro_clamp_force_kgm | rotation_axis_indexing_accuracy_class_sec | rotation_axis_repeatability_sec | tilting_axis_pneumatic_hydraulic_clamping_force_kgm | tilting_axis_indexing_accuracy_sec | nw_kgs | max_load_vertical | max_load_horizontal | max_radial_load_f | max_radial_load_fxl_row2 | max_radial_load_fxl_row3 | max_working_inertia |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CNCT-320RS | 320 | 375 | 675 | 145H7 | 14H7 | 18h7 | HF-154T | HF-354S | α8i | α22 i | 1FK7063 | 1FK7101 | QSY1116E | QSY155F | 1:180 | 1:180 | 0.001° | 0.001° | 11.1 | 11.1 | -120°-120° | 71 | 142 | 15" | 4" | 95/190 | 30" | 1050 | W=100 kg | W=200 kg | F=1500 kg | FxL=190 kg•m | FxL=200 kg•m | 26 kg•cm•sec² |
| CNCT-450 | 450 | 440 | 650 | 150H7 | 14H7 | 18h7 | HF-204S | HF-354S | α12 i | α22 i | 1FK7083 | 1FK7101 | QSY155C | QSY155F | 1:90 | 1:180 | 0.001° | 0.001° | 22.2 | 11.1 | -120°-120° | 90 | 180 | 15" | 4" | 120/210 | 30" | 1160 | W=150 kg | W=300 kg | F=1880 kg | FxL=210 kg•m | FxL=280 kg•m | 100 kg•cm•sec² |
| CNCT-630 | 630 | 580 | 905 | 254H7 | 18H7 | 22h7 | HF-354S | HF-354S | α22 i | α22 i | 1FK7101 | 1FK7101 | QSY190C | QSY190C | 1:180 | 1:360 | 0.001° | 0.001° | 11.1 | 5.6 | -120°-120° | 350 | 450 | 15" | 4" | 420/800 | 30" | 2650 | W=300 kg | W=500 kg | F=2080 kg | FxL=800 kg•m | FxL=390 kg•m | 360 kg•cm•sec² |
| CNCT-800 | 800 | 650 | 1050 | 254H7 | 20H7 | 22h7 | HF-354S | HF-453S | α22 i | α30 i | 1FK7101 | 1FK7103 | QSY190C | QSY190D | 1:180 | 1:720 | 0.001° | 0.001° | 11.1 | 2.7 | -120°-120° | — | 450 | 15" | 4" | -/1250 | 30" | 4850 | W=600 kg | W=1000 kg | F=2600 kg | FxL=1250 kg•m | FxL=460 kg•m | 1000 kg•cm•sec² |
| Code | Model |
|---|---|
| on request | CNCT-320RS |
| on request | CNCT-450 |
| on request | CNCT-630 |
| on request | CNCT-800 |
Model number is read as CNCT-450 = type of CNC rotary table + table diameter. All specifications can be modified according to customer's requirement. Standard accessory: eye bolts, clamping blocks. Could be increased tilting angle ±180°. Adapting Tailstock - Refer to P: 117-119. To match AC-/DC-/Stepping-Controller.
