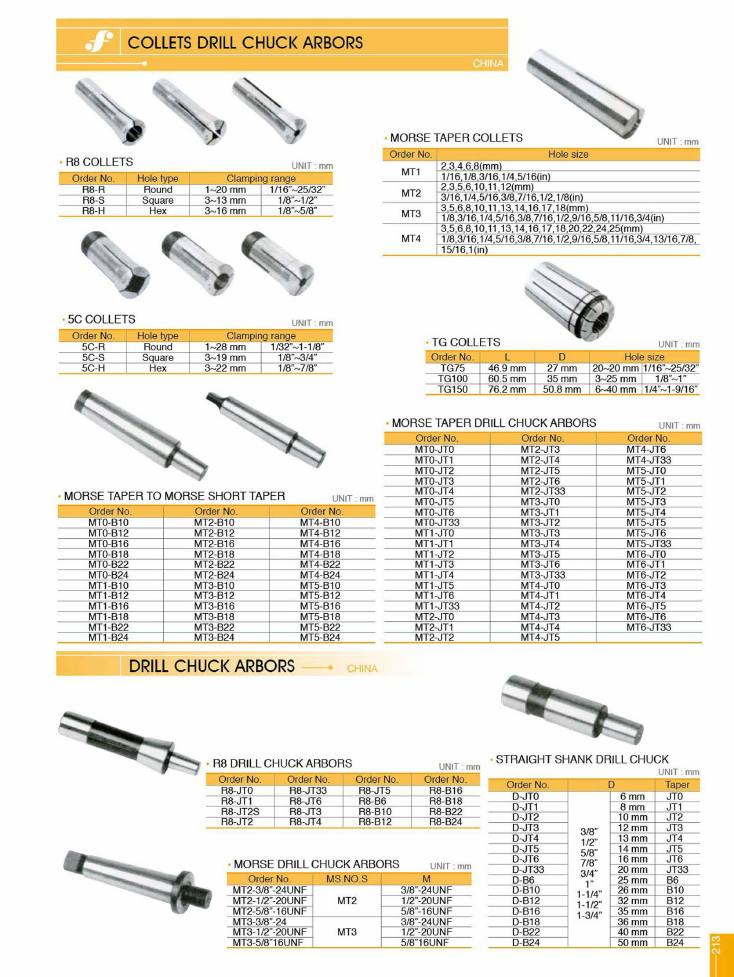

Source Frejoth catalogue page 216 — COLLETS DRILL CHUCK ARBORS
Open full-size source page
Frejoth accessory catalogue · Page 216

COLLETS DRILL CHUCK ARBORS

Models on this page

5C-H5C-R5C-SD-B10D-B12D-B16D-B18D-B22D-B24D-B6D-JT0D-JT1D-JT2D-JT3D-JT33D-JT4D-JT5D-JT6MT0-B10MT0-B12MT0-B16MT0-B18MT0-B22MT0-B24MT0-JT0MT0-JT1MT0-JT2MT0-JT3MT0-JT33MT0-JT4MT0-JT5MT0-JT6MT1MT1-B10MT1-B12MT1-B16MT1-B18MT1-B22MT1-B24MT1-JT0MT1-JT1MT1-JT2MT1-JT3MT1-JT33MT1-JT4MT1-JT5MT1-JT6MT2MT2-1/2"-20UNFMT2-3/8"-24UNFMT2-5/8"-16UNFMT2-B10MT2-B12MT2-B16MT2-B18MT2-B22MT2-B24MT2-JT0MT2-JT1MT2-JT2MT2-JT3MT2-JT33MT2-JT4MT2-JT5MT2-JT6MT3MT3-1/2"-20UNFMT3-3/8"-24MT3-5/8"16UNFMT3-B10MT3-B12MT3-B16MT3-B18MT3-B22MT3-B24MT3-JT0MT3-JT1MT3-JT2MT3-JT3MT3-JT33MT3-JT4MT3-JT5MT3-JT6MT4MT4-B10MT4-B12MT4-B16MT4-B18MT4-B22MT4-B24MT4-JT0MT4-JT1MT4-JT2MT4-JT3MT4-JT33MT4-JT4MT4-JT5MT4-JT6MT5-B10MT5-B12MT5-B16MT5-B18MT5-B22MT5-B24MT5-JT0MT5-JT1MT5-JT2MT5-JT3MT5-JT33MT5-JT4MT5-JT5MT5-JT6MT6-JT0MT6-JT1MT6-JT2MT6-JT3MT6-JT33MT6-JT4MT6-JT5MT6-JT6R8-B10R8-B12R8-B16R8-B18R8-B22R8-B24R8-B6R8-HR8-JT0R8-JT1R8-JT2R8-JT2SR8-JT3R8-JT33R8-JT4R8-JT5R8-JT6R8-RR8-STG100TG150TG75

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

R8 COLLETS

CHINA
specifications (mm)
order_nohole_typeclamping_range_mmclamping_range_in
R8-RRound1~20 mm1/16"~25/32"
R8-SSquare3~13 mm1/8"~1/2"
R8-HHex3~16 mm1/8"~5/8"
Order references
CodeModel
on requestR8-R
on requestR8-S
on requestR8-H

Under section heading 'COLLETS DRILL CHUCK ARBORS'.

5C COLLETS

CHINA
specifications (mm)
order_nohole_typeclamping_range_mmclamping_range_in
5C-RRound1~28 mm1/32"~1-1/8"
5C-SSquare3~19 mm1/8"~3/4"
5C-HHex3~22 mm1/8"~7/8"
Order references
CodeModel
on request5C-R
on request5C-S
on request5C-H

MORSE TAPER COLLETS

CHINA
hole_sizes (mixed)
order_nohole_size_mmhole_size_in
MT12,3,4,6,8(mm)1/16,1/8,3/16,1/4,5/16(in)
MT22,3,5,6,10,11,12(mm)3/16,1/4,5/16,3/8,7/16,1/2,1/8(in)
MT33,5,6,8,10,11,13,14,16,17,18(mm)1/8,3/16,1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4(in)
MT43,5,6,8,10,11,13,14,16,17,18,20,22,24,25(mm)1/8,3/16,1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8,15/16,1(in)
Order references
CodeModel
on requestMT1
on requestMT2
on requestMT3
on requestMT4

TG COLLETS

CHINA
specifications (mm)
order_noldhole_size_mmhole_size_in
TG7546.9 mm27 mm20~20 mm1/16"~25/32"
TG10060.5 mm35 mm3~25 mm1/8"~1"
TG15076.2 mm50.8 mm6~40 mm1/4"~1-9/16"
Order references
CodeModel
on requestTG75
on requestTG100
on requestTG150

MORSE TAPER TO MORSE SHORT TAPER

CHINA
order_numbers (mm)
order_no
MT0-B10
MT0-B12
MT0-B16
MT0-B18
MT0-B22
MT0-B24
MT1-B10
MT1-B12
MT1-B16
MT1-B18
MT1-B22
MT1-B24
MT2-B10
MT2-B12
MT2-B16
MT2-B18
MT2-B22
MT2-B24
MT3-B10
MT3-B12
MT3-B16
MT3-B18
MT3-B22
MT3-B24
MT4-B10
MT4-B12
MT4-B16
MT4-B18
MT4-B22
MT4-B24
MT5-B10
MT5-B12
MT5-B16
MT5-B18
MT5-B22
MT5-B24
Order references
CodeModel
on requestMT3-B22
on requestMT3-B24
on requestMT4-B10
on requestMT4-B12
on requestMT4-B16
on requestMT4-B18
on requestMT4-B22
on requestMT4-B24
on requestMT5-B10
on requestMT5-B12
on requestMT5-B16
on requestMT5-B18
on requestMT5-B22
on requestMT5-B24
on requestMT0-B10
on requestMT0-B12
on requestMT0-B16
on requestMT0-B18
on requestMT0-B22
on requestMT0-B24
on requestMT1-B10
on requestMT1-B12
on requestMT1-B16
on requestMT1-B18
on requestMT1-B22
on requestMT1-B24
on requestMT2-B10
on requestMT2-B12
on requestMT2-B16
on requestMT2-B18
on requestMT2-B22
on requestMT2-B24
on requestMT3-B10
on requestMT3-B12
on requestMT3-B16
on requestMT3-B18

Printed as three parallel 'Order No.' columns; recorded here as one continuous list.

MORSE TAPER DRILL CHUCK ARBORS

CHINA
order_numbers (mm)
order_no
MT0-JT0
MT0-JT1
MT0-JT2
MT0-JT3
MT0-JT4
MT0-JT5
MT0-JT6
MT0-JT33
MT1-JT0
MT1-JT1
MT1-JT2
MT1-JT3
MT1-JT4
MT1-JT5
MT1-JT6
MT1-JT33
MT2-JT0
MT2-JT1
MT2-JT2
MT2-JT3
MT2-JT4
MT2-JT5
MT2-JT6
MT2-JT33
MT3-JT0
MT3-JT1
MT3-JT2
MT3-JT3
MT3-JT4
MT3-JT5
MT3-JT6
MT3-JT33
MT4-JT0
MT4-JT1
MT4-JT2
MT4-JT3
MT4-JT4
MT4-JT5
MT4-JT6
MT4-JT33
MT5-JT0
MT5-JT1
MT5-JT2
MT5-JT3
MT5-JT4
MT5-JT5
MT5-JT6
MT5-JT33
MT6-JT0
MT6-JT1
MT6-JT2
MT6-JT3
MT6-JT4
MT6-JT5
MT6-JT6
MT6-JT33
Order references
CodeModel
on requestMT0-JT0
on requestMT0-JT1
on requestMT0-JT2
on requestMT0-JT3
on requestMT0-JT4
on requestMT0-JT5
on requestMT0-JT6
on requestMT0-JT33
on requestMT1-JT0
on requestMT1-JT1
on requestMT1-JT2
on requestMT1-JT3
on requestMT1-JT4
on requestMT1-JT5
on requestMT1-JT6
on requestMT1-JT33
on requestMT2-JT0
on requestMT2-JT1
on requestMT2-JT2
on requestMT2-JT3
on requestMT2-JT4
on requestMT2-JT5
on requestMT2-JT6
on requestMT2-JT33
on requestMT3-JT0
on requestMT3-JT1
on requestMT3-JT2
on requestMT3-JT3
on requestMT3-JT4
on requestMT3-JT5
on requestMT3-JT6
on requestMT3-JT33
on requestMT4-JT0
on requestMT4-JT1
on requestMT4-JT2
on requestMT4-JT3
on requestMT4-JT4
on requestMT4-JT5
on requestMT4-JT6
on requestMT4-JT33
on requestMT5-JT0
on requestMT5-JT1
on requestMT5-JT2
on requestMT5-JT3
on requestMT5-JT4
on requestMT5-JT5
on requestMT5-JT6
on requestMT5-JT33
on requestMT6-JT0
on requestMT6-JT1
on requestMT6-JT2
on requestMT6-JT3
on requestMT6-JT4
on requestMT6-JT5
on requestMT6-JT6
on requestMT6-JT33

Printed as three parallel 'Order No.' columns; recorded here as one continuous list.

R8 DRILL CHUCK ARBORS

CHINA
order_numbers (mm)
order_no
R8-JT0
R8-JT1
R8-JT2S
R8-JT2
R8-JT33
R8-JT6
R8-JT3
R8-JT4
R8-JT5
R8-B6
R8-B10
R8-B12
R8-B16
R8-B18
R8-B22
R8-B24
Order references
CodeModel
on requestR8-JT0
on requestR8-JT1
on requestR8-JT2S
on requestR8-JT2
on requestR8-JT33
on requestR8-JT6
on requestR8-JT3
on requestR8-JT4
on requestR8-JT5
on requestR8-B6
on requestR8-B10
on requestR8-B12
on requestR8-B16
on requestR8-B18
on requestR8-B22
on requestR8-B24

Under section heading 'DRILL CHUCK ARBORS' (CHINA). Printed as four parallel 'Order No.' columns; recorded here as one continuous list.

MORSE DRILL CHUCK ARBORS

CHINA
specifications (mm)
order_noms_no_sm
MT2-3/8"-24UNFMT23/8"-24UNF
MT2-1/2"-20UNFMT21/2"-20UNF
MT2-5/8"-16UNFMT25/8"-16UNF
MT3-3/8"-24MT33/8"-24UNF
MT3-1/2"-20UNFMT31/2"-20UNF
MT3-5/8"16UNFMT35/8"16UNF
Order references
CodeModel
on requestMT2-3/8"-24UNF
on requestMT2-1/2"-20UNF
on requestMT2-5/8"-16UNF
on requestMT3-3/8"-24
on requestMT3-1/2"-20UNF
on requestMT3-5/8"16UNF

STRAIGHT SHANK DRILL CHUCK

CHINA
specifications (mm)
order_nod_shank_ind_mmtaper
D-JT0—6 mmJT0
D-JT1—8 mmJT1
D-JT2—10 mmJT2
D-JT3—12 mmJT3
D-JT4—13 mmJT4
D-JT5—14 mmJT5
D-JT6—16 mmJT6
D-JT33—20 mmJT33
D-B6—25 mmB6
D-B10—26 mmB10
D-B12—32 mmB12
D-B16—35 mmB16
D-B18—36 mmB18
D-B22—40 mmB22
D-B24—50 mmB24
Order references
CodeModel
on requestD-JT0
on requestD-JT1
on requestD-JT2
on requestD-JT3
on requestD-JT4
on requestD-JT5
on requestD-JT6
on requestD-JT33
on requestD-B6
on requestD-B10
on requestD-B12
on requestD-B16
on requestD-B18
on requestD-B22
on requestD-B24

The D column prints a floating block of shank sizes (3/8", 1/2", 5/8", 7/8", 3/4", 1", 1-1/4", 1-1/2", 1-3/4") that is not row-aligned to the 15 order numbers; only the mm sub-column is per-row.
