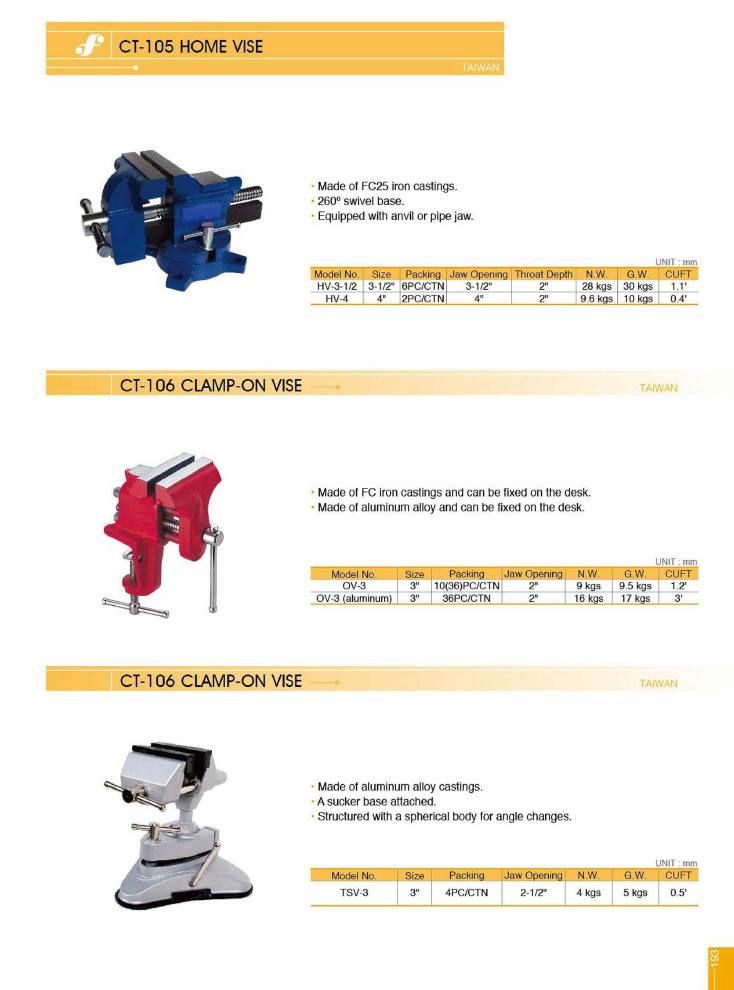

Frejoth accessory catalogue · Page 196
CT-105 HOME VISE
Models on this page
HV-3-1/2HV-4OV-3OV-3 (aluminum)TSV-3
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
CT-105 HOME VISE
HV · Taiwan
- Made of FC25 iron castings.
- 260º swivel base.
- Equipped with anvil or pipe jaw.
| model_no | size | packing | jaw_opening | throat_depth | nw_kgs | gw_kgs | cuft |
|---|---|---|---|---|---|---|---|
| HV-3-1/2 | 3-1/2" | 6PC/CTN | 3-1/2" | 2" | 28 | 30 | 1.1 |
| HV-4 | 4" | 2PC/CTN | 4" | 2" | 9.6 | 10 | 0.4 |
| Code | Model |
|---|---|
| on request | HV-3-1/2 |
| on request | HV-4 |
CT-106 CLAMP-ON VISE
OV · Taiwan
- Made of FC iron castings and can be fixed on the desk.
- Made of aluminum alloy and can be fixed on the desk.
| model_no | size | packing | jaw_opening | nw_kgs | gw_kgs | cuft |
|---|---|---|---|---|---|---|
| OV-3 | 3" | 10(36)PC/CTN | 2" | 9 | 9.5 | 1.2 |
| OV-3 (aluminum) | 3" | 36PC/CTN | 2" | 16 | 17 | 3 |
| Code | Model |
|---|---|
| on request | OV-3 |
| on request | OV-3 (aluminum) |
| on request | TSV-3 |
CT-106 CLAMP-ON VISE
TSV · Taiwan
- Made of aluminum alloy castings.
- A sucker base attached.
- Structured with a spherical body for angle changes.
| model_no | size | packing | jaw_opening | nw_kgs | gw_kgs | cuft |
|---|---|---|---|---|---|---|
| TSV-3 | 3" | 4PC/CTN | 2-1/2" | 4 | 5 | 0.5 |
Second product on the page printed under an identical CT-106 CLAMP-ON VISE heading; the photo and features describe a suction-base swivel vise.
