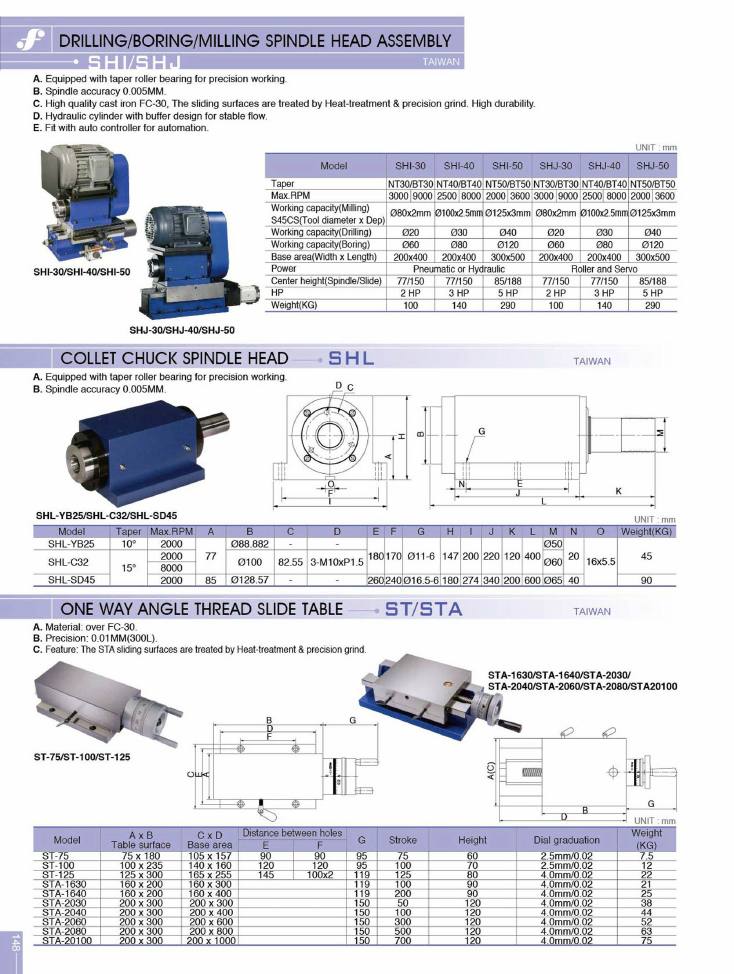

Frejoth accessory catalogue · Page 148
Drilling/Boring/Milling Spindle Head Assembly
Models on this page
SHI-30SHI-40SHI-50SHJ-30SHJ-40SHJ-50SHL-C32SHL-SD45SHL-YB25ST-100ST-125ST-75STA-1630STA-1640STA-20100STA-2030STA-2040STA-2060STA-2080
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Drilling/Boring/Milling Spindle Head Assembly
SHI/SHJ · Taiwan
- Equipped with taper roller bearing for precision working.
- Spindle accuracy 0.005MM.
- High quality cast iron FC-30, The sliding surfaces are treated by Heat-treatment & precision grind. High durability.
- Hydraulic cylinder with buffer design for stable flow.
- Fit with auto controller for automation.
| model | taper | max_rpm | working_capacity_milling_s45cs_tool_diameter_x_depth | working_capacity_drilling | working_capacity_boring | base_area_width_x_length | power | center_height_spindle_slide | hp | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|
| SHI-30 | NT30/BT30 | 3000/9000 | Ø80x2mm | Ø20 | Ø60 | 200x400 | Pneumatic or Hydraulic | 77/150 | 2 HP | 100 |
| SHI-40 | NT40/BT40 | 2500/8000 | Ø100x2.5mm | Ø30 | Ø80 | 200x400 | Pneumatic or Hydraulic | 77/150 | 3 HP | 140 |
| SHI-50 | NT50/BT50 | 2000/3600 | Ø125x3mm | Ø40 | Ø120 | 300x500 | Pneumatic or Hydraulic | 85/188 | 5 HP | 290 |
| SHJ-30 | NT30/BT30 | 3000/9000 | Ø80x2mm | Ø20 | Ø60 | 200x400 | Roller and Servo | 77/150 | 2 HP | 100 |
| SHJ-40 | NT40/BT40 | 2500/8000 | Ø100x2.5mm | Ø30 | Ø80 | 200x400 | Roller and Servo | 77/150 | 3 HP | 140 |
| SHJ-50 | NT50/BT50 | 2000/3600 | Ø125x3mm | Ø40 | Ø120 | 300x500 | Roller and Servo | 85/188 | 5 HP | 290 |
| Code | Model |
|---|---|
| on request | SHI-30 |
| on request | SHI-40 |
| on request | SHI-50 |
| on request | SHJ-30 |
| on request | SHJ-40 |
| on request | SHJ-50 |
Illustrated variants: SHI-30/SHI-40/SHI-50, SHJ-30/SHJ-40/SHJ-50.
Collet Chuck Spindle Head
SHL · Taiwan
- Equipped with taper roller bearing for precision working.
- Spindle accuracy 0.005MM.
| model | taper | max_rpm | a | b | c | d | e | f | g | h | i | j | k | l | m | n | o | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHL-YB25 | 10° | 2000 | 77 | Ø88.882 | — | — | 180 | 170 | Ø11-6 | 147 | 200 | 220 | 120 | 400 | Ø50 | 20 | 16x5.5 | 45 |
| SHL-C32 | 15° | 2000/8000 | 77 | Ø100 | 82.55 | 3-M10xP1.5 | 180 | 170 | Ø11-6 | 147 | 200 | 220 | 120 | 400 | Ø60 | 20 | 16x5.5 | 45 |
| SHL-SD45 | 15° | 2000 | 85 | Ø128.57 | — | — | 260 | 240 | Ø16.5-6 | 180 | 274 | 340 | 200 | 600 | Ø65 | 40 | 16x5.5 | 90 |
| Code | Model |
|---|---|
| on request | SHL-YB25 |
| on request | SHL-C32 |
| on request | SHL-SD45 |
Illustrated variants: SHL-YB25/SHL-C32/SHL-SD45.
One Way Angle Thread Slide Table
ST/STA · Taiwan
- Material: over FC-30.
- Precision: 0.01MM(300L).
- Feature: The STA sliding surfaces are treated by Heat-treatment & precision grind.
| model | a_x_b_table_surface | c_x_d_base_area | distance_between_holes_e | distance_between_holes_f | g | stroke | height | dial_graduation | weight_kg |
|---|---|---|---|---|---|---|---|---|---|
| ST-75 | 75 x 180 | 105 x 157 | 90 | 90 | 95 | 75 | 60 | 2.5mm/0.02 | 7.5 |
| ST-100 | 100 x 235 | 140 x 160 | 120 | 120 | 95 | 100 | 70 | 2.5mm/0.02 | 12 |
| ST-125 | 125 x 300 | 165 x 255 | 145 | 100x2 | 119 | 125 | 80 | 4.0mm/0.02 | 22 |
| STA-1630 | 160 x 200 | 160 x 300 | — | — | 119 | 100 | 90 | 4.0mm/0.02 | 21 |
| STA-1640 | 160 x 200 | 160 x 400 | — | — | 119 | 200 | 90 | 4.0mm/0.02 | 25 |
| STA-2030 | 200 x 300 | 200 x 300 | — | — | 150 | 50 | 120 | 4.0mm/0.02 | 38 |
| STA-2040 | 200 x 300 | 200 x 400 | — | — | 150 | 100 | 120 | 4.0mm/0.02 | 44 |
| STA-2060 | 200 x 300 | 200 x 600 | — | — | 150 | 300 | 120 | 4.0mm/0.02 | 52 |
| STA-2080 | 200 x 300 | 200 x 800 | — | — | 150 | 500 | 120 | 4.0mm/0.02 | 63 |
| STA-20100 | 200 x 300 | 200 x 1000 | — | — | 150 | 700 | 120 | 4.0mm/0.02 | 75 |
| Code | Model |
|---|---|
| on request | ST-75 |
| on request | ST-100 |
| on request | ST-125 |
| on request | STA-1630 |
| on request | STA-1640 |
| on request | STA-2030 |
| on request | STA-2040 |
| on request | STA-2060 |
| on request | STA-2080 |
| on request | STA-20100 |
Illustrated variants: ST-75/ST-100/ST-125 and STA-1630/STA-1640/STA-2030/STA-2040/STA-2060/STA-2080/STA20100.
