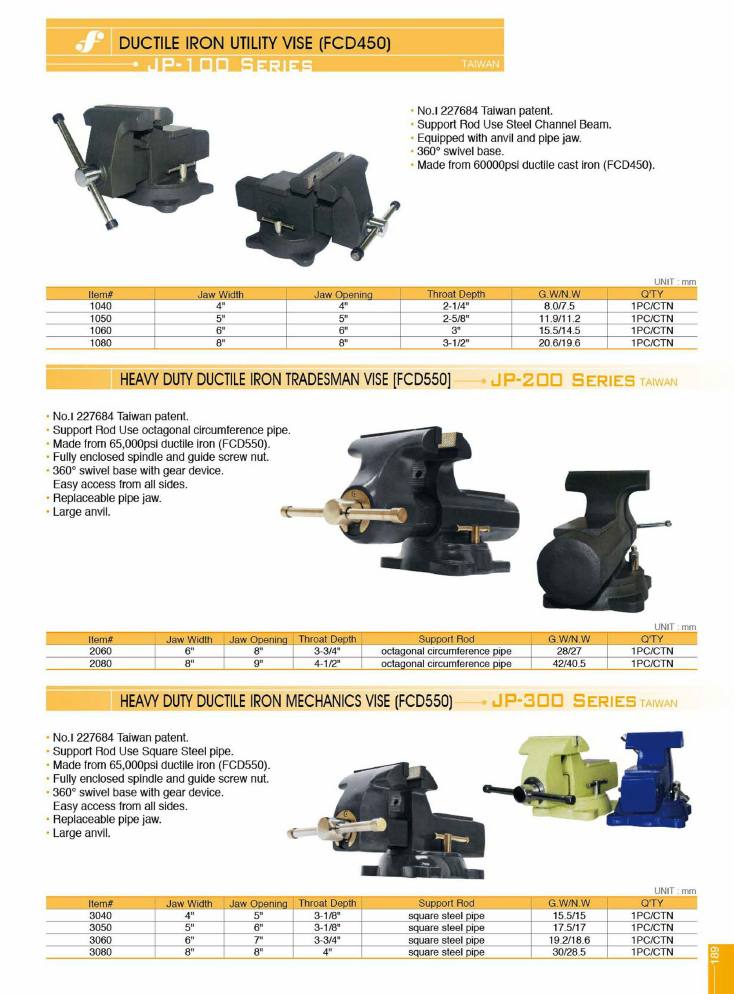

Frejoth accessory catalogue · Page 192
DUCTILE IRONUTILITYVISE(FCD450)
Models on this page
1040105010601080206020803040305030603080
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
DUCTILE IRON UTILITY VISE (FCD450)
JP-100 Series · Taiwan
- No.I 227684 Taiwan patent.
- Support Rod Use Steel Channel Beam.
- Equipped with anvil and pipe jaw.
- 360° swivel base.
- Made from 60000psi ductile cast iron (FCD450).
| item_no | jaw_width | jaw_opening | throat_depth | gw_nw | qty |
|---|---|---|---|---|---|
| 1040 | 4" | 4" | 2-1/4" | 8.0/7.5 | 1PC/CTN |
| 1050 | 5" | 5" | 2-5/8" | 11.9/11.2 | 1PC/CTN |
| 1060 | 6" | 6" | 3" | 15.5/14.5 | 1PC/CTN |
| 1080 | 8" | 8" | 3-1/2" | 20.6/19.6 | 1PC/CTN |
| Code | Model |
|---|---|
| 1040 | 1040 |
| 1050 | 1050 |
| 1060 | 1060 |
| 1080 | 1080 |
HEAVY DUTY DUCTILE IRON TRADESMAN VISE [FCD550]
JP-200 Series · Taiwan
- No.I 227684 Taiwan patent.
- Support Rod Use octagonal circumference pipe.
- Made from 65,000psi ductile iron (FCD550).
- Fully enclosed spindle and guide screw nut.
- 360° swivel base with gear device. Easy access from all sides.
- Replaceable pipe jaw.
- Large anvil.
| item_no | jaw_width | jaw_opening | throat_depth | support_rod | gw_nw | qty |
|---|---|---|---|---|---|---|
| 2060 | 6" | 8" | 3-3/4" | octagonal circumference pipe | 28/27 | 1PC/CTN |
| 2080 | 8" | 9" | 4-1/2" | octagonal circumference pipe | 42/40.5 | 1PC/CTN |
| Code | Model |
|---|---|
| 2060 | 2060 |
| 2080 | 2080 |
HEAVY DUTY DUCTILE IRON MECHANICS VISE (FCD550)
JP-300 Series · Taiwan
- No.I 227684 Taiwan patent.
- Support Rod Use Square Steel pipe.
- Made from 65,000psi ductile iron (FCD550).
- Fully enclosed spindle and guide screw nut.
- 360° swivel base with gear device. Easy access from all sides.
- Replaceable pipe jaw.
- Large anvil.
| item_no | jaw_width | jaw_opening | throat_depth | support_rod | gw_nw | qty |
|---|---|---|---|---|---|---|
| 3040 | 4" | 5" | 3-1/8" | square steel pipe | 15.5/15 | 1PC/CTN |
| 3050 | 5" | 6" | 3-1/8" | square steel pipe | 17.5/17 | 1PC/CTN |
| 3060 | 6" | 7" | 3-3/4" | square steel pipe | 19.2/18.6 | 1PC/CTN |
| 3080 | 8" | 8" | 4" | square steel pipe | 30/28.5 | 1PC/CTN |
| Code | Model |
|---|---|
| 3040 | 3040 |
| 3050 | 3050 |
| 3060 | 3060 |
| 3080 | 3080 |
