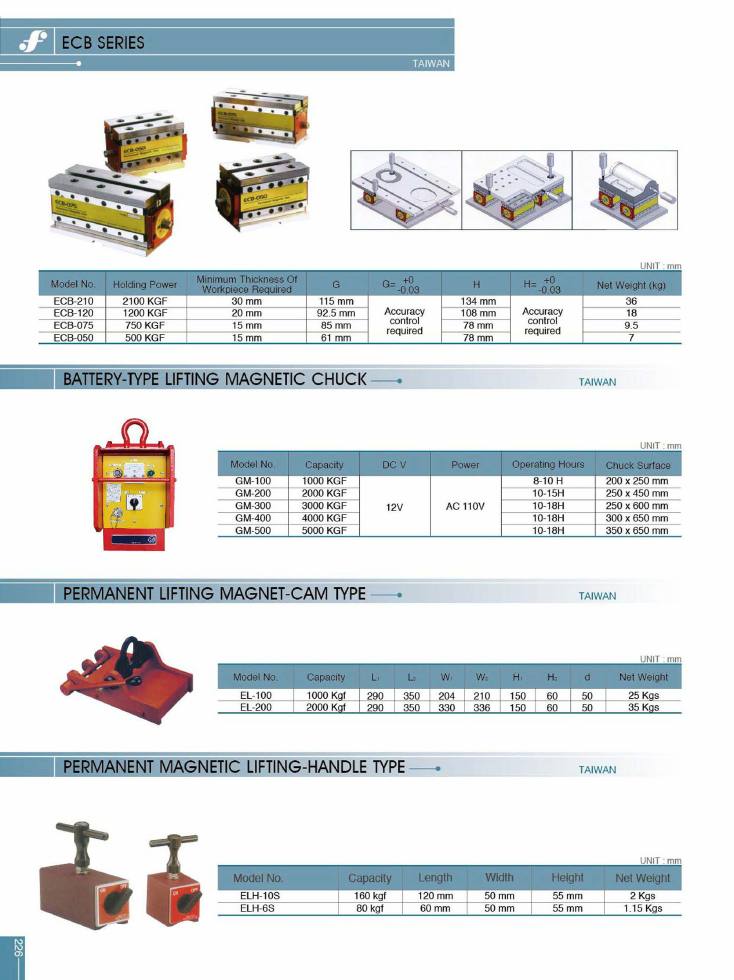

ECB SERIES

Models on this page

ECB-050ECB-075ECB-120ECB-210EL-100EL-200ELH-10SELH-6SGM-100GM-200GM-300GM-400GM-500

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

ECB Series

ECB · Taiwan

specifications (mm)
model_no	holding_power	minimum_thickness_of_workpiece_required	g	g_tolerance_plus_0_minus_0_03	h	h_tolerance_plus_0_minus_0_03	net_weight_kg
ECB-210	2100 KGF	30 mm	115 mm	Accuracy control required	134 mm	Accuracy control required	36
ECB-120	1200 KGF	20 mm	92.5 mm	Accuracy control required	108 mm	Accuracy control required	18
ECB-075	750 KGF	15 mm	85 mm	Accuracy control required	78 mm	Accuracy control required	9.5
ECB-050	500 KGF	15 mm	61 mm	Accuracy control required	78 mm	Accuracy control required	7

Order references
Code	Model
on request	ECB-210
on request	ECB-120
on request	ECB-075
on request	ECB-050

Permanent magnetic vises. Photographs show ECB-050 and ECB-075 bodies plus three application illustrations of workpieces clamped between paired units.

Battery-Type Lifting Magnetic Chuck

GM · Taiwan

specifications (mm)
model_no	capacity	dc_v	power	operating_hours	chuck_surface
GM-100	1000 KGF	12V	AC 110V	8-10 H	200 x 250 mm
GM-200	2000 KGF	12V	AC 110V	10-15H	250 x 450 mm
GM-300	3000 KGF	12V	AC 110V	10-18H	250 x 600 mm
GM-400	4000 KGF	12V	AC 110V	10-18H	300 x 650 mm
GM-500	5000 KGF	12V	AC 110V	10-18H	350 x 650 mm

Order references
Code	Model
on request	GM-200
on request	GM-100
on request	GM-300
on request	GM-400
on request	GM-500

Permanent Lifting Magnet-Cam Type

EL · Taiwan

specifications (mm)
model_no	capacity	l1	l2	w1	w2	h1	h2	d	net_weight
EL-100	1000 Kgf	290	350	204	210	150	60	50	25 Kgs
EL-200	2000 Kgf	290	350	330	336	150	60	50	35 Kgs

Order references
Code	Model
on request	EL-100
on request	EL-200

Permanent Magnetic Lifting-Handle Type

ELH · Taiwan

specifications (mm)
model_no	capacity	length	width	height	net_weight
ELH-10S	160 kgf	120 mm	50 mm	55 mm	2 Kgs
ELH-6S	80 kgf	60 mm	50 mm	55 mm	1.15 Kgs

Order references
Code	Model
on request	ELH-10S
on request	ELH-6S
