Machanical Edge Finder

Taiwan

Ø10 mm straight shank can be installed directly on milling chuck or drilling chuck. (refer to Fig.1)
Press slightly on edge of sensor unit with hands to keep eccentricity at 0.5 mm (refer to Fig.2)
Rotate with speed of 400-600 rpm.
Make sensor unit contact to the end face of workpiece shown as Fig. 2. Then, contact and move gradually, it is going to turn into Fig. 3 and sensor unit keeps still. Futhermore, if fine feed is started, then sensor unit will move according to a specific direction. The start point of this movement is the basic position to look for.
The position of end face of the workpiece is the coordinate position of sensor unit plus radius 5 mm.

mechanical_edge_finder_models (mm)
model_no	g_w_kgs	shipment_size_lxwxh
SME-610	0.04	95 x 26 x 26
SME-420	0.07	95 x 26 x 26
SME-1020	0.07	95 x 26 x 26
SME-420ST	0.07	95 x 26 x 26
SME-1020ST	0.07	95 x 26 x 26
TN-10	0.08	120 x 45 x 25
TN-410	0.08	120 x 45 x 25

dimension_drawings (mm)
model	overall_length	shank_dia	body_dia	tip_dia	tip_step_dimensions
SME-610	64	ø10	—	ø6 / ø10	7, 11
SME-420	88	ø10	ø20	ø4 / ø10	7, 8
SME-1020	83	ø10	ø20	—	10

Order references
Code	Model
on request	SME-610
on request	SME-420
on request	SME-1020
on request	SME-420ST
on request	SME-1020ST
on request	TN-10
on request	TN-410

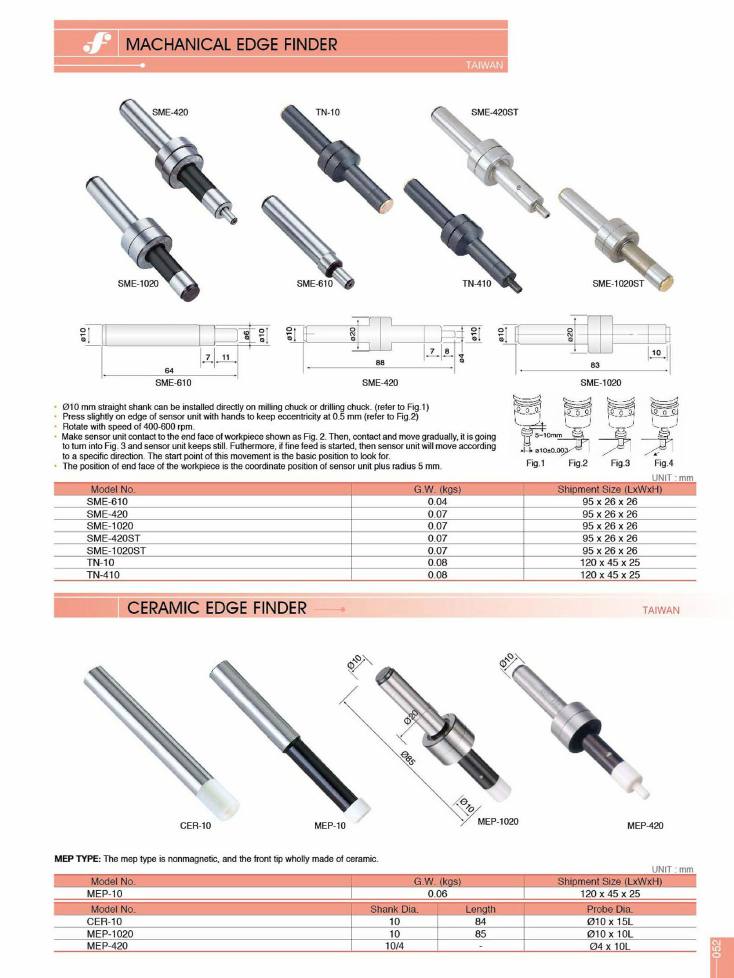

Section header is printed 'MACHANICAL EDGE FINDER' (sic). Models illustrated: SME-420, SME-1020, SME-610, SME-420ST, SME-1020ST, TN-10, TN-410. Fig.2 detail annotates ø10±0.003.
