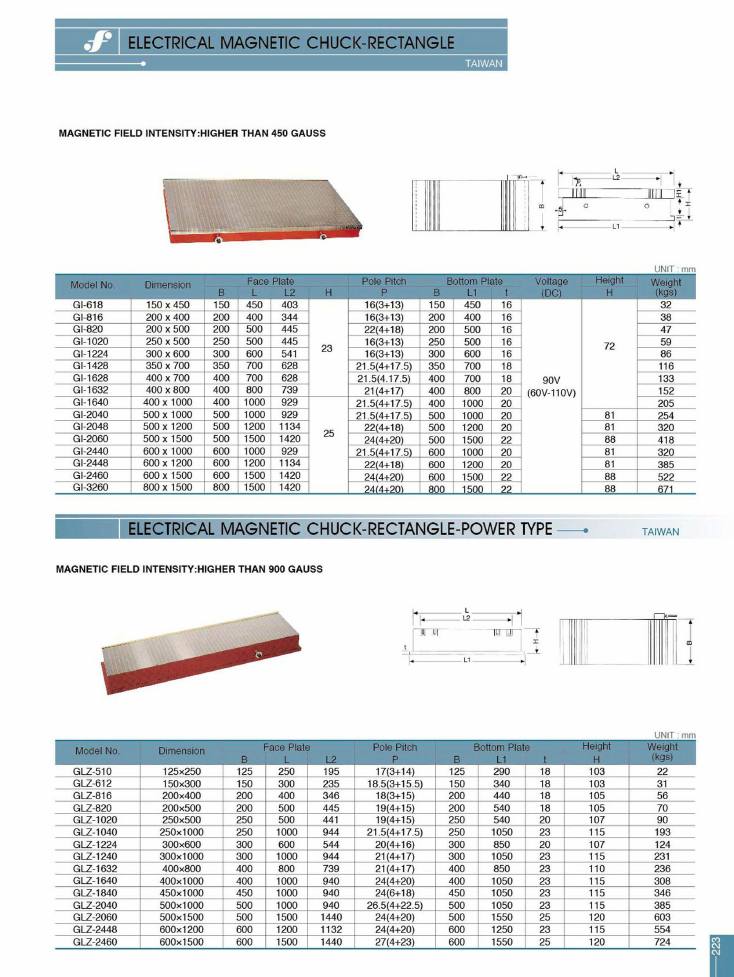

ELECTRICAL MAGNETIC CHUCK-RECTANGLE

Models on this page

GI-1020GI-1224GI-1428GI-1628GI-1632GI-1640GI-2040GI-2048GI-2060GI-2440GI-2448GI-2460GI-3260GI-618GI-816GI-820GLZ-1020GLZ-1040GLZ-1224GLZ-1240GLZ-1632GLZ-1640GLZ-1840GLZ-2040GLZ-2060GLZ-2448GLZ-2460GLZ-510GLZ-612GLZ-816GLZ-820

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Electrical Magnetic Chuck-Rectangle

GI · Taiwan

MAGNETIC FIELD INTENSITY:HIGHER THAN 450 GAUSS

specifications (mm)
model_no	dimension	face_plate_b	face_plate_l	face_plate_l2	face_plate_h	pole_pitch_p	bottom_plate_b	bottom_plate_l1	bottom_plate_t	voltage_dc	height_h	weight_kgs
GI-618	150 x 450	150	450	403	23	16(3+13)	150	450	16	90V (60V-110V)	72	32
GI-816	200 x 400	200	400	344	23	16(3+13)	200	400	16	90V (60V-110V)	72	38
GI-820	200 x 500	200	500	445	23	22(4+18)	200	500	16	90V (60V-110V)	72	47
GI-1020	250 x 500	250	500	445	23	16(3+13)	250	500	16	90V (60V-110V)	72	59
GI-1224	300 x 600	300	600	541	23	16(3+13)	300	600	16	90V (60V-110V)	72	86
GI-1428	350 x 700	350	700	628	23	21.5(4+17.5)	350	700	18	90V (60V-110V)	72	116
GI-1628	400 x 700	400	700	628	23	21.5(4.17.5)	400	700	18	90V (60V-110V)	72	133
GI-1632	400 x 800	400	800	739	23	21(4+17)	400	800	20	90V (60V-110V)	72	152
GI-1640	400 x 1000	400	1000	929	25	21.5(4+17.5)	400	1000	20	90V (60V-110V)	72	205
GI-2040	500 x 1000	500	1000	929	25	21.5(4+17.5)	500	1000	20	90V (60V-110V)	81	254
GI-2048	500 x 1200	500	1200	1134	25	22(4+18)	500	1200	20	90V (60V-110V)	81	320
GI-2060	500 x 1500	500	1500	1420	25	24(4+20)	500	1500	22	90V (60V-110V)	88	418
GI-2440	600 x 1000	600	1000	929	25	21.5(4+17.5)	600	1000	20	90V (60V-110V)	81	320
GI-2448	600 x 1200	600	1200	1134	25	22(4+18)	600	1200	20	90V (60V-110V)	81	385
GI-2460	600 x 1500	600	1500	1420	25	24(4+20)	600	1500	22	90V (60V-110V)	88	522
GI-3260	800 x 1500	800	1500	1420	25	24(4+20)	800	1500	22	90V (60V-110V)	88	671

Order references
Code	Model
on request	GI-618
on request	GI-816
on request	GI-820
on request	GI-1020
on request	GI-1224
on request	GI-1428
on request	GI-1628
on request	GI-1632
on request	GI-1640
on request	GI-2040
on request	GI-2048
on request	GI-2060
on request	GI-2440
on request	GI-2448
on request	GI-2460
on request	GI-3260

Face Plate H, Voltage and Height H are printed as merged cells spanning several rows; the spanned value has been repeated on each row.

Electrical Magnetic Chuck-Rectangle-Power Type

GLZ · Taiwan

MAGNETIC FIELD INTENSITY:HIGHER THAN 900 GAUSS

specifications (mm)
model_no	dimension	face_plate_b	face_plate_l	face_plate_l2	pole_pitch_p	bottom_plate_b	bottom_plate_l1	bottom_plate_t	height_h	weight_kgs
GLZ-510	125×250	125	250	195	17(3+14)	125	290	18	103	22
GLZ-612	150×300	150	300	235	18.5(3+15.5)	150	340	18	103	31
GLZ-816	200×400	200	400	346	18(3+15)	200	440	18	105	56
GLZ-820	200×500	200	500	445	19(4+15)	200	540	18	105	70
GLZ-1020	250×500	250	500	441	19(4+15)	250	540	20	107	90
GLZ-1040	250×1000	250	1000	944	21.5(4+17.5)	250	1050	23	115	193
GLZ-1224	300×600	300	600	544	20(4+16)	300	850	20	107	124
GLZ-1240	300×1000	300	1000	944	21(4+17)	300	1050	23	115	231
GLZ-1632	400×800	400	800	739	21(4+17)	400	850	23	110	236
GLZ-1640	400×1000	400	1000	940	24(4+20)	400	1050	23	115	308
GLZ-1840	450×1000	450	1000	940	24(6+18)	450	1050	23	115	346
GLZ-2040	500×1000	500	1000	940	26.5(4+22.5)	500	1050	23	115	385
GLZ-2060	500×1500	500	1500	1440	24(4+20)	500	1550	25	120	603
GLZ-2448	600×1200	600	1200	1132	24(4+20)	600	1250	23	115	554
GLZ-2460	600×1500	600	1500	1440	27(4+23)	600	1550	25	120	724

Order references
Code	Model
on request	GLZ-510
on request	GLZ-612
on request	GLZ-816
on request	GLZ-820
on request	GLZ-1020
on request	GLZ-1040
on request	GLZ-1224
on request	GLZ-1240
on request	GLZ-1632
on request	GLZ-1640
on request	GLZ-1840
on request	GLZ-2040
on request	GLZ-2060
on request	GLZ-2448
on request	GLZ-2460
