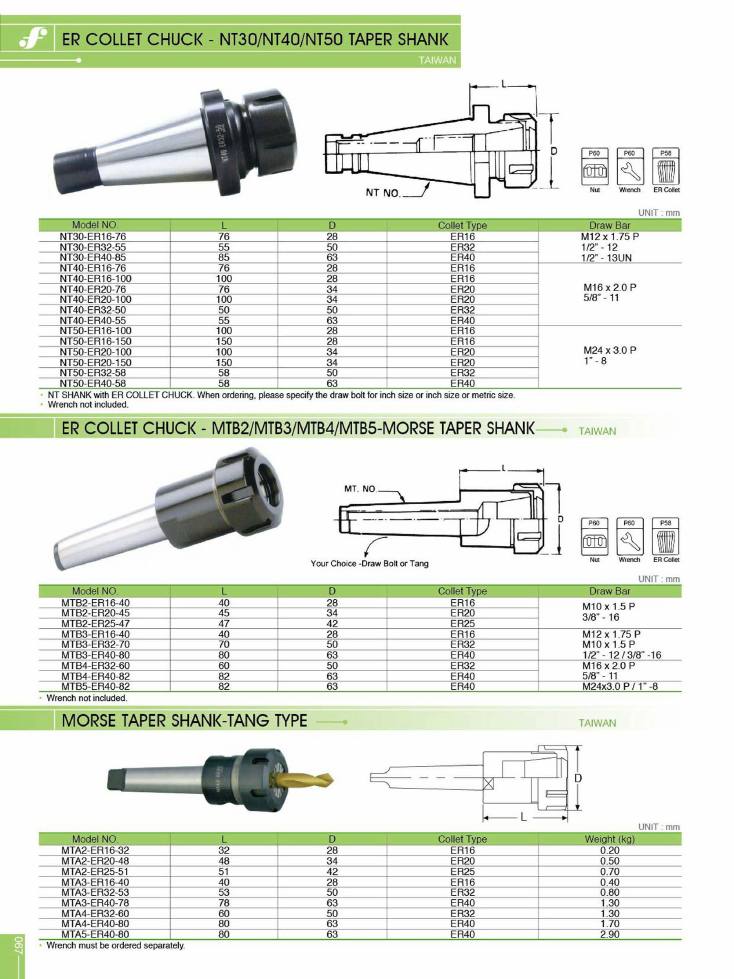

Frejoth accessory catalogue · Page 67

ER collet chuck / Morse taper shank

Models on this page

MTA2-ER16-32MTA2-ER20-48MTA2-ER25-51MTA3-ER16-40MTA3-ER32-53MTA3-ER40-78MTA4-ER32-60MTA4-ER40-80MTA5-ER40-80MTB2-ER16-40MTB2-ER20-45MTB2-ER25-47MTB3-ER16-40MTB3-ER32-70MTB3-ER40-80MTB4-ER32-60MTB4-ER40-82MTB5-ER40-82NT30-ER16-76NT30-ER32-55NT30-ER40-85NT40-ER16-100NT40-ER16-76NT40-ER20-100NT40-ER20-76NT40-ER32-50NT40-ER40-55NT50-ER16-100NT50-ER16-150NT50-ER20-100NT50-ER20-150NT50-ER32-58NT50-ER40-58

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

ER Collet Chuck - NT30/NT40/NT50 Taper Shank

NT-ER · Taiwan

nt_er_dimensions (mm)
model_no	L	D	collet_type	draw_bar
NT30-ER16-76	76	28	ER16	M12 x 1.75 P / 1/2" - 12 / 1/2" - 13UN
NT30-ER32-55	55	50	ER32	M12 x 1.75 P / 1/2" - 12 / 1/2" - 13UN
NT30-ER40-85	85	63	ER40	M12 x 1.75 P / 1/2" - 12 / 1/2" - 13UN
NT40-ER16-76	76	28	ER16	M16 x 2.0 P / 5/8" - 11
NT40-ER16-100	100	28	ER16	M16 x 2.0 P / 5/8" - 11
NT40-ER20-76	76	34	ER20	M16 x 2.0 P / 5/8" - 11
NT40-ER20-100	100	34	ER20	M16 x 2.0 P / 5/8" - 11
NT40-ER32-50	50	50	ER32	M16 x 2.0 P / 5/8" - 11
NT40-ER40-55	55	63	ER40	M16 x 2.0 P / 5/8" - 11
NT50-ER16-100	100	28	ER16	M24 x 3.0 P / 1" - 8
NT50-ER16-150	150	28	ER16	M24 x 3.0 P / 1" - 8
NT50-ER20-100	100	34	ER20	M24 x 3.0 P / 1" - 8
NT50-ER20-150	150	34	ER20	M24 x 3.0 P / 1" - 8
NT50-ER32-58	58	50	ER32	M24 x 3.0 P / 1" - 8
NT50-ER40-58	58	63	ER40	M24 x 3.0 P / 1" - 8

Order references
Code	Model
on request	NT30-ER16-76
on request	NT30-ER32-55
on request	NT30-ER40-85
on request	NT40-ER16-76
on request	NT40-ER16-100
on request	NT40-ER20-76
on request	NT40-ER20-100
on request	NT40-ER32-50
on request	NT40-ER40-55
on request	NT50-ER16-100
on request	NT50-ER16-150
on request	NT50-ER20-100
on request	NT50-ER20-150
on request	NT50-ER32-58
on request	NT50-ER40-58

NT SHANK with ER COLLET CHUCK. When ordering, please specify the draw bolt for inch size or metric size. Wrench not included. Related items: Nut (P60), Wrench (P60), ER Collet (P58).

ER Collet Chuck - MTB2/MTB3/MTB4/MTB5 - Morse Taper Shank

MTB-ER · Taiwan

mtb_er_dimensions (mm)
model_no	L	D	collet_type	draw_bar
MTB2-ER16-40	40	28	ER16	M10 x 1.5 P / 3/8" - 16
MTB2-ER20-45	45	34	ER20	M10 x 1.5 P / 3/8" - 16
MTB2-ER25-47	47	42	ER25	M10 x 1.5 P / 3/8" - 16
MTB3-ER16-40	40	28	ER16	M12 x 1.75 P / M10 x 1.5 P / 1/2" - 12 / 3/8" -16
MTB3-ER32-70	70	50	ER32	M12 x 1.75 P / M10 x 1.5 P / 1/2" - 12 / 3/8" -16
MTB3-ER40-80	80	63	ER40	M12 x 1.75 P / M10 x 1.5 P / 1/2" - 12 / 3/8" -16
MTB4-ER32-60	60	50	ER32	M16 x 2.0 P / 5/8" - 11
MTB4-ER40-82	82	63	ER40	M16 x 2.0 P / 5/8" - 11
MTB5-ER40-82	82	63	ER40	M24x3.0 P / 1" -8

Order references
Code	Model
on request	MTB2-ER16-40
on request	MTB2-ER20-45
on request	MTB2-ER25-47
on request	MTB3-ER16-40
on request	MTB3-ER32-70
on request	MTB3-ER40-80
on request	MTB4-ER32-60
on request	MTB4-ER40-82
on request	MTB5-ER40-82

Your choice - draw bolt or tang. Wrench not included. Related items: Nut (P60), Wrench (P60), ER Collet (P58).

Morse Taper Shank - Tang Type

MTA-ER · Taiwan

mta_er_dimensions (mm)
model_no	L	D	collet_type	weight_kg
MTA2-ER16-32	32	28	ER16	0.2
MTA2-ER20-48	48	34	ER20	0.5
MTA2-ER25-51	51	42	ER25	0.7
MTA3-ER16-40	40	28	ER16	0.4
MTA3-ER32-53	53	50	ER32	0.8
MTA3-ER40-78	78	63	ER40	1.3
MTA4-ER32-60	60	50	ER32	1.3
MTA4-ER40-80	80	63	ER40	1.7
MTA5-ER40-80	80	63	ER40	2.9

Order references
Code	Model
on request	MTA2-ER16-32
on request	MTA2-ER20-48
on request	MTA2-ER25-51
on request	MTA3-ER16-40
on request	MTA3-ER32-53
on request	MTA3-ER40-78
on request	MTA4-ER32-60
on request	MTA4-ER40-80
on request	MTA5-ER40-80

Wrench must be ordered separately.
