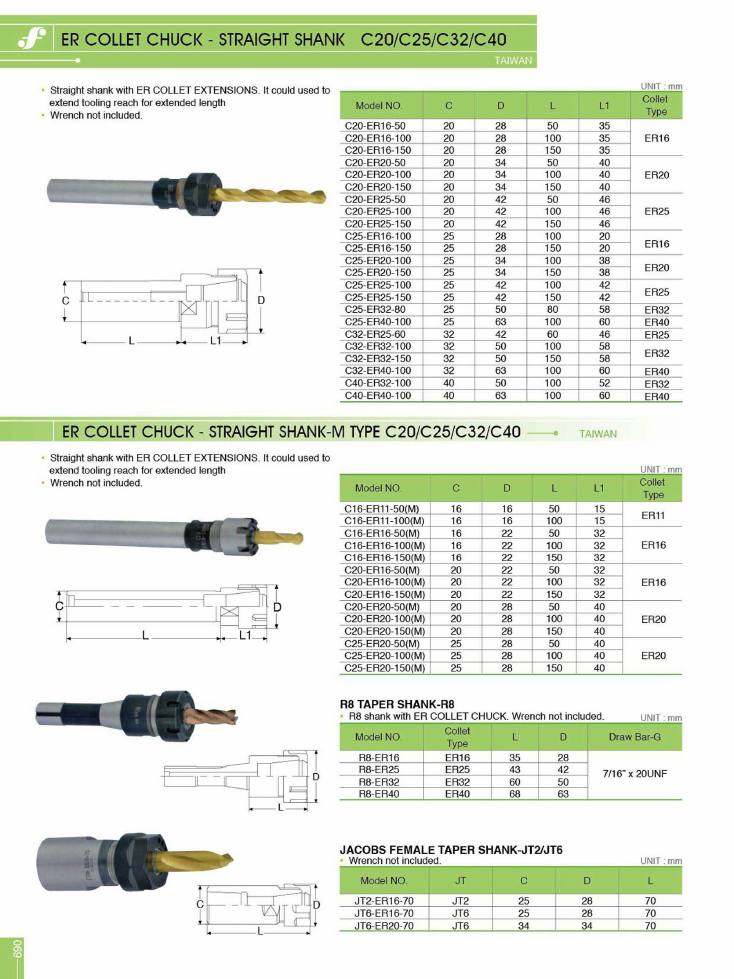

Source Frejoth catalogue page 69 — ER collet chuck - straight shank

Open full-size source page

Frejoth accessory catalogue · Page 69

ER collet chuck - straight shank

Models on this page

C16-ER11-100(M)C16-ER11-50(M)C16-ER16-100(M)C16-ER16-150(M)C16-ER16-50(M)C20-ER16-100C20-ER16-100(M)C20-ER16-150C20-ER16-150(M)C20-ER16-50C20-ER16-50(M)C20-ER20-100C20-ER20-100(M)C20-ER20-150C20-ER20-150(M)C20-ER20-50C20-ER20-50(M)C20-ER25-100C20-ER25-150C20-ER25-50C25-ER16-100C25-ER16-150C25-ER20-100C25-ER20-100(M)C25-ER20-150C25-ER20-150(M)C25-ER20-50(M)C25-ER25-100C25-ER25-150C25-ER32-80C25-ER40-100C32-ER25-60C32-ER32-100C32-ER32-150C32-ER40-100C40-ER32-100C40-ER40-100JT2-ER16-70JT6-ER16-70JT6-ER20-70R8-ER16R8-ER25R8-ER32R8-ER40

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

ER Collet Chuck - Straight Shank C20/C25/C32/C40

C20/C25/C32/C40 · Taiwan

Straight shank with ER COLLET EXTENSIONS. It could be used to extend tooling reach for extended length
Wrench not included.

dimensions (mm)
model_no	c	d	l	l1	collet_type
C20-ER16-50	20	28	50	35	ER16
C20-ER16-100	20	28	100	35	ER16
C20-ER16-150	20	28	150	35	ER16
C20-ER20-50	20	34	50	40	ER20
C20-ER20-100	20	34	100	40	ER20
C20-ER20-150	20	34	150	40	ER20
C20-ER25-50	20	42	50	46	ER25
C20-ER25-100	20	42	100	46	ER25
C20-ER25-150	20	42	150	46	ER25
C25-ER16-100	25	28	100	20	ER16
C25-ER16-150	25	28	150	20	ER16
C25-ER20-100	25	34	100	38	ER20
C25-ER20-150	25	34	150	38	ER20
C25-ER25-100	25	42	100	42	ER25
C25-ER25-150	25	42	150	42	ER25
C25-ER32-80	25	50	80	58	ER32
C25-ER40-100	25	63	100	60	ER40
C32-ER25-60	32	42	60	46	ER25
C32-ER32-100	32	50	100	58	ER32
C32-ER32-150	32	50	150	58	ER32
C32-ER40-100	32	63	100	60	ER40
C40-ER32-100	40	50	100	52	ER32
C40-ER40-100	40	63	100	60	ER40

Order references
Code	Model
on request	C20-ER16-50
on request	C20-ER16-100
on request	C20-ER16-150
on request	C20-ER20-50
on request	C20-ER20-100
on request	C20-ER20-150
on request	C20-ER25-50
on request	C20-ER25-100
on request	C20-ER25-150
on request	C25-ER16-100
on request	C25-ER16-150
on request	C25-ER20-100
on request	C25-ER20-150
on request	C25-ER25-100
on request	C25-ER25-150
on request	C25-ER32-80
on request	C25-ER40-100
on request	C32-ER25-60
on request	C32-ER32-100
on request	C32-ER32-150
on request	C32-ER40-100
on request	C40-ER32-100
on request	C40-ER40-100

ER Collet Chuck - Straight Shank-M Type C20/C25/C32/C40

C16/C20/C25 (M type) · Taiwan

Straight shank with ER COLLET EXTENSIONS. It could be used to extend tooling reach for extended length
Wrench not included.

dimensions (mm)
model_no	c	d	l	l1	collet_type
C16-ER11-50(M)	16	16	50	15	ER11
C16-ER11-100(M)	16	16	100	15	ER11
C16-ER16-50(M)	16	22	50	32	ER16
C16-ER16-100(M)	16	22	100	32	ER16
C16-ER16-150(M)	16	22	150	32	ER16
C20-ER16-50(M)	20	22	50	32	ER16
C20-ER16-100(M)	20	22	100	32	ER16
C20-ER16-150(M)	20	22	150	32	ER16
C20-ER20-50(M)	20	28	50	40	ER20
C20-ER20-100(M)	20	28	100	40	ER20
C20-ER20-150(M)	20	28	150	40	ER20
C25-ER20-50(M)	25	28	50	40	ER20
C25-ER20-100(M)	25	28	100	40	ER20
C25-ER20-150(M)	25	28	150	40	ER20

Order references
Code	Model
on request	C16-ER11-50(M)
on request	C16-ER11-100(M)
on request	C16-ER16-50(M)
on request	C16-ER16-100(M)
on request	C16-ER16-150(M)
on request	C20-ER16-50(M)
on request	C20-ER16-100(M)
on request	C20-ER16-150(M)
on request	C20-ER20-50(M)
on request	C20-ER20-100(M)
on request	C20-ER20-150(M)
on request	C25-ER20-50(M)
on request	C25-ER20-100(M)
on request	C25-ER20-150(M)

R8 Taper Shank-R8

R8

R8 shank with ER COLLET CHUCK. Wrench not included.

dimensions (mm)
model_no	collet_type	l	d	draw_bar_g
R8-ER16	ER16	35	28	7/16" x 20UNF
R8-ER25	ER25	43	42	7/16" x 20UNF
R8-ER32	ER32	60	50	7/16" x 20UNF
R8-ER40	ER40	68	63	7/16" x 20UNF

Order references
Code	Model
on request	R8-ER16
on request	R8-ER25
on request	R8-ER32
on request	R8-ER40

Jacobs Female Taper Shank-JT2/JT6

JT2/JT6

Wrench not included.

dimensions (mm)
model_no	jt	c	d	l
JT2-ER16-70	JT2	25	28	70
JT6-ER16-70	JT6	25	28	70
JT6-ER20-70	JT6	34	34	70

Order references
Code	Model
on request	JT2-ER16-70
on request	JT6-ER16-70
on request	JT6-ER20-70
