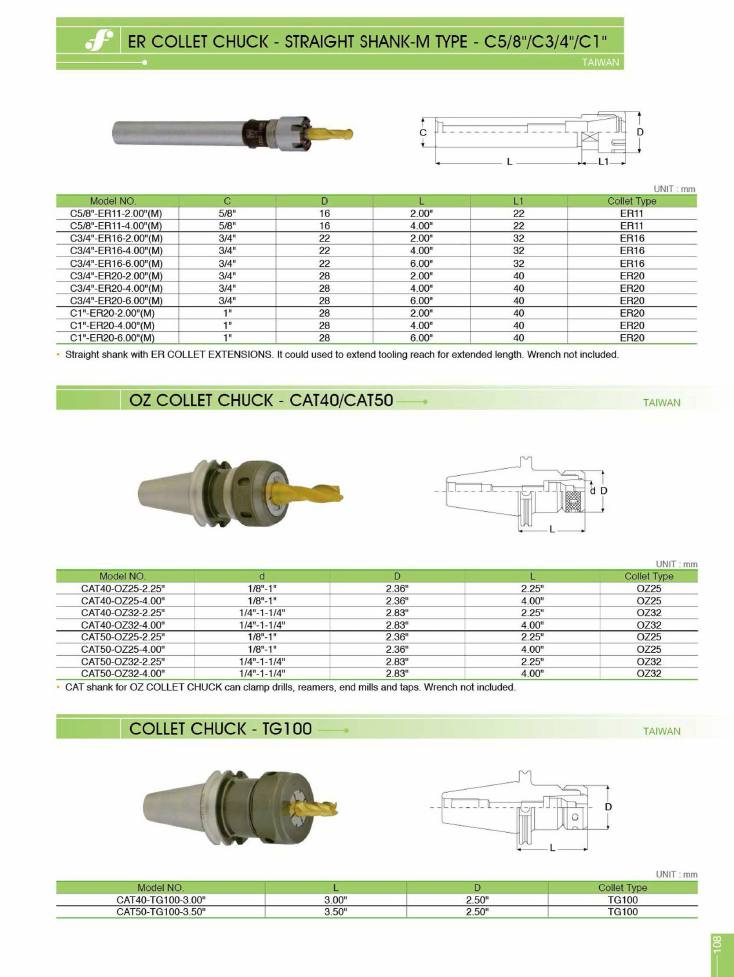

Frejoth accessory catalogue · Page 108
ER Collet Chuck - Straight Shank-M Type - C5/8"/C3/4"/C1"
Models on this page
C1"-ER20-2.00"(M)C1"-ER20-4.00"(M)C1"-ER20-6.00"(M)C3/4"-ER16-2.00"(M)C3/4"-ER16-4.00"(M)C3/4"-ER16-6.00"(M)C3/4"-ER20-2.00"(M)C3/4"-ER20-4.00"(M)C3/4"-ER20-6.00"(M)C5/8"-ER11-2.00"(M)C5/8"-ER11-4.00"(M)CAT40-OZ25-2.25"CAT40-OZ25-4.00"CAT40-OZ32-2.25"CAT40-OZ32-4.00"CAT40-TG100-3.00"CAT50-OZ25-2.25"CAT50-OZ25-4.00"CAT50-OZ32-2.25"CAT50-OZ32-4.00"CAT50-TG100-3.50"
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
ER Collet Chuck - Straight Shank-M Type - C5/8"/C3/4"/C1"
ER Collet Chuck · Taiwan
- Straight shank with ER COLLET EXTENSIONS. It could used to extend tooling reach for extended length. Wrench not included.
| model_no | c | d | l | l1 | collet_type |
|---|---|---|---|---|---|
| C5/8"-ER11-2.00"(M) | 5/8" | 16 | 2.00" | 22 | ER11 |
| C5/8"-ER11-4.00"(M) | 5/8" | 16 | 4.00" | 22 | ER11 |
| C3/4"-ER16-2.00"(M) | 3/4" | 22 | 2.00" | 32 | ER16 |
| C3/4"-ER16-4.00"(M) | 3/4" | 22 | 4.00" | 32 | ER16 |
| C3/4"-ER16-6.00"(M) | 3/4" | 22 | 6.00" | 32 | ER16 |
| C3/4"-ER20-2.00"(M) | 3/4" | 28 | 2.00" | 40 | ER20 |
| C3/4"-ER20-4.00"(M) | 3/4" | 28 | 4.00" | 40 | ER20 |
| C3/4"-ER20-6.00"(M) | 3/4" | 28 | 6.00" | 40 | ER20 |
| C1"-ER20-2.00"(M) | 1" | 28 | 2.00" | 40 | ER20 |
| C1"-ER20-4.00"(M) | 1" | 28 | 4.00" | 40 | ER20 |
| C1"-ER20-6.00"(M) | 1" | 28 | 6.00" | 40 | ER20 |
| Code | Model |
|---|---|
| on request | C5/8"-ER11-2.00"(M) |
| on request | C5/8"-ER11-4.00"(M) |
| on request | C3/4"-ER16-2.00"(M) |
| on request | C3/4"-ER16-4.00"(M) |
| on request | C3/4"-ER16-6.00"(M) |
| on request | C3/4"-ER20-2.00"(M) |
| on request | C3/4"-ER20-4.00"(M) |
| on request | C3/4"-ER20-6.00"(M) |
| on request | C1"-ER20-2.00"(M) |
| on request | C1"-ER20-4.00"(M) |
| on request | C1"-ER20-6.00"(M) |
OZ Collet Chuck - CAT40/CAT50
OZ Collet Chuck · Taiwan
- CAT shank for OZ COLLET CHUCK can clamp drills, reamers, end mills and taps. Wrench not included.
| model_no | d_lower | d_upper | l | collet_type |
|---|---|---|---|---|
| CAT40-OZ25-2.25" | 1/8"-1" | 2.36" | 2.25" | OZ25 |
| CAT40-OZ25-4.00" | 1/8"-1" | 2.36" | 4.00" | OZ25 |
| CAT40-OZ32-2.25" | 1/4"-1-1/4" | 2.83" | 2.25" | OZ32 |
| CAT40-OZ32-4.00" | 1/4"-1-1/4" | 2.83" | 4.00" | OZ32 |
| CAT50-OZ25-2.25" | 1/8"-1" | 2.36" | 2.25" | OZ25 |
| CAT50-OZ25-4.00" | 1/8"-1" | 2.36" | 4.00" | OZ25 |
| CAT50-OZ32-2.25" | 1/4"-1-1/4" | 2.83" | 2.25" | OZ32 |
| CAT50-OZ32-4.00" | 1/4"-1-1/4" | 2.83" | 4.00" | OZ32 |
| Code | Model |
|---|---|
| on request | CAT40-OZ25-2.25" |
| on request | CAT40-OZ25-4.00" |
| on request | CAT40-OZ32-2.25" |
| on request | CAT40-OZ32-4.00" |
| on request | CAT50-OZ25-2.25" |
| on request | CAT50-OZ25-4.00" |
| on request | CAT50-OZ32-2.25" |
| on request | CAT50-OZ32-4.00" |
Collet Chuck - TG100
TG100 · Taiwan
| model_no | l | d | collet_type |
|---|---|---|---|
| CAT40-TG100-3.00" | 3.00" | 2.50" | TG100 |
| CAT50-TG100-3.50" | 3.50" | 2.50" | TG100 |
| Code | Model |
|---|---|
| on request | CAT40-TG100-3.00" |
| on request | CAT50-TG100-3.50" |
