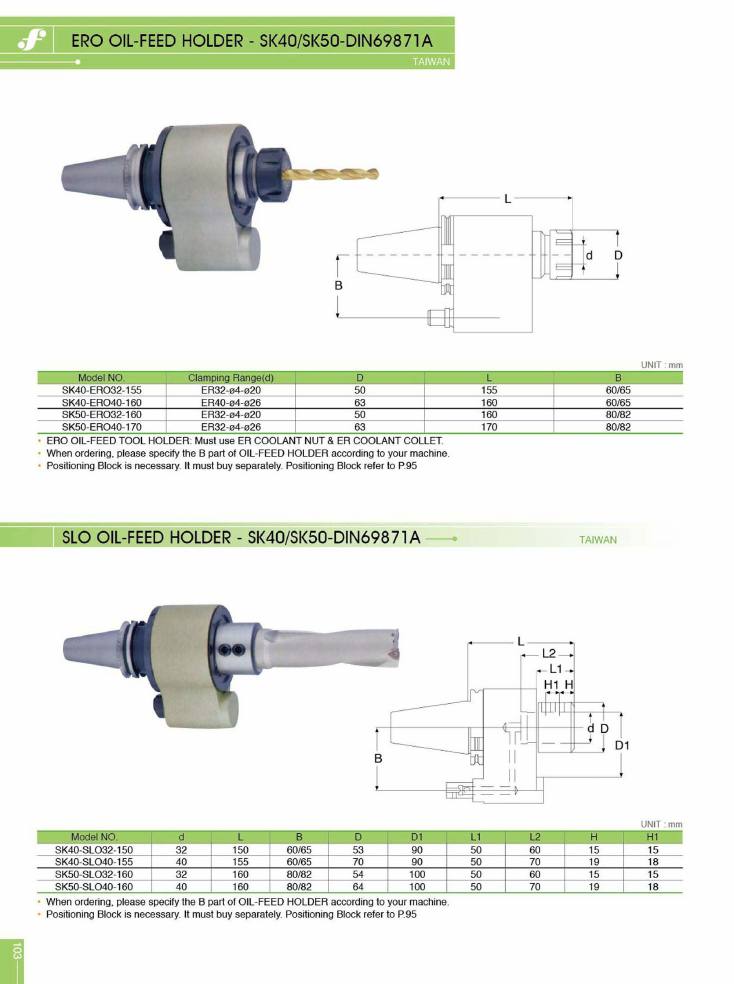

Frejoth accessory catalogue · Page 103
ERO oil-feed holder / SLO oil-feed holder - SK40/SK50-DIN69871A
Models on this page
SK40-ERO32-155SK40-ERO40-160SK40-SLO32-150SK40-SLO40-155SK50-ERO32-160SK50-ERO40-170SK50-SLO32-160SK50-SLO40-160
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
ERO Oil-Feed Holder - SK40/SK50-DIN69871A
ERO · Taiwan
- ERO OIL-FEED TOOL HOLDER: Must use ER COOLANT NUT & ER COOLANT COLLET.
- When ordering, please specify the B part of OIL-FEED HOLDER according to your machine.
- Positioning Block is necessary. It must be bought separately. Positioning Block refer to P.95
| model_no | clamping_range_d | d | l | b |
|---|---|---|---|---|
| SK40-ERO32-155 | ER32-ø4-ø20 | 50 | 155 | 60/65 |
| SK40-ERO40-160 | ER40-ø4-ø26 | 63 | 160 | 60/65 |
| SK50-ERO32-160 | ER32-ø4-ø20 | 50 | 160 | 80/82 |
| SK50-ERO40-170 | ER32-ø4-ø26 | 63 | 170 | 80/82 |
| Code | Model |
|---|---|
| on request | SK40-ERO32-155 |
| on request | SK40-ERO40-160 |
| on request | SK50-ERO32-160 |
| on request | SK50-ERO40-170 |
SLO Oil-Feed Holder - SK40/SK50-DIN69871A
SLO · Taiwan
- When ordering, please specify the B part of OIL-FEED HOLDER according to your machine.
- Positioning Block is necessary. It must be bought separately. Positioning Block refer to P.95
| model_no | d | l | b | d_outer | d1 | l1 | l2 | h | h1 |
|---|---|---|---|---|---|---|---|---|---|
| SK40-SLO32-150 | 32 | 150 | 60/65 | 53 | 90 | 50 | 60 | 15 | 15 |
| SK40-SLO40-155 | 40 | 155 | 60/65 | 70 | 90 | 50 | 70 | 19 | 18 |
| SK50-SLO32-160 | 32 | 160 | 80/82 | 54 | 100 | 50 | 60 | 15 | 15 |
| SK50-SLO40-160 | 40 | 160 | 80/82 | 64 | 100 | 50 | 70 | 19 | 18 |
| Code | Model |
|---|---|
| on request | SK40-SLO32-150 |
| on request | SK40-SLO40-155 |
| on request | SK50-SLO32-160 |
| on request | SK50-SLO40-160 |
